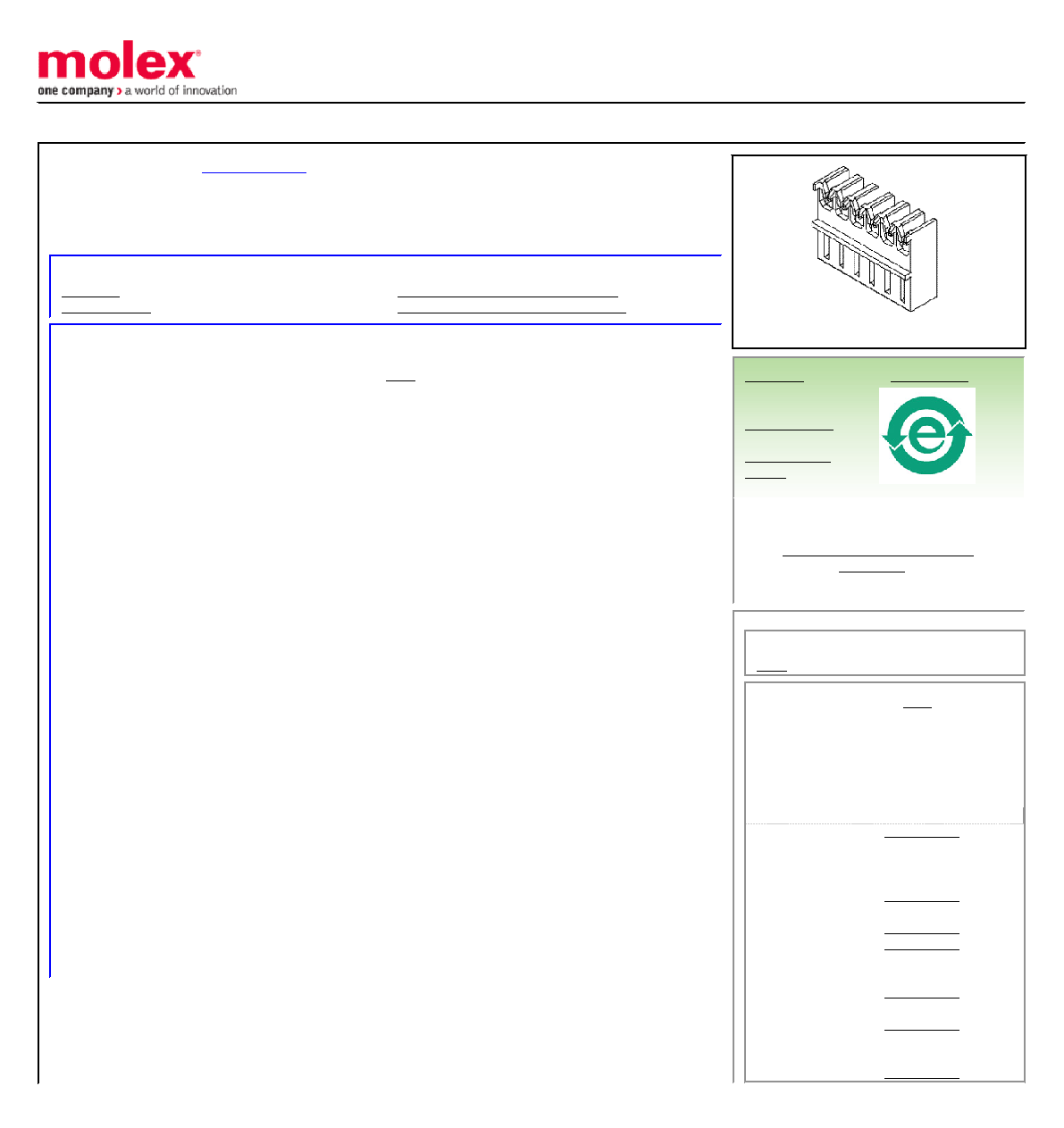

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.96mm (.156") KK IDT Trifurcon Contact, 6 Circuits, Tin (Sn), Feed-Through, 18
Solid or Fused Stranded, Yellow ID Strip
Documents:
General
Product Family
IDT and Solder Connectors
Series
Comments
Trifurcon contact
Overview
KK®
Product Name
KK
Product Name
Trifurcon
Physical
Circuits (Loaded)
6
Color - Resin
Natural
Gender
Female
Glow-Wire Compliant
No
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Nylon
Number of Rows
1
Packaging Type
Bag
Panel Mount
No
Pitch - Mating Interface (in)
0.156 In
Pitch - Mating Interface (mm)
3.96 mm
Plating min: Mating (in)
200
Plating min: Mating (m)
5
Plating min: Termination (in)
200
Plating min: Termination (m)
5
Temperature Range - Operating
0°C to +75°C
Termination Interface: Style
IDT or Pierce
Wire Size AWG
18 Solid
Wire Size AWG
18 Stranded Topcoat
Electrical
Voltage - Maximum
250V
Material Info
Old Part Number
A-7674-B06A102A
Reference - Drawing Numbers
Product Specification
PS-7660
Sales Drawing
SDA-7674-*
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
7674 Series
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Insertion Tool for
3.96mm (.156") Pitch
KK IDT Crimp
Terminals
IDT - Manual -
Handtool
IDT Manual Handtool0621000400
IDT - Semi-automatic
- Bench-Top
Terminator
IDT - Manual Press
For Ribbon Cable
IDT - Semi-automatic
- Bench-Top
Terminator
Arbor Press Fixture 0690200770
