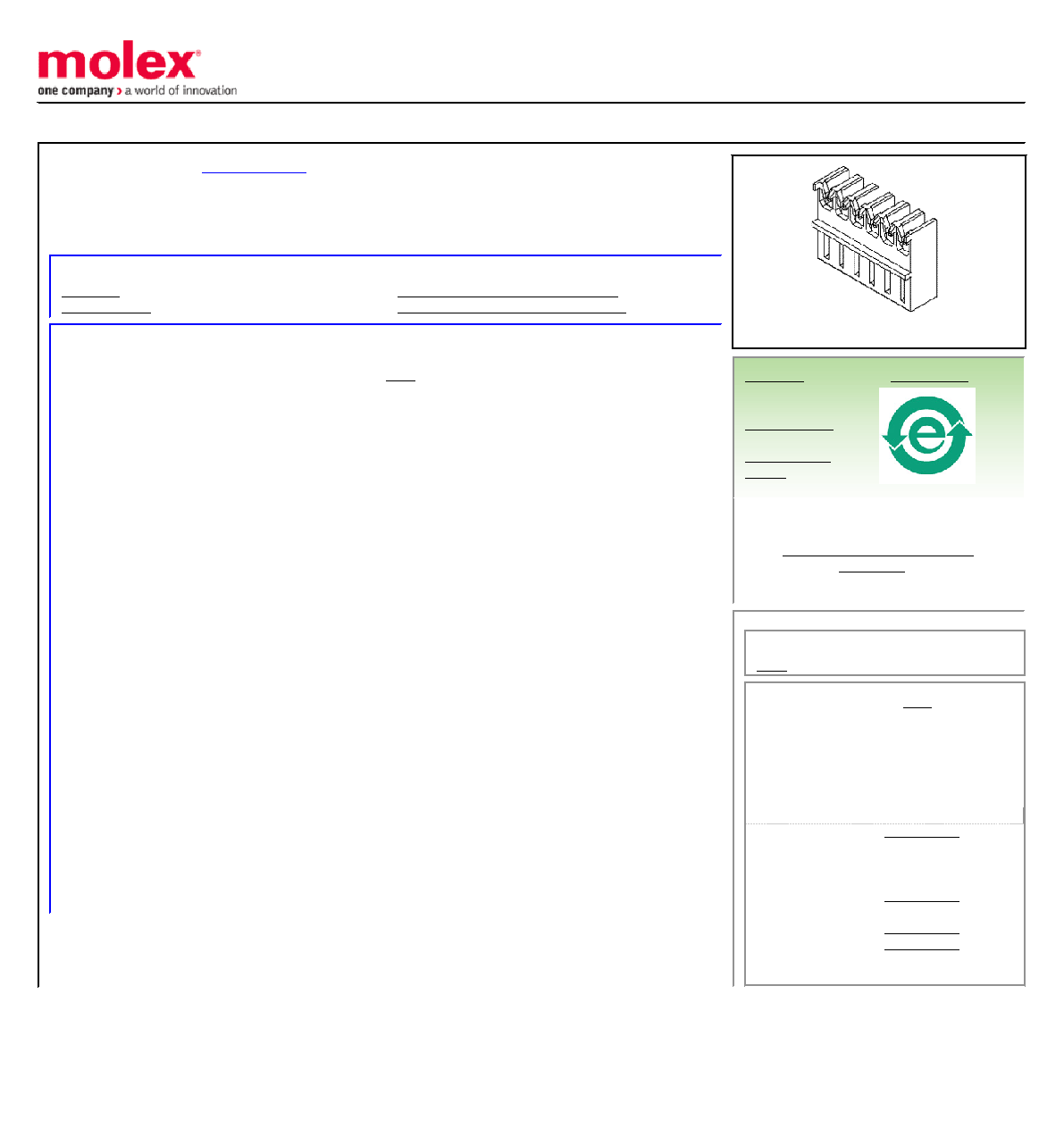

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.96mm (.156") KK IDT Double Cantilever Contact, 10 Circuits, Tin (Sn), Feed-To, 24
and 22 Solid or Fused Stranded, and 22 Stranded, Black ID Str
Documents:
General
Product Family
IDT and Solder Connectors
Series
Comments
Double Cantilever contact
Overview
KK®
Product Name
KK
Physical
Circuits (Loaded)
10
Color - Resin
Natural
Gender
Female
Glow-Wire Compliant
No
Lock to Mating Part
None
Material - Metal
Brass
Material - Resin
Nylon
Number of Rows
1
Packaging Type
Bag
Panel Mount
No
Pitch - Mating Interface (in)
0.156 In
Pitch - Mating Interface (mm)
3.96 mm
Temperature Range - Operating
0°C to +75°C
Termination Interface: Style
IDT or Pierce
Wire Size AWG
22 Solid
Wire Size AWG
22 Stranded
Wire Size AWG
22 Stranded Topcoat
Wire Size AWG
24 Solid
Wire Size AWG
24 Stranded Topcoat
Electrical
Voltage - Maximum
250V
Material Info
Old Part Number
A-7675-C10J
Reference - Drawing Numbers
Product Specification
PS-7660
Sales Drawing
SDA-7675-****
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
7675 Series
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Insertion Tool for
3.96mm (.156") Pitch
KK IDT Crimp
Terminals
IDT - Manual -
Handtool
IDT Manual Handtool0621000400
IDT - Semi-automatic
- Bench-Top
Terminator
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
