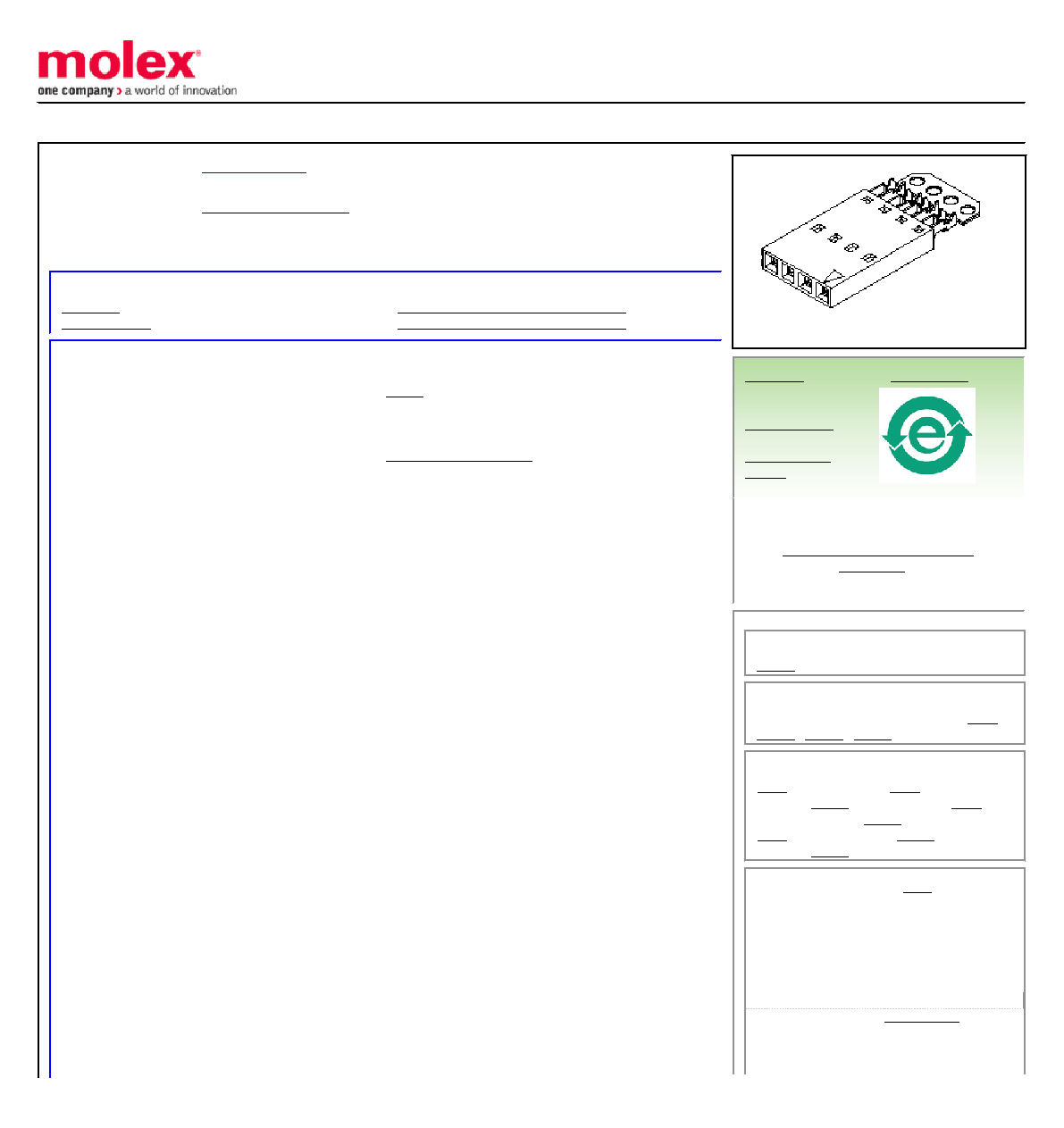

This document was generated on 12/07/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.54mm (.100") Pitch SL Insulation Displacement Connector Assembly, Female,
Single Row, Version A, Nonpolarized, Wire Size 28, 3.81m (150") Tin/Lead (SnPb), 6
Circuits
Documents:
General
Product Family
Ribbon Cable / Wire Trap Connectors
Series
Comments
Terminals Preloaded
Component Type
Housing
Glow-Wire Compliant
No
Overview
Product Name
SL
Physical
Circuits (Loaded)
6
Color - Resin
Black
Durability (mating cycles max)
25
Entry Angle
Vertical
Flammability
94V-0
Lock to Mating Part
None
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Polyester Alloy
Number of Rows
1
PCB Retention
None
Packaging Type
Tube
Pitch - Mating Interface (in)
0.100 In
Pitch - Mating Interface (mm)
2.54 mm
Plating min: Mating (in)
150
Plating min: Mating (m)
3.75
Plating min: Termination (in)
75
Plating min: Termination (m)
1.875
Polarized to Mating Part
No
Stackable
Yes
Surface Mount Compatible (SMC)
N/A
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
IDT or Pierce
Wire Insulation Diameter
1.35mm (.053") max.
Wire Size AWG
28
Wire/Cable Type
Discrete Wire
Wire/Cable Type
Ribbon Cable
Electrical
CSA
LR19980
Current - Maximum
3A
UL
E29179
Voltage - Maximum
250V
Material Info
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
70400 Series
Mates With
Single Row headers and housings, 8624 ,
Use With
Topcoat 26AWG, 24226 Tinned 24AWG,
26AWG, 24389 High Flex 24AWG
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hawk Semi-
Automatic Discrete
Wire Terminator for
SL
