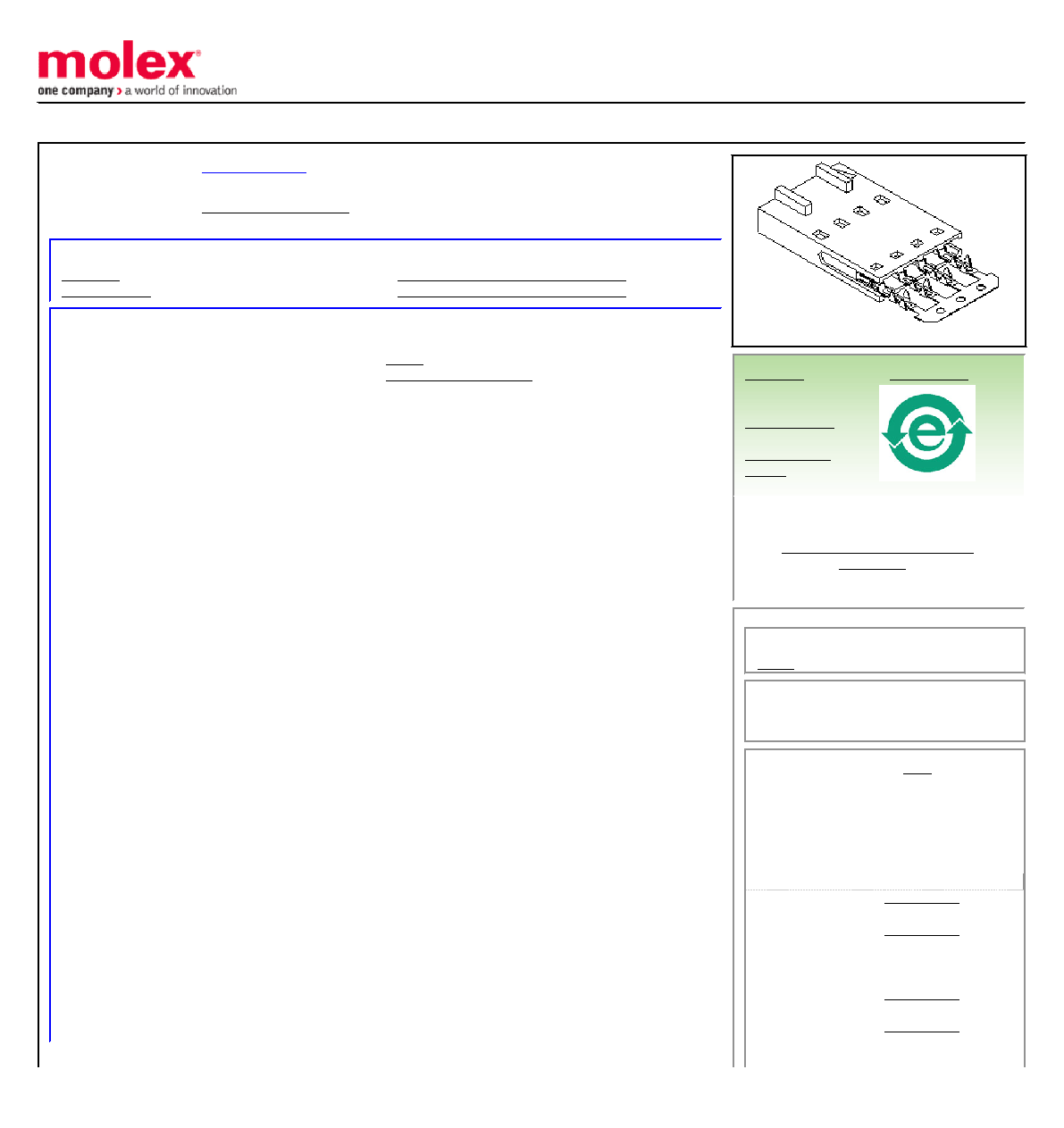

This document was generated on 12/07/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.54mm (.100") C-Grid SL Single Row, Female, Version C Receptacle, 2 Circuits
Documents:
General
Product Family
FFC/FPC Connectors
Series
Overview
Product Name
SL
Physical
Circuits (Loaded)
2
Color - Resin
Black
Contact Position
N/A
Durability (mating cycles max)
50
Entry Angle
Vertical
Flammability
94V-0
Material - Metal
Phosphor Bronze
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
Polyester Alloy
Number of Rows
1
Orientation
Vertical
PCB Retention
None
Packaging Type
Tube
Pitch - Mating Interface (in)
0.100 In
Pitch - Mating Interface (mm)
2.54 mm
Plating min: Mating (in)
15
Plating min: Mating (m)
0.375
Plating min: Termination (in)
75
Plating min: Termination (m)
1.875
Polarized to PCB
No
Stackable
Yes
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
IDT or Pierce
Wire/Cable Type
FFC/FPC
Electrical
CSA
LR19880
Current - Maximum
1A
Current - Maximum
2A
UL
E29179
Voltage - Maximum
250V
Material Info
Old Part Number
70430-0211
Reference - Drawing Numbers
Product Specification
PS-70430
Sales Drawing
SDA-70430-0211-0234
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
70430 Series
Mates With
70544, 70546 straight and 70554, 70556
right angle polarized headers
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
TM-42 FFC and
SL Termination Kit
TM-42 FFC and
SL Press and
Termination Kit for
110v applications
Standard Manual
Press for FFC
Manual Ribbon
Cable Cutter Hand
Tool
