| 型號： | 0022023103 |
| 廠商： | MOLEX INC |
| 元件分類： | SMT連接器& FFC/FPC |
| 英文描述： | 10 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SOLDER, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 28K |
| 代理商： | 0022023103 |

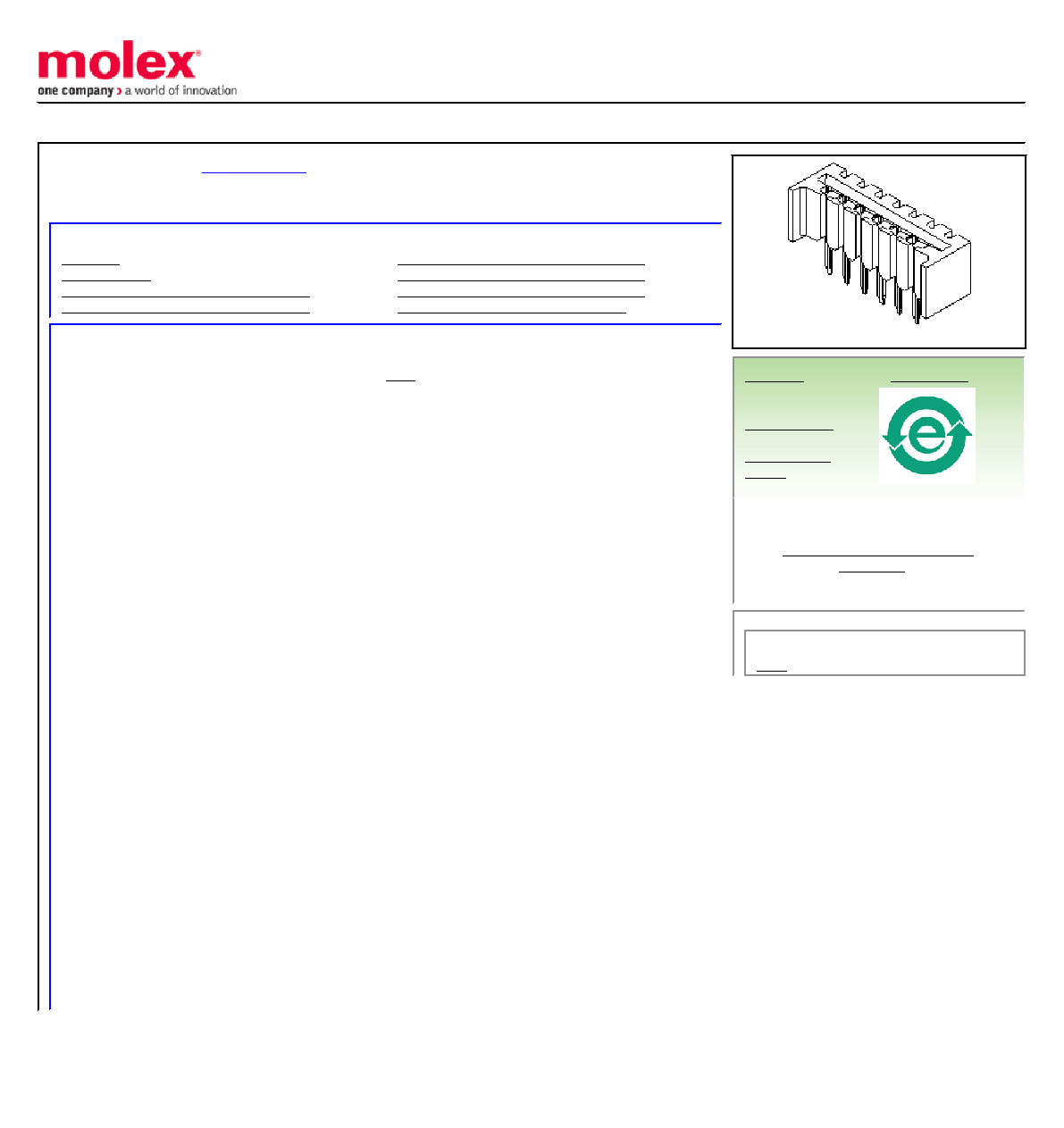

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
2.54mm (.100") Vertical, Non-ZIF, Low Profile Receptacle, 10 Circuits
Documents:
General
Product Family
FFC/FPC Connectors
Series
Product Name
N/A
Physical
Circuits (Loaded)
10
Contact Position
N/A
Entry Angle
Vertical
Flammability
94V-0
Mated Height (in)
0.256 In
Mated Height (mm)
6.50 mm
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.142 In
PC Tail Length (mm)
3.60 mm
PCB Retention
None
Packaging Type
Tray
Pitch - Mating Interface (in)
0.100 In
Pitch - Mating Interface (mm)
2.54 mm
Polarized to PCB
No
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
Through Hole
Wire/Cable Type
FFC/FPC
Electrical
Current - Maximum
0.5A
Current - Maximum
1A
UL
E29179
Voltage - Maximum
200V
Material Info
Old Part Number
5229-10CPB
Reference - Drawing Numbers
Product Specification
PS-5229-001
Product Specification
PS-5229-002
Product Specification
PS-5229-005
Product Specification
PS-5229-006
Product Specification
PS-5229-007
Sales Drawing
SD-5229-NCPB
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5229 Series
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
