| 型號： | 0026614040 |
| 廠商： | MOLEX INC |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 32K |
| 代理商： | 0026614040 |

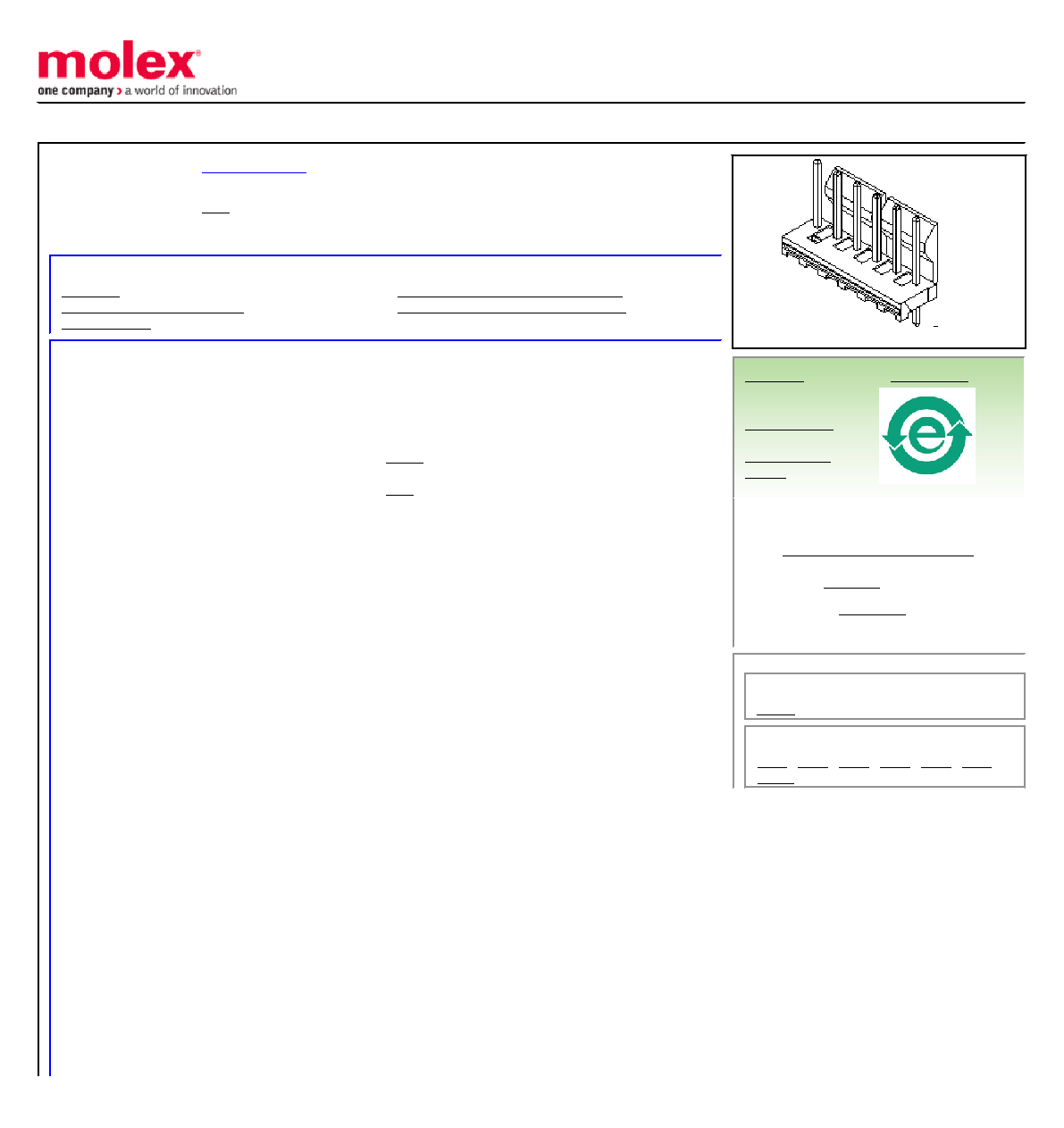

This document was generated on 03/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.96mm (.156") Pitch KK Solid Header, Vertical, Friction Lock, 4 Circuits, Gold (Au)
Plating
Documents:
Agency Certification
CSA
LR19980
UL
E29179
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Overview
Product Name
KK
Physical
Breakaway
No
Circuits (Loaded)
4
Circuits (maximum)
4
Color - Resin
Natural
Durability (mating cycles max)
50
Flammability
94V-0
Glow-Wire Compliant
No
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Gold
Material - Resin
Polyester
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.140 In
PC Tail Length (mm)
3.56 mm
PCB Locator
No
PCB Retention
None
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Bag
Pitch - Mating Interface (in)
0.156 In
Pitch - Mating Interface (mm)
3.96 mm
Plating min: Mating (in)
20
Plating min: Mating (m)
0.5
Plating min: Termination (in)
20
Plating min: Termination (m)
0.5
Polarized to Mating Part
Yes
Polarized to PCB
No
Shrouded
Partial
Stackable
Yes
Temperature Range - Operating
0°C to +75°C
Termination Interface: Style
Through Hole
Series
image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Halogen-Free
Need more information on product
environmental compliance?
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
41791Series
Mates With
41695 , L ink:41815
