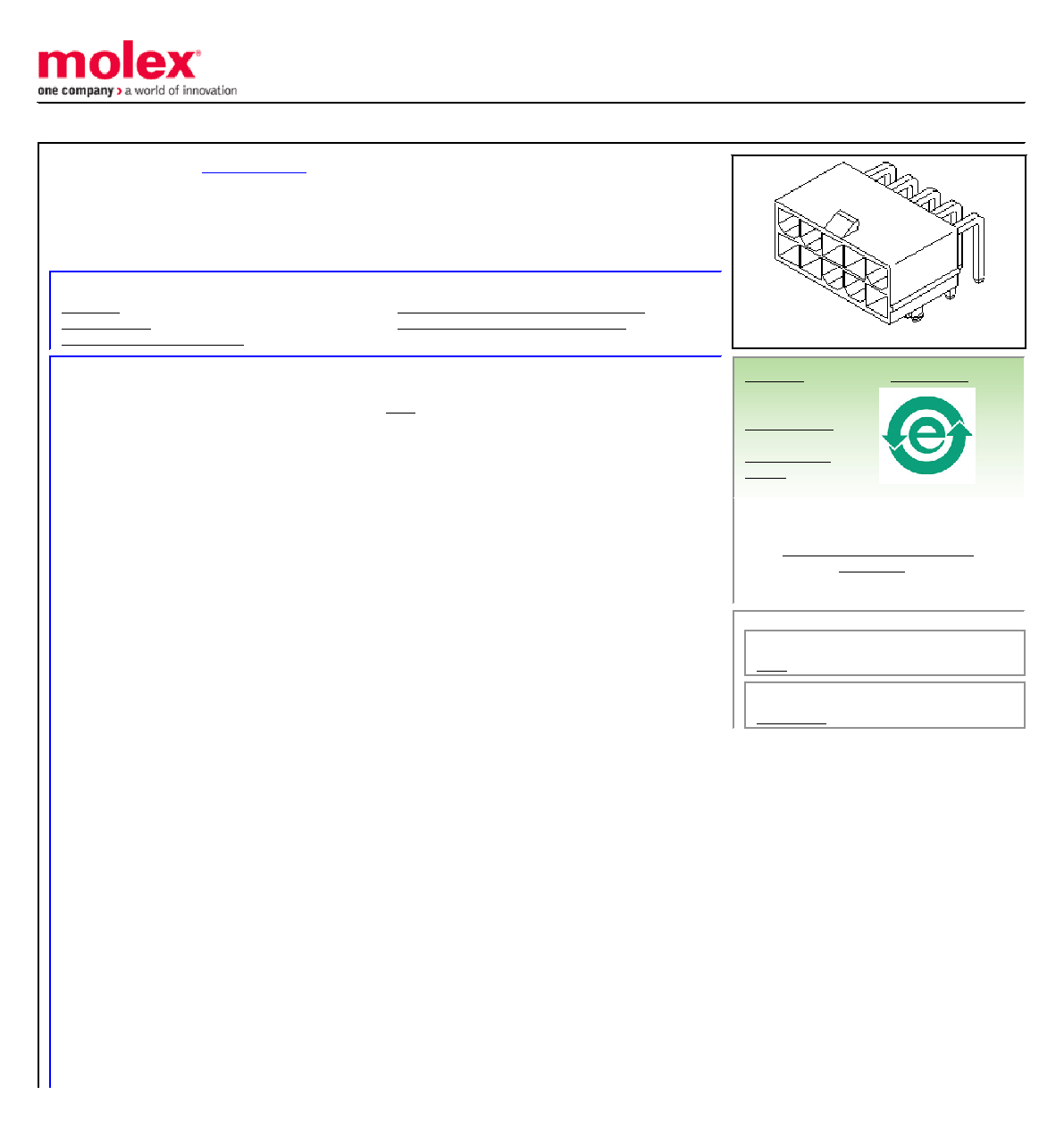

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
4.20mm (.165") Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with Snap-in Plastic
Peg PCB Lock, 14 Circuits, PA Polyamide Nylon 6/6, 94V-2, 0.76m (30") Gold (Au)
Selective Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Comments
See Molex Product specification PS-5556-001 for
additional current de-rating information.
Overview
Mini-Fit Jr.™
Product Name
Mini-Fit Jr.
Physical
Breakaway
No
Circuits (Loaded)
14
Circuits (maximum)
14
Circuits Detail
14
Color - Resin
Natural
Durability (mating cycles max)
30
First Mate / Last Break
No
Flammability
94V-2
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
Nylon
Number of Rows
2
Orientation
Right Angle
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.070 In
PCB Thickness Recommended (mm)
1.78 mm
Packaging Type
Bag
Pitch - Mating Interface (in)
0.165 In
Pitch - Mating Interface (mm)
4.20 mm
Pitch - Term. Interface (in)
0.165 In
Pitch - Term. Interface (mm)
4.20 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.76
Plating min: Termination (in)
100
Plating min: Termination (m)
2.50
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5569 Series
Mates With
39-01-2140 Receptacle
