| 型號： | 0039307086 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 8 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 30K |
| 代理商： | 0039307086 |

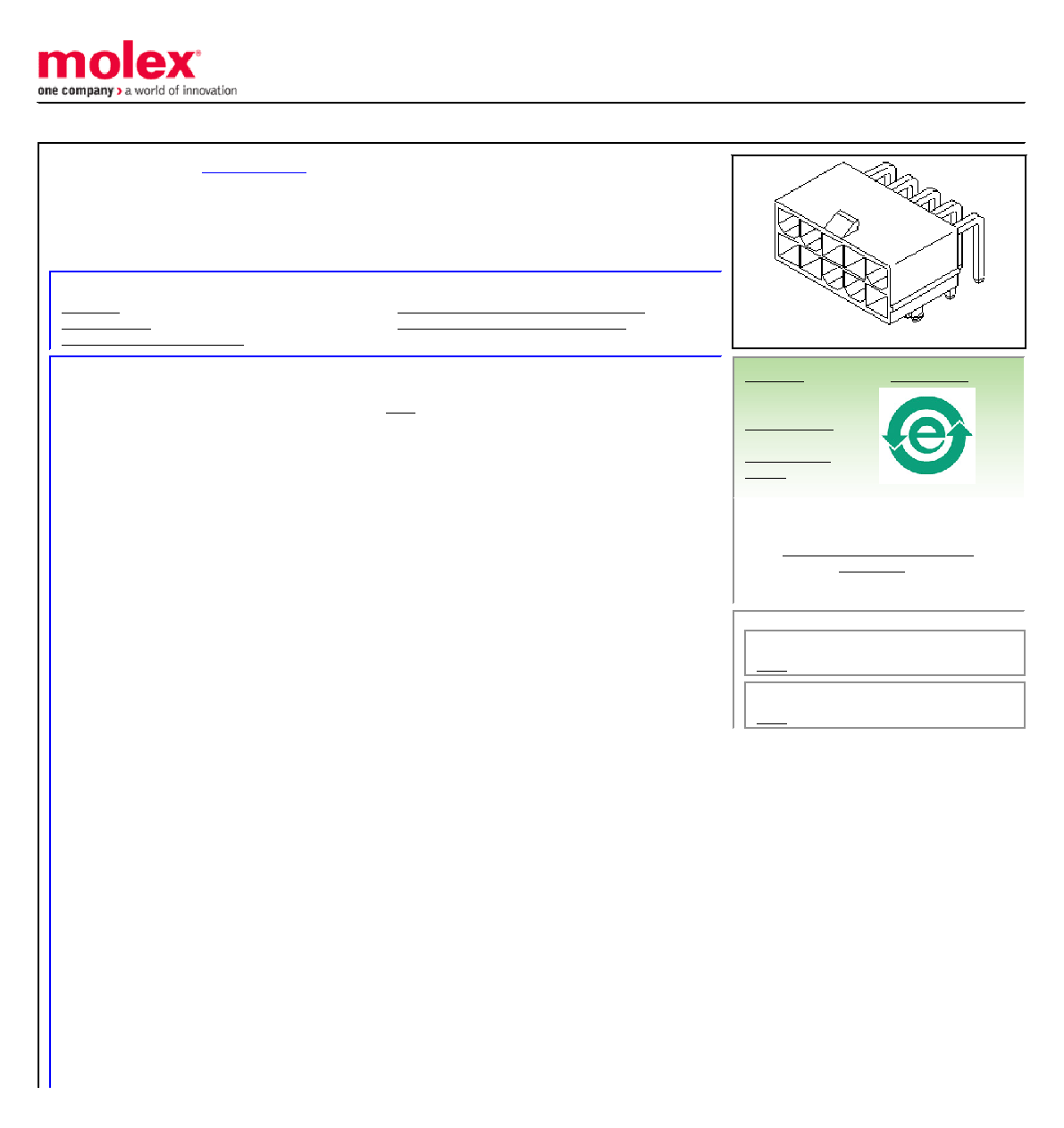

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
4.20mm (.165") Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with Snap-in Plastic
Peg PCB Lock, 8 Circuits, PA Polyamide Nylon 6/6, 94V-0, Tin (Sn) Over Nickel (Ni)
Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Comments
See Molex Product specification PS-5556-001 for
additional current de-rating information.
Overview
Mini-Fit Jr.™
Product Name
Mini-Fit Jr.
Physical
Breakaway
No
Circuits (Loaded)
8
Circuits (maximum)
8
Circuits Detail
8
Color - Resin
Natural
Durability (mating cycles max)
30
First Mate / Last Break
No
Flammability
94V-2
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Nickel
Material - Resin
Nylon
Number of Rows
2
Orientation
Right Angle
PC Tail Length (in)
0.138 In
PC Tail Length (mm)
3.50 mm
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.070 In
PCB Thickness Recommended (mm)
1.78 mm
Packaging Type
Bag
Pitch - Mating Interface (in)
0.165 In
Pitch - Mating Interface (mm)
4.20 mm
Pitch - Term. Interface (in)
0.165 In
Pitch - Term. Interface (mm)
4.20 mm
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +105°C
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5569 Series
Mates With
5557 Mini-Fit Jr. Receptacle Housing
