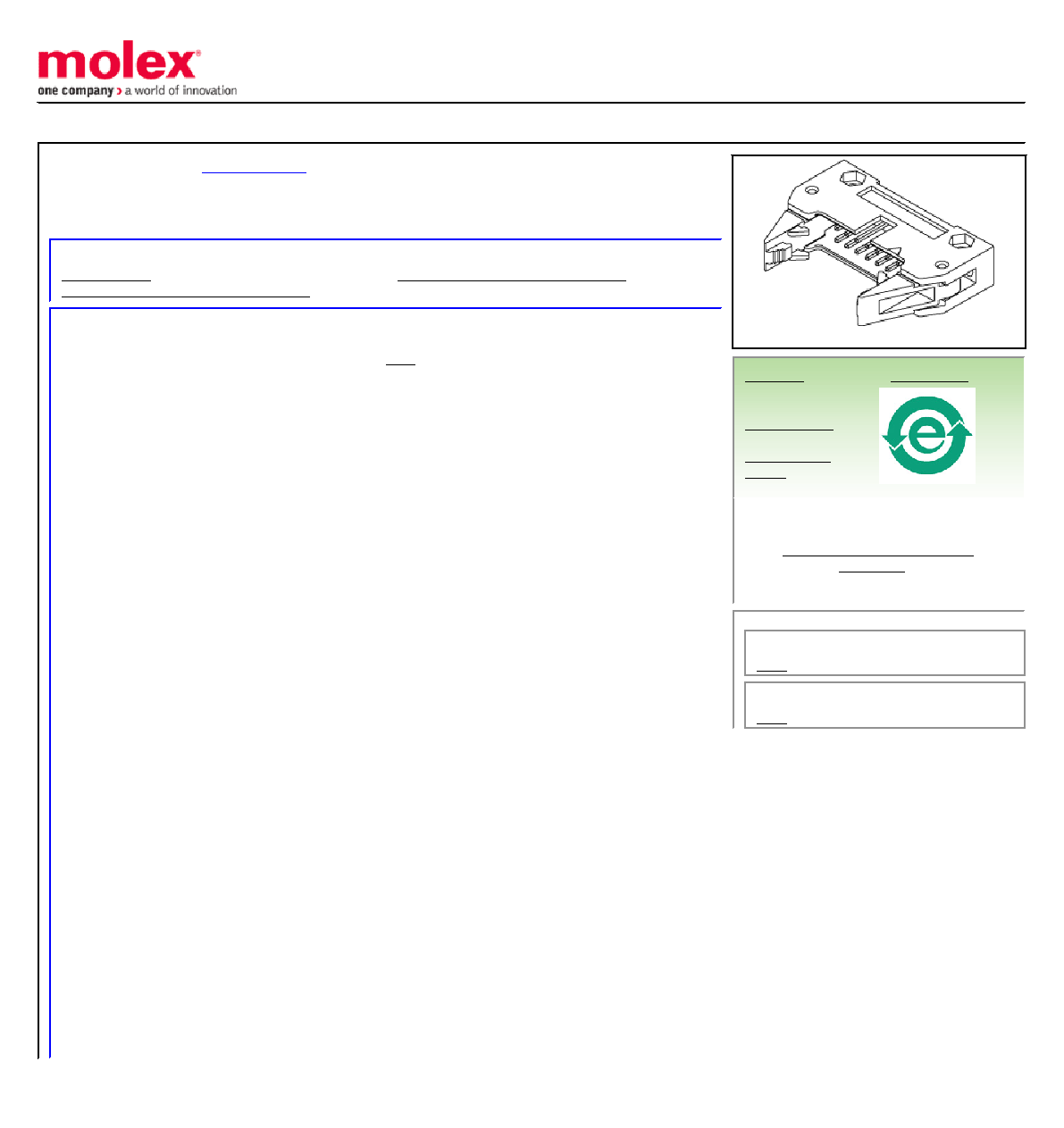

This document was generated on 11/17/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
2.54mm (.100") Pitch QF-50, Dual Row, Single Polariztion Receptacle Right Angle
Shrouded Header with Eject Levers, 14 Circuits
Documents:
General
Product Family
Ribbon Cable / Wire Trap Connectors
Series
Component Type
PCB Header
Glow-Wire Compliant
No
Product Name
QF-50
Physical
Circuits (Loaded)
14
Color - Resin
Black
Entry Angle
90° Angle
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Number of Rows
1
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.100 In
Pitch - Mating Interface (mm)
2.54 mm
Plating min: Mating (in)
0.030
Plating min: Mating (m)
0.76
Plating min: Termination (in)
0.040
Plating min: Termination (m)
1.00
Polarized to Mating Part
No
Polarized to PCB
No
Shrouded
Yes
Stackable
No
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
Through Hole
Wire Insulation Diameter
N/A
Wire Size AWG
N/A
Wire/Cable Type
Ribbon Cable
Electrical
Current - Maximum
1A
Voltage - Maximum
250V
Material Info
Old Part Number
5578-14BGS27F
Reference - Drawing Numbers
Product Specification
PS-5320-008
Sales Drawing
SD-5578-001
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5578 Series
Mates With
