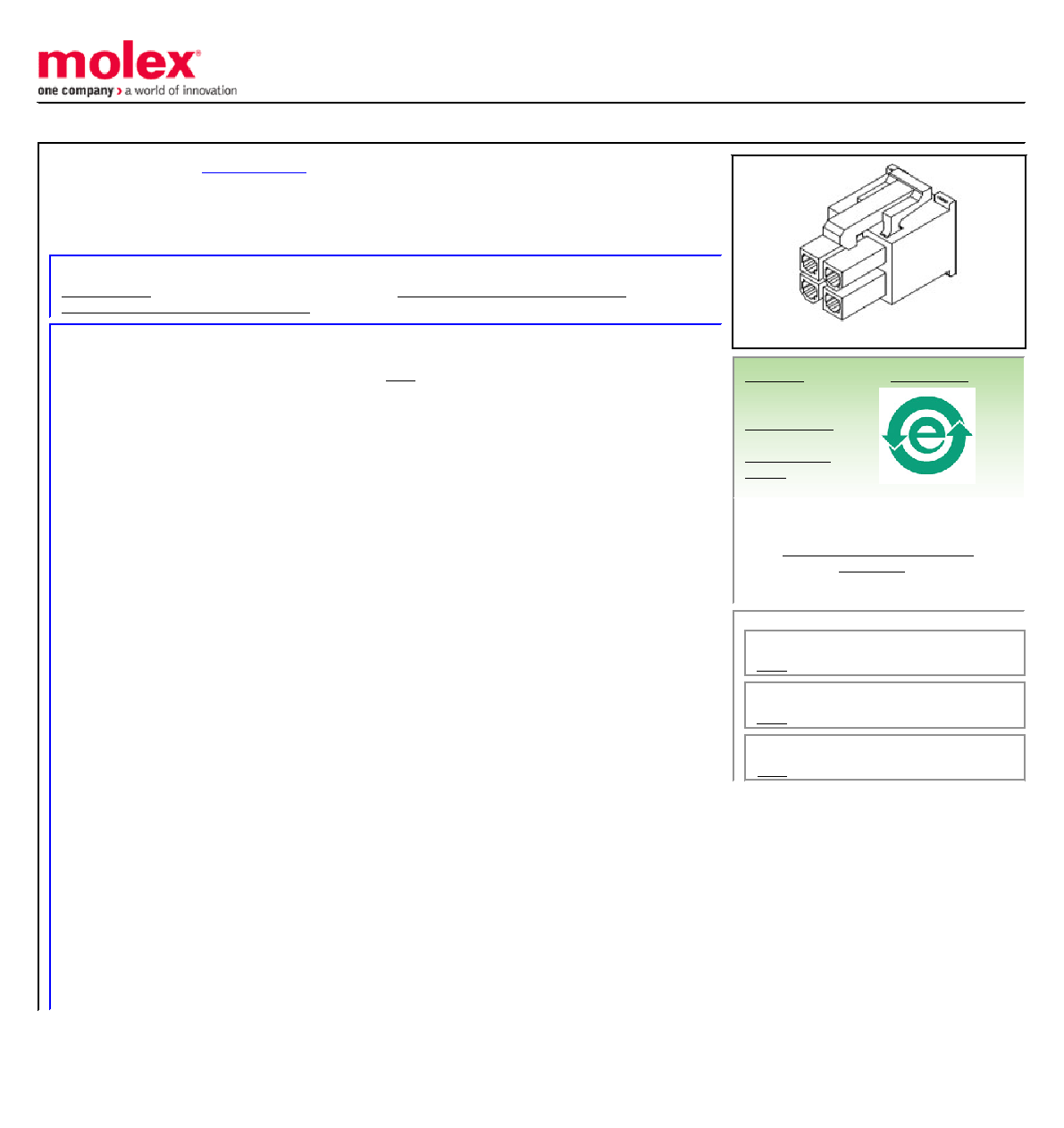

This document was generated on 11/13/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
4.20mm (.165") Pitch Mini-Fit Jr. Receptacle Housing, Dual Row, PA Polyamide
Nylon 6/6, UL 94V-0, 18 Circuits, Glow Wire Compatible
Documents:
General
Product Family
Crimp Housings
Series
Comments
See Molex product specification PS-5556-001 for
additional current de-rating information.
Overview
Mini-Fit Jr.™
Product Name
Mini-Fit Jr.
Physical
Breakaway
No
Circuits (maximum)
18
Color - Resin
Black
Flammability
94V-0
Gender
Receptacle
Glow-Wire Compliant
Yes
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Resin
Nylon
Number of Rows
2
Packaging Type
Bag
Panel Mount
No
Pitch - Mating Interface (in)
0.165 In
Pitch - Mating Interface (mm)
4.20 mm
Pitch - Term. Interface (in)
0.165 In
Pitch - Term. Interface (mm)
4.20 mm
Polarized to Mating Part
Yes
Ports
1
Stackable
No
Temperature Range - Operating
-40°C to +105°C
Electrical
CSA
LR19980
Current - Maximum
1A
Current - Maximum
9A
TUV
R72081037
UL
E29179
Material Info
Old Part Number
5557-18R-225
Reference - Drawing Numbers
Product Specification
PS-5556-001
Sales Drawing
SD-5557-003
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
5557 Series
Mates With
5559 Crimp Housings Plug,
Use With
5556 Female Terminal
This document was generated on 11/13/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
