| 型號： | 0190770024 |
| 廠商： | MOLEX INC |
| 元件分類： | 終端 |
| 英文描述： | 2.6 mm2, RING TERMINAL |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 30K |
| 代理商： | 0190770024 |

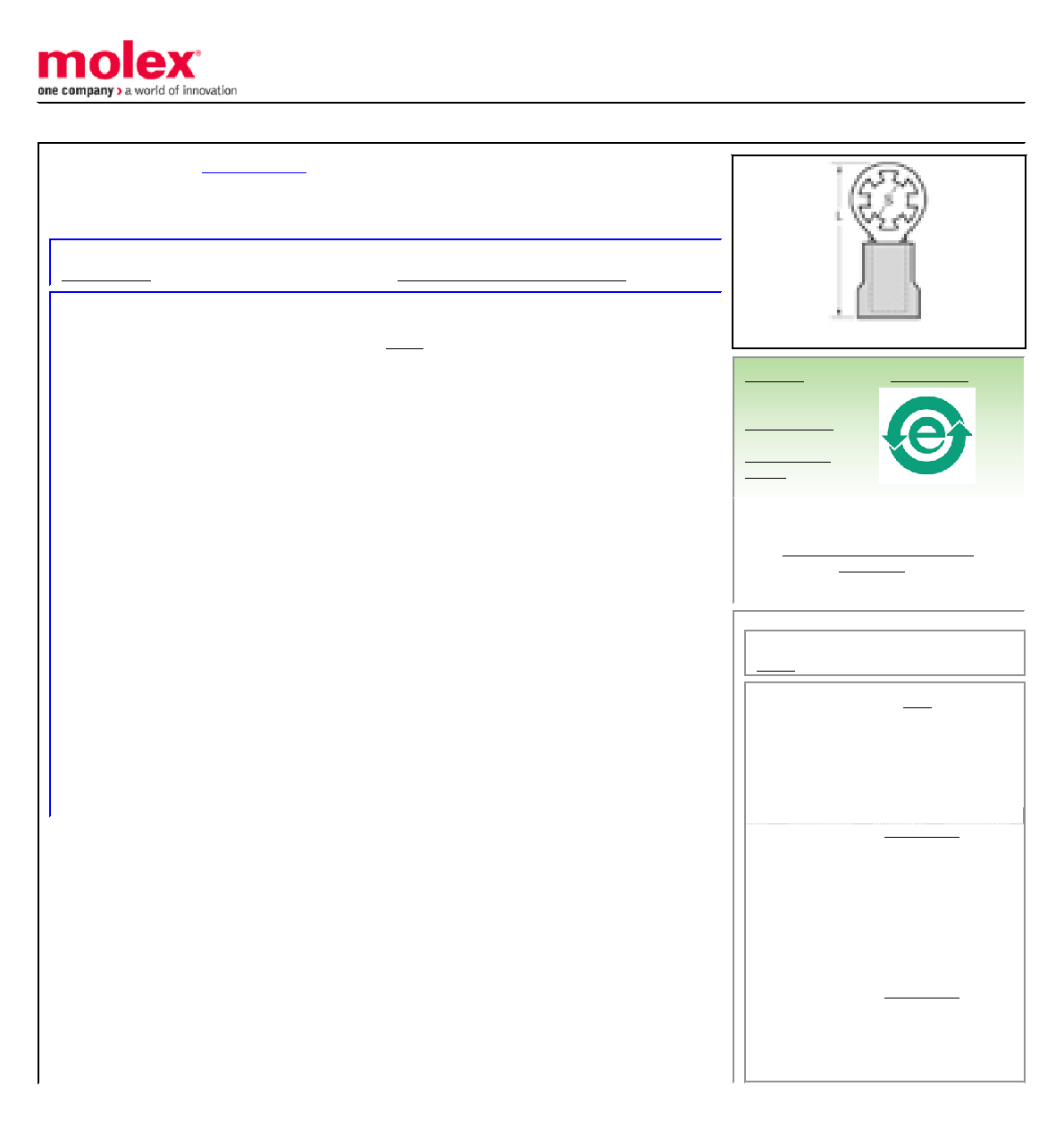

This document was generated on 11/13/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
Avikrimp Steel Star Ring Tongue Terminal 14-16 AWG Wire, Stud Size 8, Mylar Tape
Carrier
Documents:
General
Product Family
Ring and Spade Terminals
Series
Mil-Spec
N/A
Product Name
Avikrimp
Type
Ring
Physical
Barrel Type
Closed
Flammability
94V-2
Insulation
Nylon (PA)
Material - Plating Mating
Tin
Packaging Type
Adhesive Tape on Reel
Plating min: Mating (in)
100
Plating min: Mating (m)
2.5
Plating min: Termination (in)
100
Plating min: Termination (m)
2.5
Stud Size
8 (M4)
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
4.29mm (.169") max.
Wire Size AWG
14
Wire Size AWG
16
Wire Size mm
1.00 - 2.60
Electrical
CSA
LR18689
UL
E32244
Material Info
Old Part Number
SRB-S-829-08T
Reference - Drawing Numbers
Sales Drawing
SD-19077-002
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19077 Series
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Crimp Dies for
MTA-100 Tape
Applicator used in
3BF Press, MTA-105
Tape Applicator used
in TM-2000 Press,
and ATP-301 Air
Crimping Press for
Mylar Tape Mounted
Terminals
Mini-Mac
Applicator for
Insulkrimp and
Avikrimp Star Ring
Terminals, 14-16
AWG
