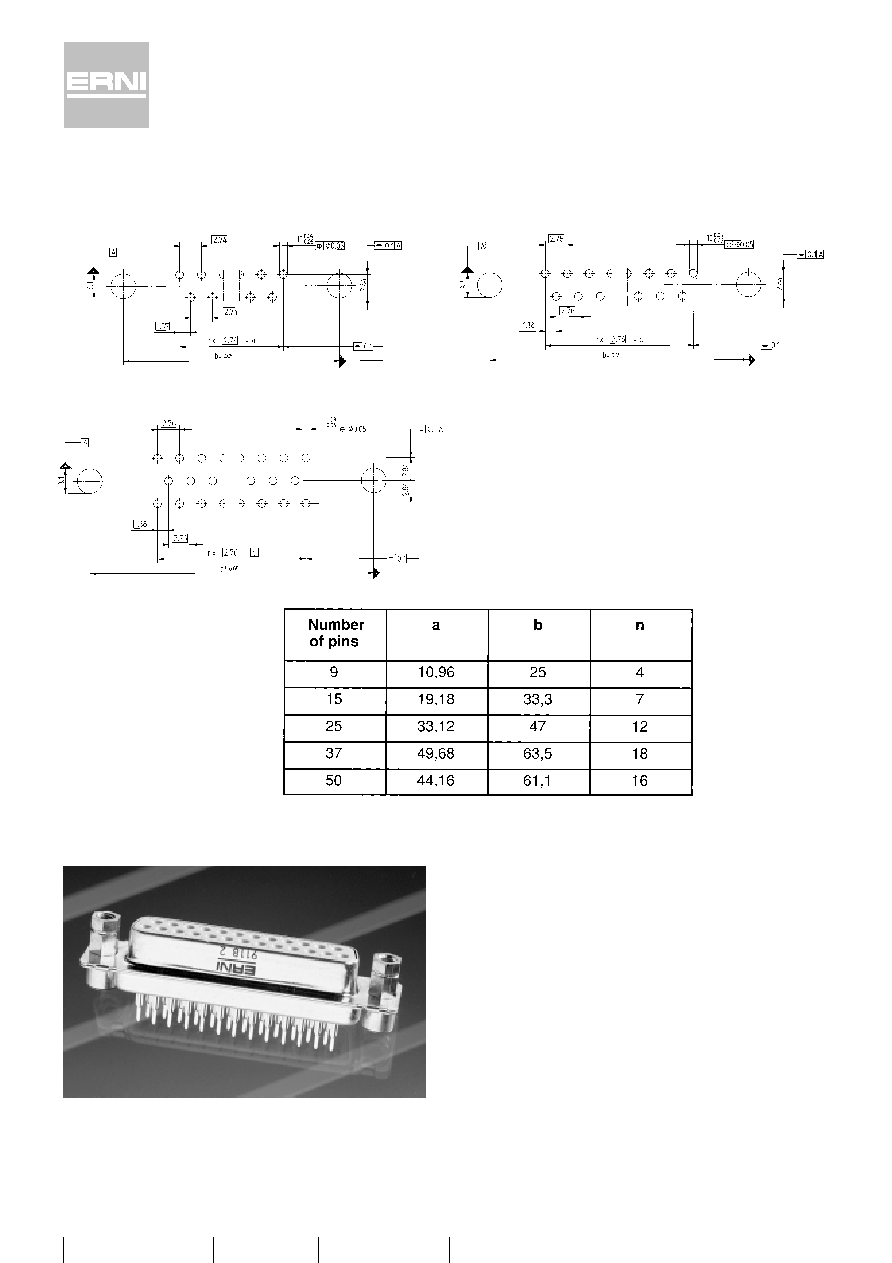

PC board hole patterns
9 – 15 pin
50 pin
25 – 37 pin
Dimension table
Simple fixing and interlocking of the connector with integrated accessories
Our picture shows a 25-pole socket connector with integrated
accessories.
On the plug-in side, the widely-used hexagon interlock bolts
with inside thread can be seen.
The spacer bolts with inside thread for fixing on the printed
board are likewise riveted on at the factory.
All accessory parts are available with thread versions M3 or
4/40 UNC.
The types of thread may also differ within a connector, e.g. M3
for fixing to the printed board and 4/40 as an inside thread for
interlocking.
