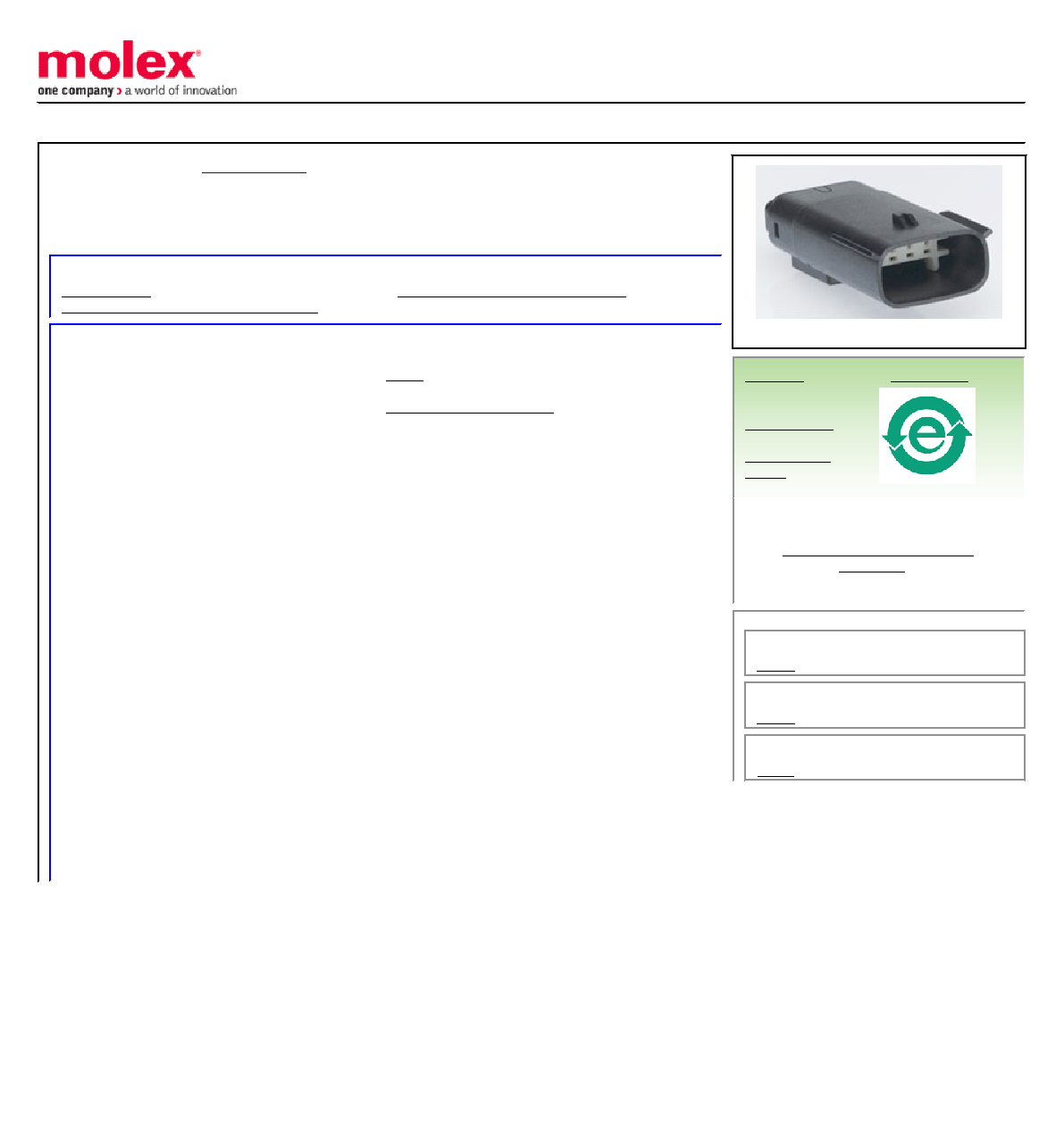

This document was generated on 11/17/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.50mm (.138") Pitch MX150 Sealed Male Connector with Shorting Bars, Single
Row, 4 Circuits, Polarization B, without Connector Position Assurance, Light Gray
Documents:
General
Product Family
Crimp Housings
Series
Comments
No Connector Position Assurance (CPA)
More Detailed Tech Information
Overview
MX150™ Sealed Connector System
Product Name
MX150
Physical
Circuits (maximum)
4
Circuits Detail
4
Color - Resin
Gray (Light)
Color - Resin
Natural
Gender
Male
Glow-Wire Compliant
No
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Resin
Modified Polystyrene Alloy
Number of Rows
1
Packaging Type
Bag
Panel Mount
No
Pitch - Mating Interface (in)
0.138 In
Pitch - Mating Interface (mm)
3.50 mm
Polarized to Mating Part
Yes
Stackable
No
Temperature Range - Operating
-40°C to +125°C
Electrical
Current - Maximum
22A
Material Info
Reference - Drawing Numbers
Product Specification
PS-33471-000
Sales Drawing
SD-31280-200
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
31280 Series
Mates With
33471 MX150 Sealed Female Connector
Use With
31296 MX150 Male Shorting Bar Terminal
This document was generated on 11/17/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
