| 型號： | 0342500049 |
| 廠商： | MOLEX INC |
| 元件分類： | 組合線連接器 |
| 英文描述： | 3 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR, CRIMP |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 31K |
| 代理商： | 0342500049 |
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
4.50mm (.177") Pitch MX150 Cable Sealed Female Connector, Single Row, 3
Circuits, Polarization A, without Connector Position Assurance, Single Key, Black
Documents:
General
Product Family
Crimp Housings
Series
Comments
No Connector Position Assurance (CPA), Single Key
More Detailed Tech Information
Overview
MX150™ Sealed Connector System
Product Name
MX150
Physical
Circuits (maximum)
3
Circuits Detail
3
Color - Resin
Black
Gender
Female
Glow-Wire Compliant
No
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Resin
Polyester
Material - Resin
Polyphenylene Ether Alloy
Number of Rows
1
Packaging Type
Bag
Panel Mount
No
Pitch - Mating Interface (in)
0.177 In
Pitch - Mating Interface (mm)
4.50 mm
Pitch - Term. Interface (in)
0.177 In
Pitch - Term. Interface (mm)
4.50 mm
Polarized to Mating Part
Yes
Stackable
No
Temperature Range - Operating
-40°C to +125°C
Electrical
Current - Maximum
15A
Material Info
Reference - Drawing Numbers
Product Specification
PS-34250-000

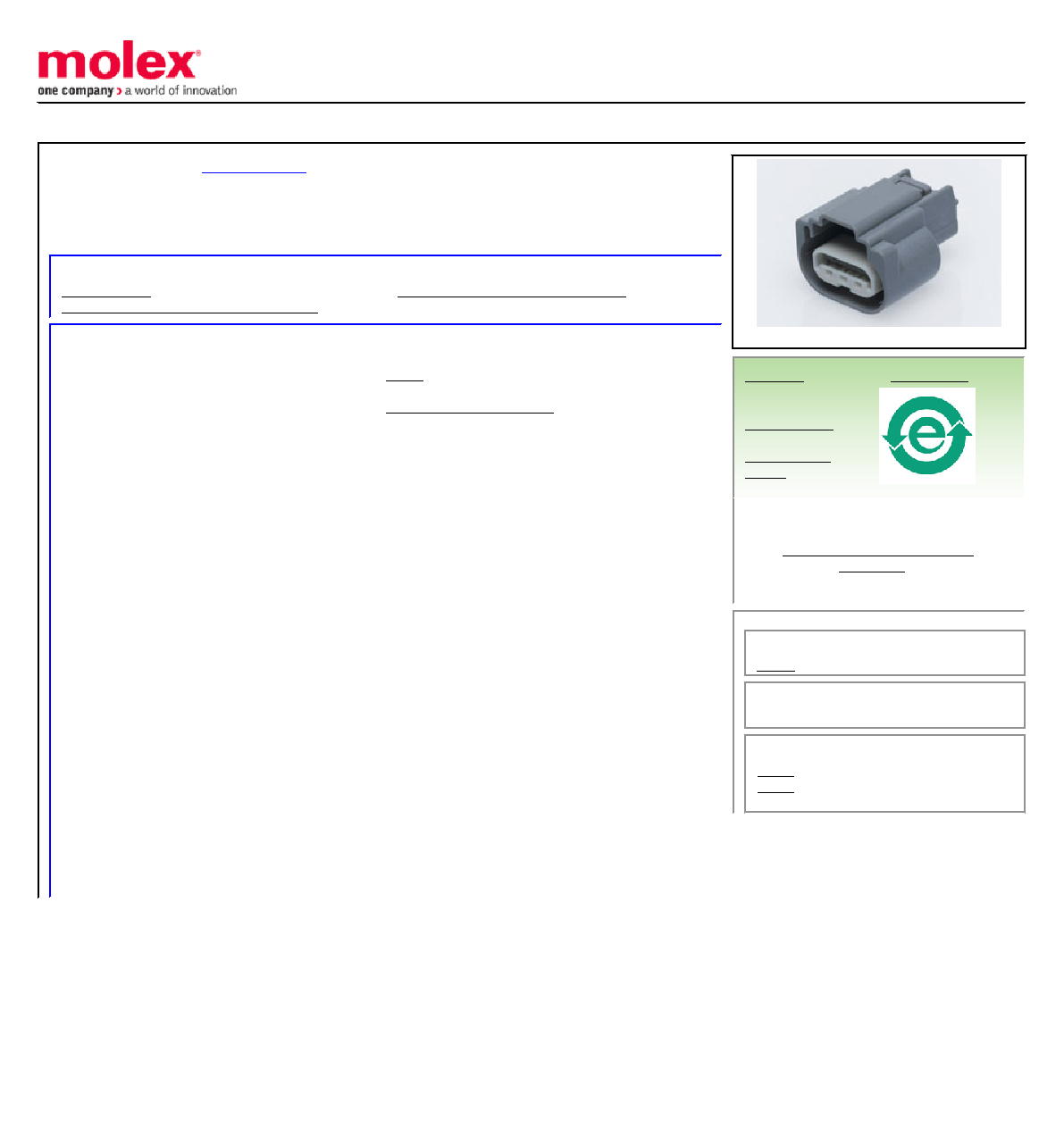

Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
34250 Series
Mates With
Direct Connect only
Use With
34083 Tin (Sn) Cable Seal Female Terminal,
34081 Gold (Au) Cable Seal Female
Terminal
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
