| 型號： | 0387006326 |
| 廠商： | MOLEX INC |
| 元件分類： | 接線盒 |
| 英文描述： | 15 A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 38K |
| 代理商： | 0387006326 |

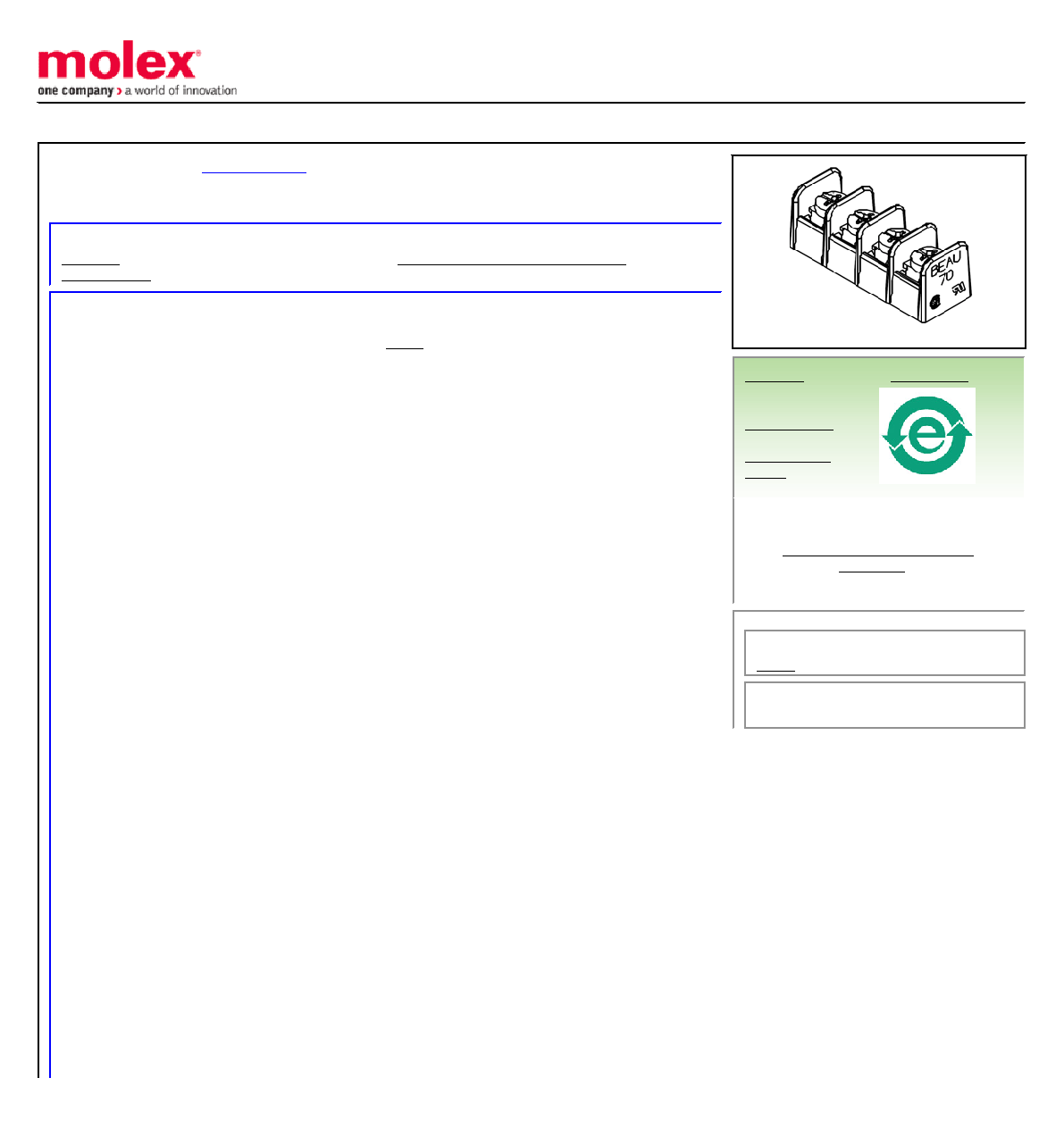

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
8.26mm (.325") Pitch Beau PCB Terminal Strip, without Mounting Ends, 26 Circuits
Documents:
General
Product Family
Terminal Blocks
Series
Application
Wire-to-Board
Component Type
One Piece
Product Name
Fixed Mount Barrier
Type
Barrier Strip
Physical
Circuits (Loaded)
26
Circuits (maximum)
26
Entry Angle
Horizontal
Lock to Mating Part
None
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Number of Rows
1
Orientation
Horizontal
PC Tail Length (in)
0.140 In
PC Tail Length (mm)
3.56 mm
PCB Retention
None
Panel Mount
No
Pitch - Mating Interface (in)
0.325 In
Pitch - Mating Interface (mm)
8.26 mm
Pitch - Term. Interface (in)
0.325 In
Pitch - Term. Interface (mm)
8.25 mm
Plating min: Mating (in)
150
Plating min: Mating (m)
3.75
Plating min: Termination (in)
150
Plating min: Termination (m)
3.75
Polarized to Mating Part
No
Shrouded
Dual-Barrier
Stackable
Yes
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +130°C
Termination Interface: Style
Through Hole
Wire Size AWG
14
Wire Size AWG
16
Wire Size AWG
18
Wire Size AWG
20
Wire Size AWG
22
Wire Size mm
0.50 - 1.50
Electrical
Current - Maximum
15A
Voltage - Maximum
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
38700 Series
Mates With
N/A
