參數資料
| 型號： | 0438794000 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 5 CONTACT(S), MALE, POWER CONNECTOR, PRESS FIT |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大?。?/td> | 34K |
| 代理商： | 0438794000 |

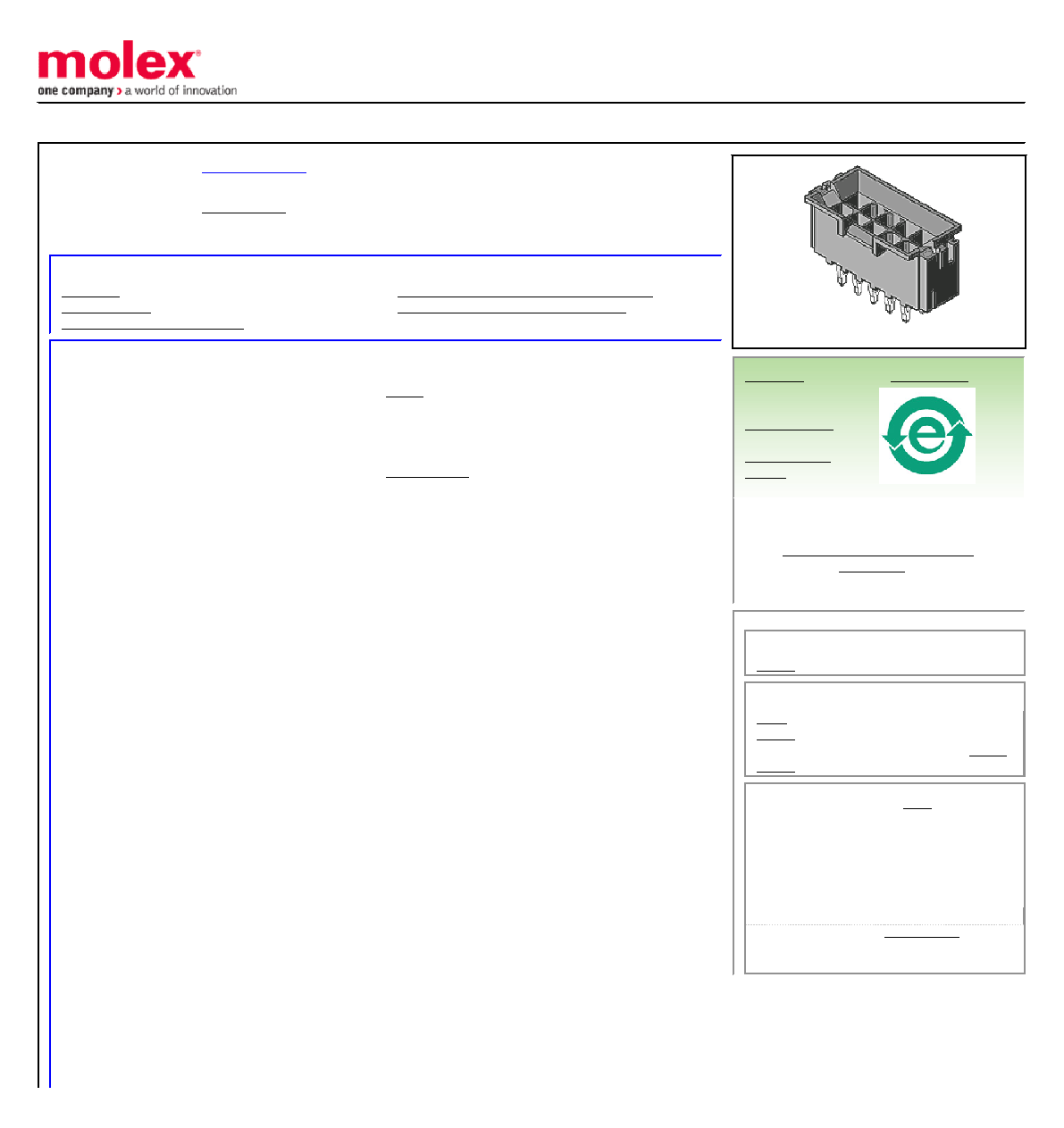

This document was generated on 11/02/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
4.20mm (.165") Pitch Mini-Fit CPI Header, Compliant Pin Interface, Dual Row,
Vertical, 6 Circuits, Circuit 1 Voided, 2.54m (100") Tin (Sn) over Nickel Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Application
Wire-to-Board
Application Tooling Part Link
622009400
Comments
Square Pin|Compliant Pin
Overview
Product Name
Mini-Fit CPI
Physical
Breakaway
No
Circuits (Loaded)
5
Circuits (maximum)
6
Color - Resin
Black
Durability (mating cycles max)
30
First Mate / Last Break
No
Flammability
94V-0
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.250 In
PC Tail Length (mm)
6.35 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.088 In
PCB Thickness Recommended (mm)
2.24 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.165 In
Pitch - Mating Interface (mm)
4.20 mm
Pitch - Term. Interface (in)
0.165 In
Pitch - Term. Interface (mm)
4.20 mm
Polarized to Mating Part
Yes
Polarized to PCB
No
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +105°C
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
43879 Series
Mates With
5557 Mini-Fit Jr. Receptacle Housing.
42385 Mini-Fit BMI Receptacle Header.
Mini-Fit BMI Receptacle Housing 42474 ,
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Flat Rock Tool
for Mini-Fit CPI
Header
