| 型號： | 0440670802 |
| 廠商： | MOLEX INC |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 32K |
| 代理商： | 0440670802 |
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.00mm (.118") Pitch Micro-Fit 3.0 Wire-to-Board Header, Dual Row, Vertical for up
to 3.56mm (.140") Thick PCB, 8 Circuits, 0.38m (15") Gold (Au) Selective Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Comments
High Temperature, Polarization Key to PCB
Overview
Micro-Fit, 3.0™
Product Name
Micro-Fit 3.0
Physical
Breakaway
No
Circuits (Loaded)
8
Circuits (maximum)
8
Color - Resin
Black
Durability (mating cycles max)
30
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.158 In
PC Tail Length (mm)
4.01 mm
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.140 In
PCB Thickness Recommended (mm)
3.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.118 In
Pitch - Mating Interface (mm)
3.00 mm
Pitch - Term. Interface (in)
0.118 In
Pitch - Term. Interface (mm)
3.00 mm
Plating min: Mating (in)
15
Plating min: Mating (m)
0.375
Plating min: Termination (in)
100
Plating min: Termination (m)
2.5
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
Through Hole - Kinked Pin

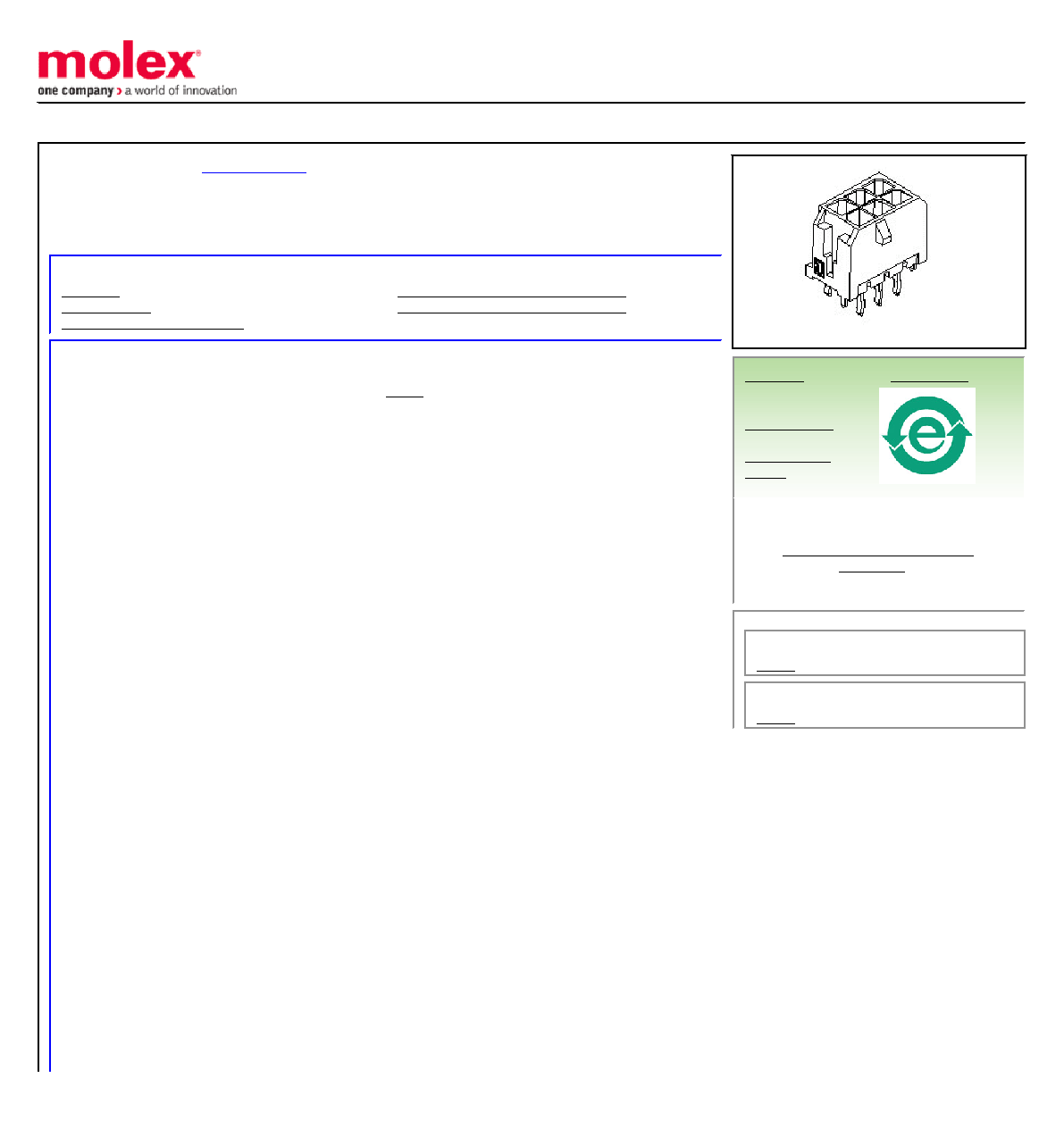

Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
44067 Series
Mates With
43025 Micro-Fit Header
