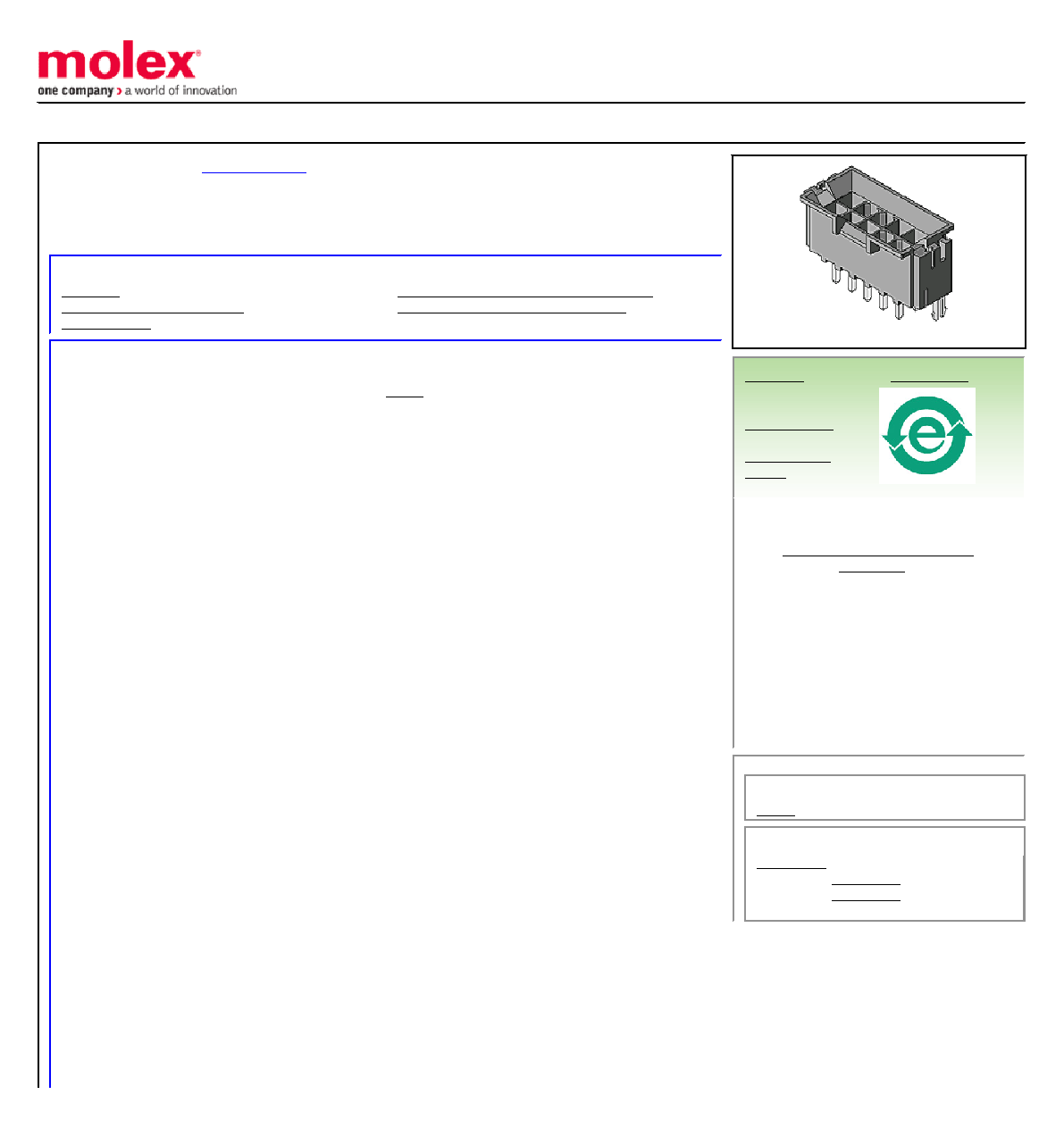

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
4.20mm (.165") Pitch Mini-Fit BMI Surface Mount Compatible Header, Dual Row,
Vertical, 6 Circuits, 6.35mm (.250") PCB Thickness, with Snap-In Metal Pins, PA
Polyamide Nylon 4/6, UL 94V-0, with Gold (Au) Over Nickel (Ni) Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Application
Wire-to-Board
Comments
Current = 12A max. per circuit when header is
mated to a receptacle loaded with 45750 series
terminals crimped to 16 AWG wire.. See Molex product
specification PS-45750-001 for additional current de-
rating information.
Product Name
Mini-Fit BMI
Physical
Breakaway
No
Circuits (Loaded)
6
Circuits (maximum)
6
Color - Resin
Black
Durability (mating cycles max)
30
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
Yes
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Gold
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.335 In
PC Tail Length (mm)
8.50 mm
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.250 In
PCB Thickness Recommended (mm)
6.30 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.165 In
Pitch - Mating Interface (mm)
4.20 mm
Plating min: Mating (in)
30.4
Plating min: Mating (m)
0.76
Plating min: Termination (in)
30.4
Plating min: Termination (m)
0.76
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Duration at Max.
Process Temperature
(seconds)
5
Lead-free Process
Capability
SMC & Wave Capable
(TH only)
Max. Cycles at Max.
Process Temperature
1
Process Temperature
max. C
235
Search Parts in this Series
44068 Series
Mates With
15-06-0061 Mini-Fit BMI Panel Mount
Receptacle, 39-01-2065 Mini-Fit Jr.
Receptacle, 15-24-7063 Mini-Fit BMI
Receptacle Header
