Catalog E 074482
08/06
Edition 4
www.erni.com
159
ERmet
2.0mm

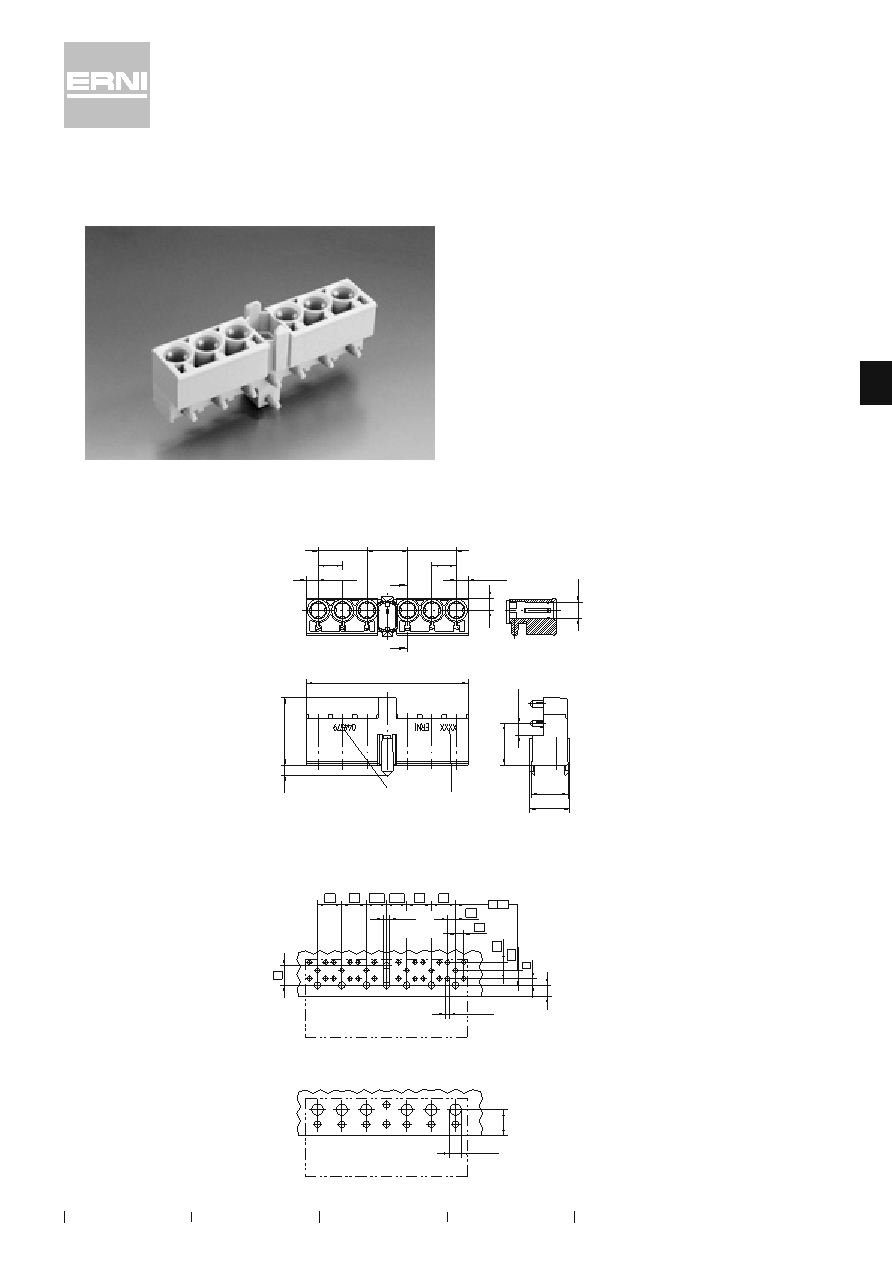

Dimensional drawings and board hole pattern
Right Angle Female Connectors Type L For Daughter Cards
6 special contacts
50 mm with multifunction block (for positioning and coding)
3.75 max
7.5
2 * 7.5 =
15
12.5
2 * 7.5 =
15
7.5
3.7
50 max
20.65
-
0.2
3.2
Id.-Nr.
datum
11.4
12.25
3.7
+ -
0.05
12.8
-
0.2
4.8
2.5
2 + 0.1
2.5
2
6.
1.3 + 0.1
3.5
2
6
10
13
16
20
24
7.5
6.25
7.5
0.1
not plated thru
plated thru
Board hole pattern
( Component mounting side )
for free wiring
- all holes
3.5 + 0.04
- 0.06
8
2
6
10
13
16
20
24
plated thru
Board hole pattern
( Component mounting side )
for press - fitting
The ERmet type L female is an insulator that provides up to
6 contact positions for special power or coax contacts in a
fully loaded configuration.
The ERmet type L female connector has a multifunction
cavity that incorporates pre-alignment guides and accepts
optional coding keys. This connector is designed to be
used alone or in conjunction with either a type B, C, M or N
ERmet connector.
The type L female is also available with a locating and strain
relief peg that helps secure the connector to the printed cir-
cuit board (PCB).
Note:
The
numbering
on
the
connectors
themselves
is
in
accor
dance
with
the
IEC
61076-4-101
standar
d.
All
dimensions
in
mm.
