參數資料
| 型號： | 0452802453 |
| 廠商： | MOLEX INC |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 24 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 34K |
| 代理商： | 0452802453 |

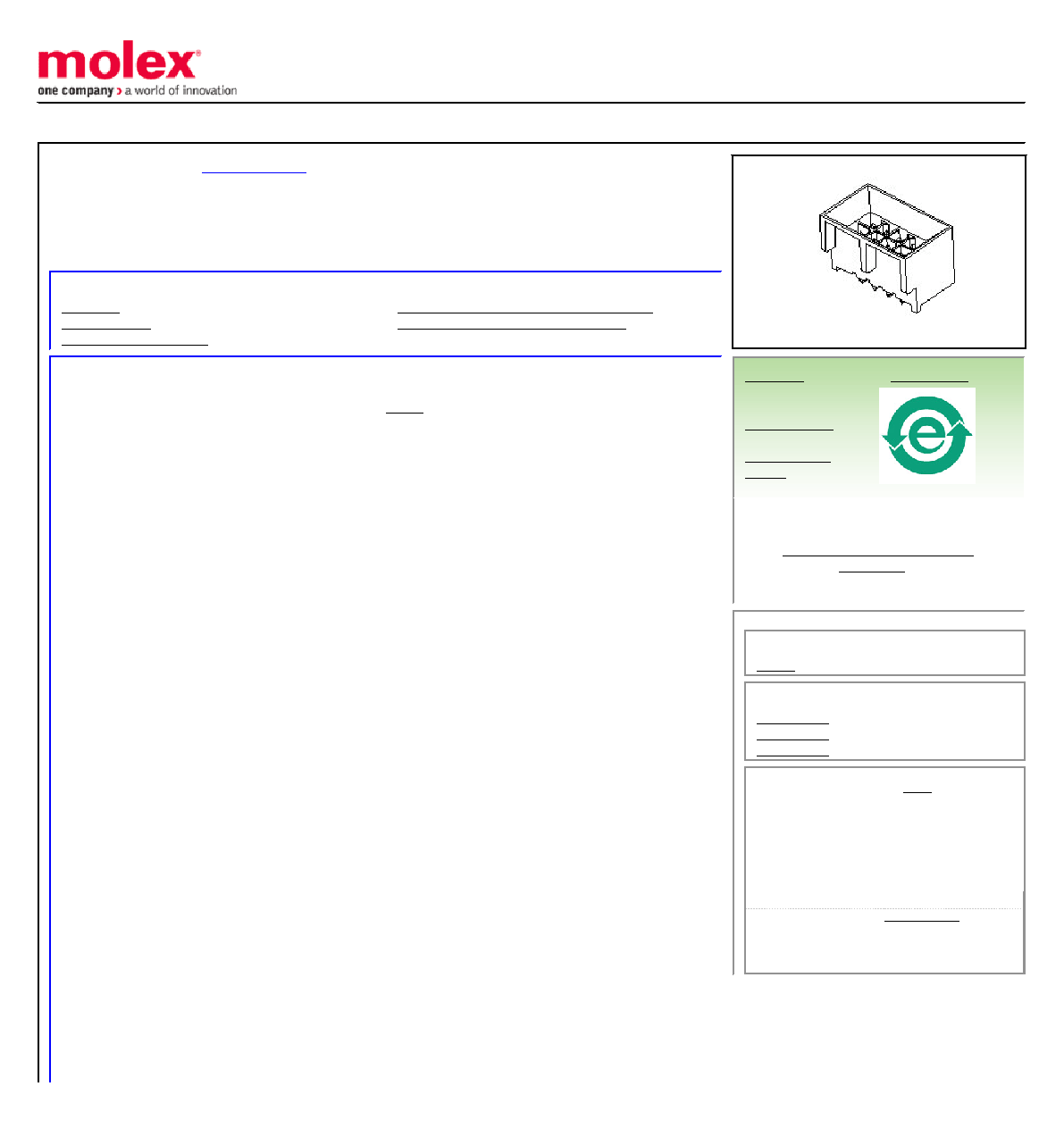

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.00mm (.118") Pitch Micro-Fit 3.0 BMI CPI Compliant Pin Header, Blind Mate
Interface, Dual Row, Vertical, 24 Circuits, PA Polyamide Nylon 4/6, UL 94V-0, 0.76m
(30") Gold (Au) Selective Contact Plating, Tin (Sn) Tail Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Application
Wire-to-Board
Application Tooling Part Link
622008400
Overview
Micro-Fit, 3.0™
Product Name
Micro-Fit 3.0 BMI CPI
Physical
Breakaway
No
Circuits (Loaded)
24
Circuits (maximum)
24
Color - Resin
Black
Durability (mating cycles max)
30
Flammability
94V-0
Glow-Wire Compliant
No
Guide to Mating Part
Yes
Lock to Mating Part
None
Material - Metal
High Performance Alloy (HPA)
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.189 In
PC Tail Length (mm)
4.80 mm
PCB Locator
Yes
PCB Retention
Yes
Packaging Type
Tray
Pitch - Mating Interface (in)
0.118 In
Pitch - Mating Interface (mm)
3.00 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.75
Plating min: Termination (in)
100
Plating min: Termination (m)
2.5
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
Through Hole - Compliant Pin
Electrical
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
45280 Series
Mates With
44133-2400 Panel Mount Receptacle,
44769-2403 Vertical Receptacle Header,
44764-2403 Right Angle Receptacle Header
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Micro-Fit
Compliant Pin
Insertion Flat Rock
Tool
