| 型號： | 0459844913 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 4 CONTACT(S), FEMALE, POWER CONNECTOR, SOLDER, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 35K |
| 代理商： | 0459844913 |

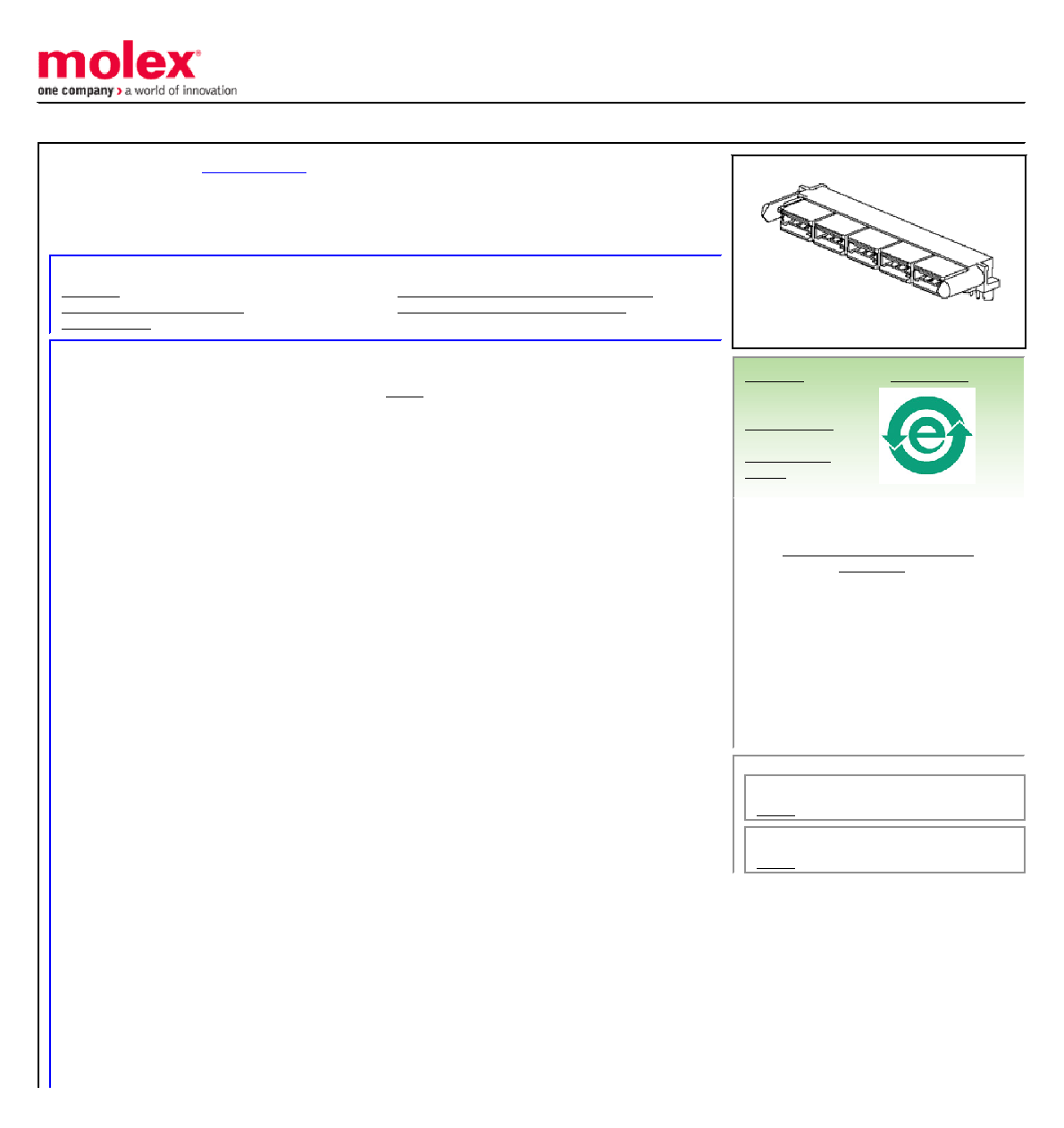

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
EXTreme LPHPower Receptacle Header, Right Angle, 4 Power Contacts, Select
Gold (Au) Plating, for 3.18mm (.125") Thick PC Board with Press-fit Plastic Pegs
Documents:
General
Product Family
PCB Receptacles
Series
Application
Board-to-Board
Comments
4 Power Blades
Overview
EXTreme LPHPower™
Product Name
EXTreme LPHPower
Physical
Circuits (Loaded)
4
Circuits (maximum)
4
Circuits Detail
4 Power, No Signal
Color - Resin
Black
Durability (mating cycles max)
250
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
Yes
Lock to Mating Part
No
Material - Metal
High Performance Alloy (HPA)
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Right Angle
PC Tail Length (in)
0.177 In
PC Tail Length (mm)
4.50 mm
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.125 In
PCB Thickness Recommended (mm)
3.18 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.472 In
Pitch - Mating Interface (mm)
12.00 mm
Pitch - Term. Interface (in)
0.079 In
Pitch - Term. Interface (in)
0.098 In
Pitch - Term. Interface (mm)
2.00 mm
Pitch - Term. Interface (mm)
2.50 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.75
Plating min: Termination (in)
150
Plating min: Termination (m)
3.75
Polarized to Mating Part
Yes
Polarized to PCB
No
Stackable
No
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
-40°C to +105°C
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Duration at Max.
Process Temperature
(seconds)
15
Lead-free Process
Capability
SMC & Wave Capable
(TH only)
Max. Cycles at Max.
Process Temperature
3
Process Temperature
max. C
230
Search Parts in this Series
45984 Series
Mates With
45985 EXTreme LPHPower Headers
