| 型號： | 0459850243 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER, PLUG |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 34K |
| 代理商： | 0459850243 |

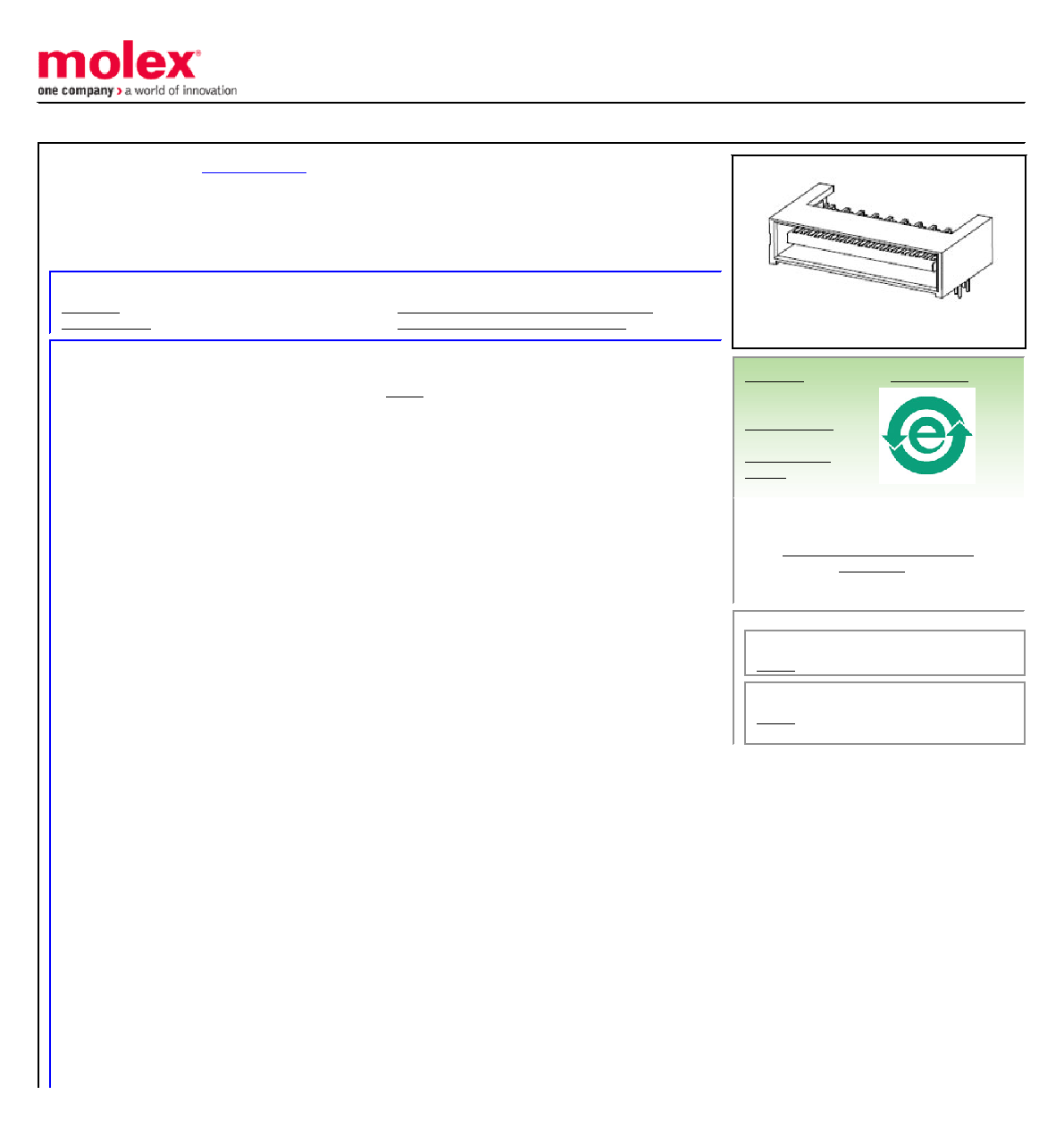

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
1.27mm (.050") Pitch, EXTreme LPHPower Plug, Right Angle, 24 Signal Contacts,
Select Gold (Au) Plating, with Optional Pegs and with Optional Guides, for 1.57mm
(.062") Thick PC Board
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Overview
EXTreme LPHPower™
Product Name
EXTreme PowerPlus
Physical
Breakaway
No
Circuits (Loaded)
24
Circuits (maximum)
24
Circuits Detail
24 Signal
Color - Resin
Black
Durability (mating cycles max)
250
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
No
Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Right Angle
PC Tail Length (in)
0.114 In
PC Tail Length (mm)
2.90 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.57 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.050 In
Pitch - Mating Interface (mm)
1.27 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.75
Plating min: Termination (in)
150
Plating min: Termination (in)
50
Plating min: Termination (m)
1.25
Plating min: Termination (m)
3.75
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
-40°C to +105°C
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
45985 Series
Mates With
45984 EXTreme LPHPower PCB
Receptacles
