參數資料
| 型號： | 0460077306 |
| 廠商： | MOLEX INC |
| 元件分類： | 電源輸入模塊 |
| 英文描述： | 6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 41K |
| 代理商： | 0460077306 |

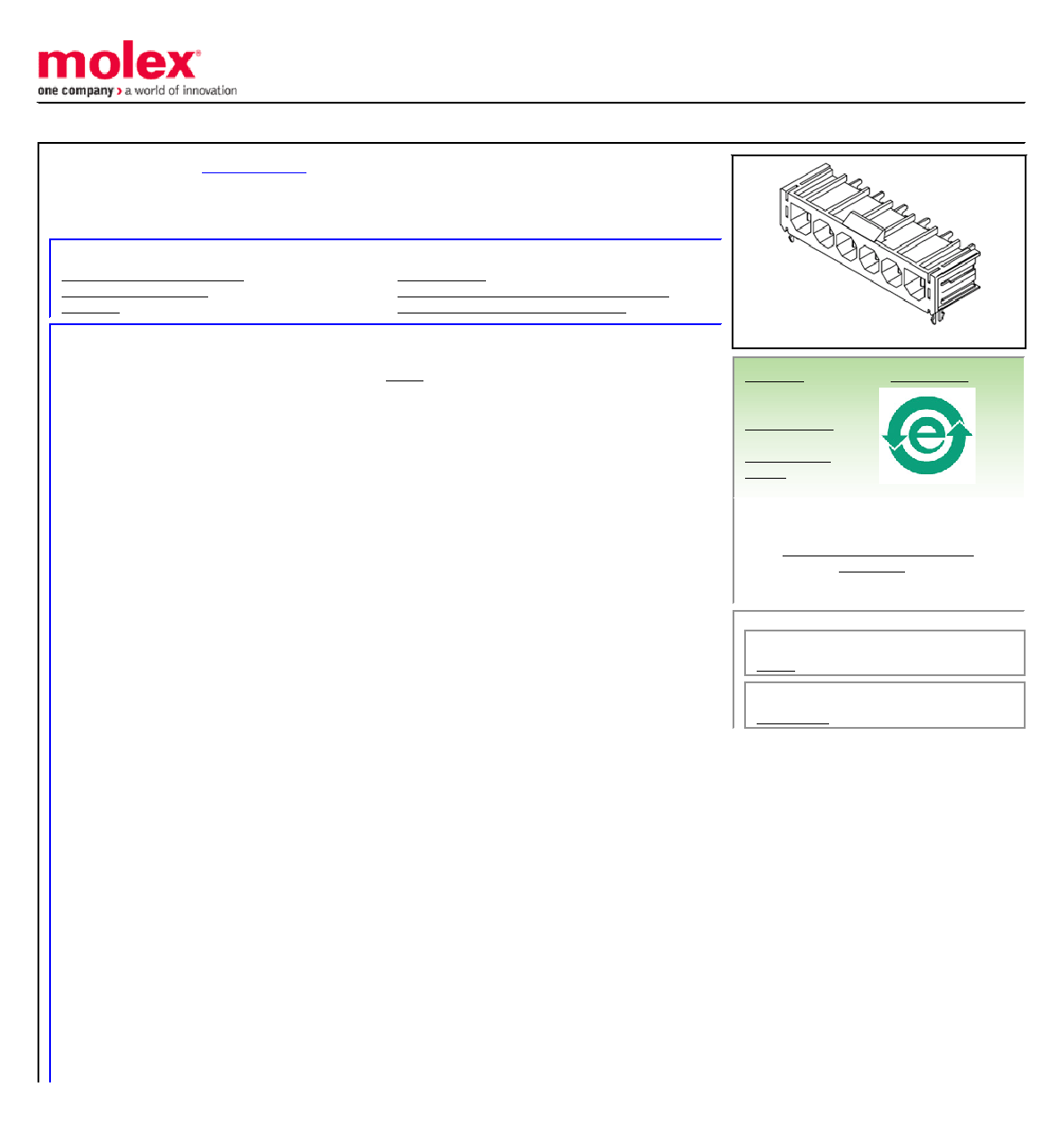

This document was generated on 12/02/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
7.50mm (.295") Pitch Sabre Header, Single Row, Right Angle, 6 Circuits, PC Tail
Length 5.33mm (.210"), with Snap-In Metal Pins, Tin (Sn) Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Comments
Fully Polarized, Meets UL 1950 Finger Proof Standard
Product Name
Sabre
Physical
Breakaway
No
Circuits (Loaded)
6
Circuits (maximum)
6
Color - Resin
Black
Durability (mating cycles max)
25
First Mate / Last Break
No
Flammability
94V-0
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
1
Orientation
Right Angle
PC Tail Length (in)
0.210 In
PC Tail Length (mm)
5.33 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.125 In
PCB Thickness Recommended (mm)
3.20 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.295 In
Pitch - Mating Interface (mm)
7.50 mm
Plating min: Mating (in)
35
Plating min: Mating (m)
0.88
Plating min: Termination (in)
35
Plating min: Termination (m)
0.88
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +75°C
Termination Interface: Style
Through Hole
Electrical
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
46007 Series
Mates With
