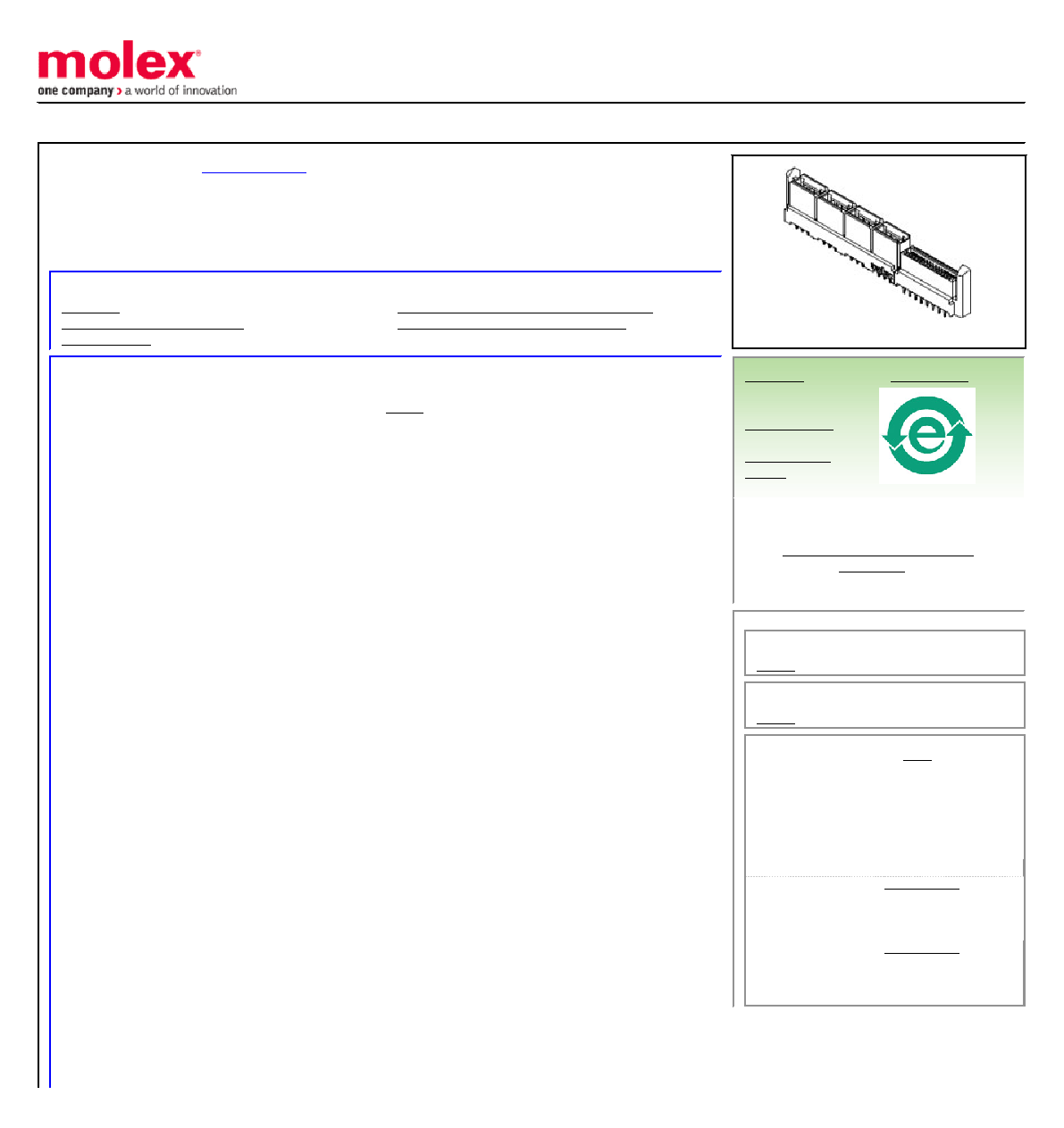

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
1.27mm (.050"), 12.00mm (.472") Pitch, EXTreme LPHPower Receptacle Header,
Vertical, Compliant Pin, 8 Power Contacts, 28 Signal Contacts, Select Gold (Au)
Plating, With BMI Guides
Documents:
General
Product Family
PCB Receptacles
Series
Application
Board-to-Board
Application Tooling Part Link
621006300
Application Tooling Part Link
622018671
Overview
EXTreme LPHPower™
Product Name
EXTreme LPHPower
Physical
Circuits (Loaded)
32
Circuits (maximum)
32
Circuits Detail
8 Power, 28 Signal
Color - Resin
Black
Durability (mating cycles max)
250
Glow-Wire Compliant
No
Guide to Mating Part
Yes
Keying to Mating Part
None
Lock to Mating Part
None
Material - Metal
High Performance Alloy (HPA)
Material - Metal
Phosphor Bronze
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Vertical
PC Tail Length (in)
0.099 In
PC Tail Length (in)
0.102 In
PC Tail Length (mm)
2.52 mm
PC Tail Length (mm)
2.58 mm
PCB Locator
No
PCB Retention
None
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.57 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.050 In
Pitch - Mating Interface (in)
0.472 In
Pitch - Mating Interface (mm)
1.27 mm
Pitch - Mating Interface (mm)
12.00 mm
Pitch - Term. Interface (in)
0.050 In
Pitch - Term. Interface (in)
0.098 In
Pitch - Term. Interface (mm)
1.27 mm
Pitch - Term. Interface (mm)
2.50 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.75
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
46114 Series
Mates With
45985 EXTreme LPHPower Header
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
LPH Vertical
Receptacle Power
Terminal Removal
Tool
LPH Vertical
Receptacle Press-
In Tool for 46114
Series
