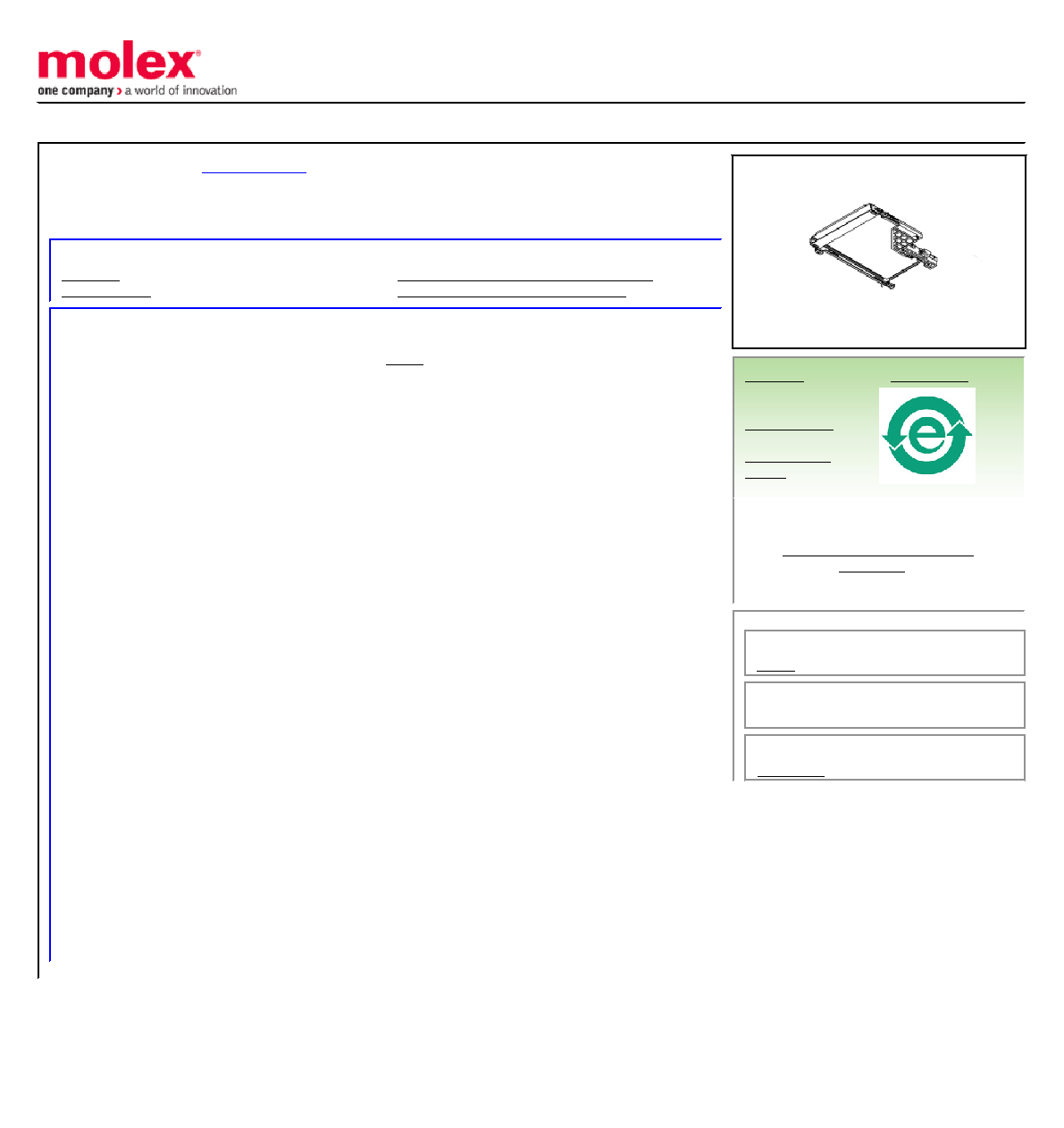

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
1.00mm (.039") Pitch ExpressCard* Ejector, Top Mount, Push-Push Type, with Bottom
Shell, Lead Free
Documents:
General
Product Family
Memory Card Sockets
Series
Button Type
Push-Push
Comments
Stainless Steel Ejector & Frame Components, with
Bottom Shell
Component Type
Ejector (Host)
Product Name
ExpressCard*
Type
N/A
Physical
Card Detection Switch
N/A
Circuits (Loaded)
26
Circuits (maximum)
26
Durability (mating cycles max)
10,000
Ejector Button Side
No Ejector Button Present
Entry Angle
90° Angle (Side Entry)
Keying to Mating Part
Yes
PCB Locator
Yes
PCB Mounting Side
Top
PCB Retention
Yes
Packaging Type
Tray
Pitch - Mating Interface (in)
0.039 In
Pitch - Mating Interface (mm)
1.00 mm
Pitch - Term. Interface (in)
0.039 In
Pitch - Term. Interface (mm)
1.00 mm
Ports
1
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
0°C to +55°C
Electrical
Current - Maximum
0.75A
Shielded
Yes
Voltage - Maximum
3.3V
Voltage Key
N/A
Material Info
Reference - Drawing Numbers
Product Specification
PS-47202-001
Sales Drawing
SD-47150-001
* ExpressCard is trademark, or registered trademark of PCMCIA
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
47150 Series
Mates With
ExpressCard* Module
Use With
This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
