| 型號： | 0471512062 |
| 廠商： | MOLEX INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 19 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 34K |
| 代理商： | 0471512062 |

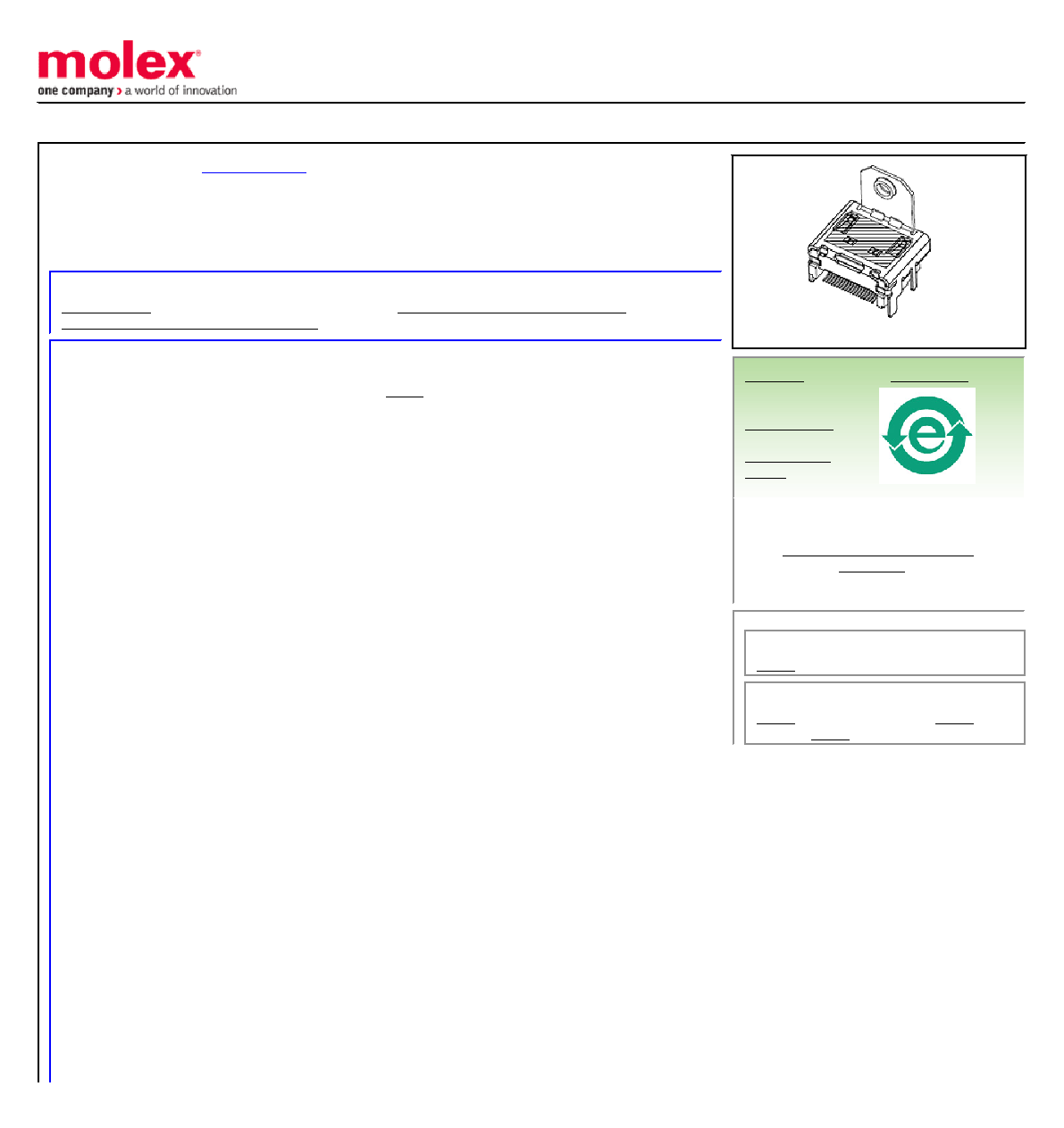

This document was generated on 11/10/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
1.00mm (.039") Pitch HDMI* Receptacle, Right Angle, Front Solder Tab Length
1.80mm (.071"), Contact 0.38m (15") Gold (Au) Plated, with Back Cover, with Mylar,
with Upper Flange, Tape and Reel Package, Black Housing, Lead Free
Documents:
General
Product Family
I/O Connectors
Series
Application
Wire-to-Board
Comments
With Mylar
Component Type
Receptacle
Overview
HDMI High Definition Multimedia Interface
Product Name
HDMI
Type
N/A
Physical
Boot Color
N/A
Circuits (Loaded)
19
Color - Resin
Black
Gender
Male
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Material - Plating Termination
Tin-Bismuth
Number of Rows
2
Orientation
Right Angle
PCB Locator
No
PCB Retention
Yes
Packaging Type
Embossed Tape on Reel
Panel Mount
With Flange
Pitch - Mating Interface (in)
0.039 In
Pitch - Mating Interface (mm)
1.00 mm
Pitch - Term. Interface (in)
0.039 In
Pitch - Term. Interface (mm)
1.00 mm
Plating min: Mating (in)
15
Plating min: Mating (m)
0.38
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Ports
1
Temperature Range - Operating
-20°C to +85°C
Termination Interface: Style
Surface Mount
Waterproof / Dustproof
No
Wire Size AWG
N/A
Electrical
Current - Maximum
.5A
Shielded
Yes
Voltage - Maximum
40V DC
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
47151 Series
Mates With
Adapter, 88767 HDMIAdapter
