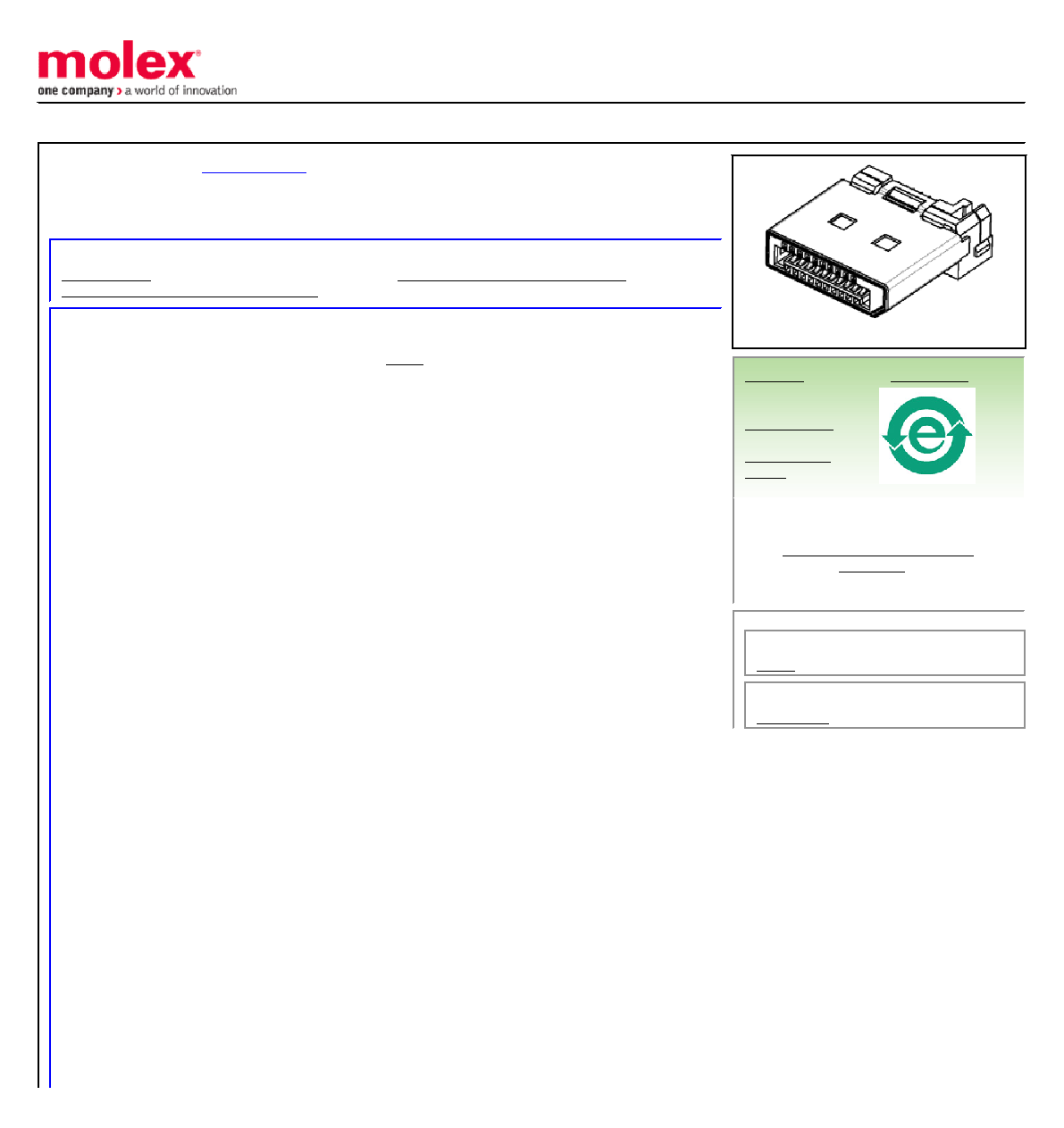

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
0.50mm (.020") Pitch DisplayPort* Plug Sub-assembly, without Latch
Documents:
General
Product Family
I/O Connectors
Series
Application
Wire-to-Board
Comments
Part meets VESA Proposed Standard, Version 1.1
Component Type
I/O Plug Connector Subassembly
Overview
DisplayPort*
Product Name
DisplayPort*
Type
A
Physical
Boot Color
N/A
Circuits (Loaded)
20
Circuits (maximum)
20
Color - Resin
Black
Gender
Plug
Keying to Mating Part
N/A
Lock to Mating Part
No
Material - Metal
Brass
Material - Metal
High Performance Alloy (HPA)
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Orientation
Straight
PC Tail Length (in)
0.000 In
PC Tail Length (mm)
0.00 mm
PCB Locator
No
PCB Retention
N/A
PCB Thickness Recommended (in)
0.000 In
PCB Thickness Recommended (mm)
0.00 mm
Packaging Type
Bag
Panel Mount
N/A
Pitch - Mating Interface (in)
0.039 In
Pitch - Mating Interface (mm)
0.50 mm
Pitch - Term. Interface (in)
0.039 In
Pitch - Term. Interface (mm)
0.50 mm
Plating min: Mating (in)
32
Plating min: Mating (m)
0.8
Plating min: Termination (in)
80
Plating min: Termination (m)
2
Polarized to Mating Part
Yes
Polarized to PCB
N/A
Ports
1
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
-20°C to +85°C
Termination Interface: Style
Surface Mount
Waterproof / Dustproof
No
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
47271 Series
Mates With
