參數資料
| 型號： | 0473621010 |
| 廠商： | MOLEX INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 22 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 30K |
| 代理商： | 0473621010 |

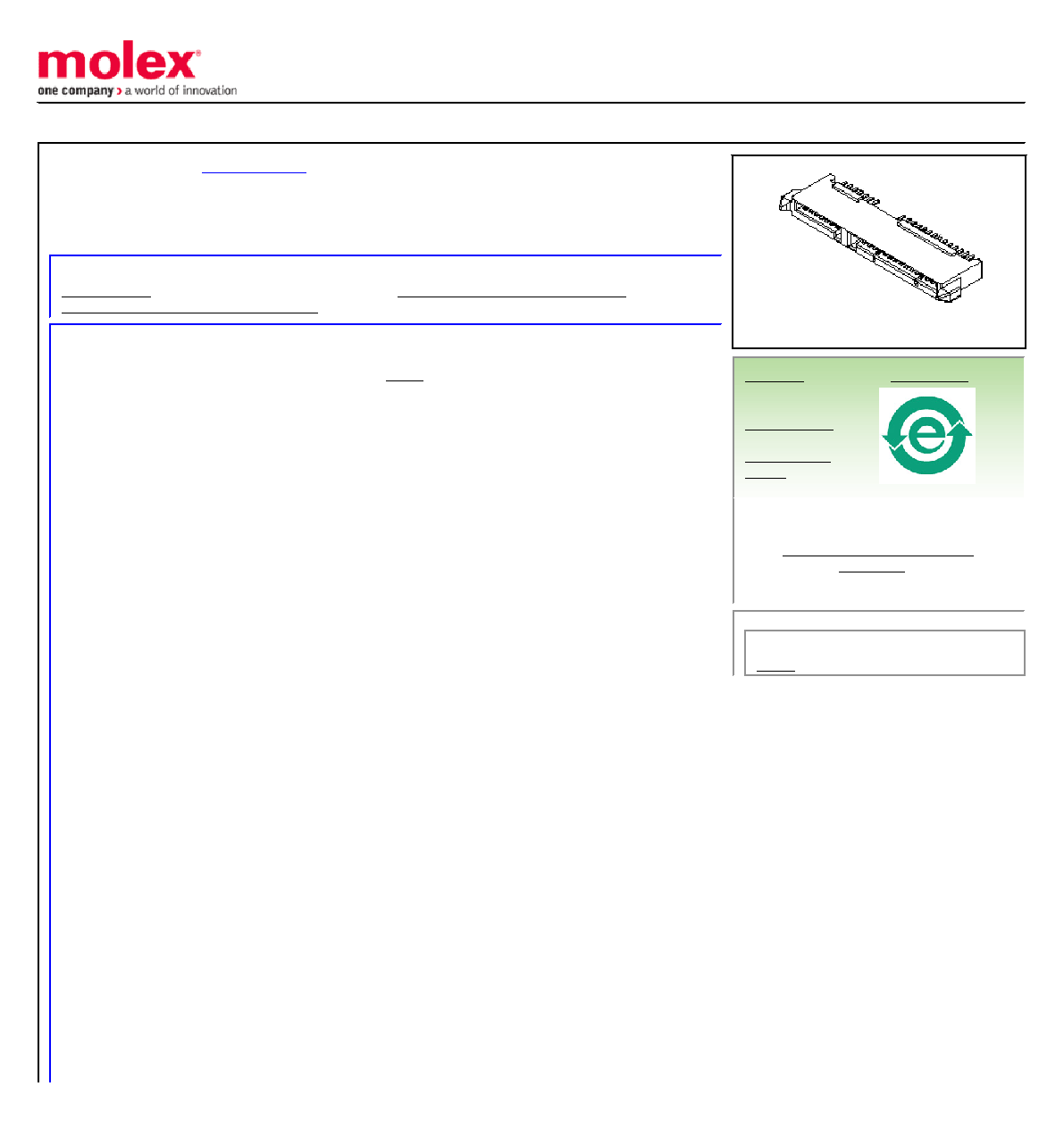

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
1.27mm (.050") Pitch Combo SATA Cable Connector, Straight Type, with Arris on top
surface, with bumps, Gold(Au) Flash Plating, 22 Circuits, Lead Free
Documents:
General
Product Family
I/O Connectors
Series
Application
Wire-to-Board
Comments
Straight Type
Component Type
Receptacle
Overview
Serial ATA Products
Product Name
Serial ATA
Type
N/A
Physical
Boot Color
N/A
Circuits (Loaded)
22
Circuits (maximum)
22
Circuits Detail
Signal 7, Power 15
Color - Resin
Black
Durability (mating cycles max)
50
Gender
Receptacle
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Number of Rows
1
Orientation
Straight
PCB Locator
No
PCB Retention
None
Packaging Type
Tray
Panel Mount
No
Pitch - Mating Interface (in)
0.050 In
Pitch - Mating Interface (mm)
1.27 mm
Pitch - Term. Interface (in)
0.050 In
Pitch - Term. Interface (mm)
1.27 mm
Plating min: Mating (in)
2
Plating min: Mating (m)
0.05
Plating min: Termination (in)
50
Plating min: Termination (m)
1.27
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Ports
2
Temperature Range - Operating
-35°C to +85°C
Termination Interface: Style
Solder or Weld
Waterproof / Dustproof
No
Wire Size AWG
N/A
Electrical
Current - Maximum
1.5A
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
47362 Series
