參數資料
| 型號： | 0474961041 |
| 廠商： | MOLEX INC |
| 元件分類： | 音頻/視頻連接器 |
| 英文描述： | GENERAL PURPOSE AUDIO CONNECTOR |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 29K |
| 代理商： | 0474961041 |
This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
4.00mm (.157") Pitch Pogo Speaker Connector, Height: 2.90mm (.114"), 1.02m (40")
Gold (Au) over Nickel Plating, 2 Circuits
Documents:
General
Product Family
PCB Headers
Series
Application
Board-to-Board
Comments
Action Heights: 2.30mm (.091"), 2.75mm (.108")
Overview
Pogo Pins
Product Name
PoGo Pin
Physical
Breakaway
No
Circuits (Loaded)
2
Circuits (maximum)
2
Color - Resin
Black
Durability (mating cycles max)
2,000
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
None
Material - Metal
Copper
Material - Metal
Piano wire
Material - Plating Mating
Gold
Material - Plating Termination
Gold
Material - Resin
High Temperature Thermoplastic
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.000 In
PC Tail Length (mm)
0.00 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.000 In
PCB Thickness Recommended (mm)
0.00 mm
Packaging Type
Embossed Tape on Reel
Pitch - Mating Interface (in)
0.157 In
Pitch - Mating Interface (mm)
4.00 mm
Pitch - Term. Interface (in)
0.157 In
Pitch - Term. Interface (mm)
4.00 mm
Plating min: Mating (in)
40
Plating min: Mating (m)
1.00
Plating min: Termination (in)
40
Plating min: Termination (m)
1.00
Polarized to Mating Part
No
Polarized to PCB
No
Shrouded
No
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +85°C

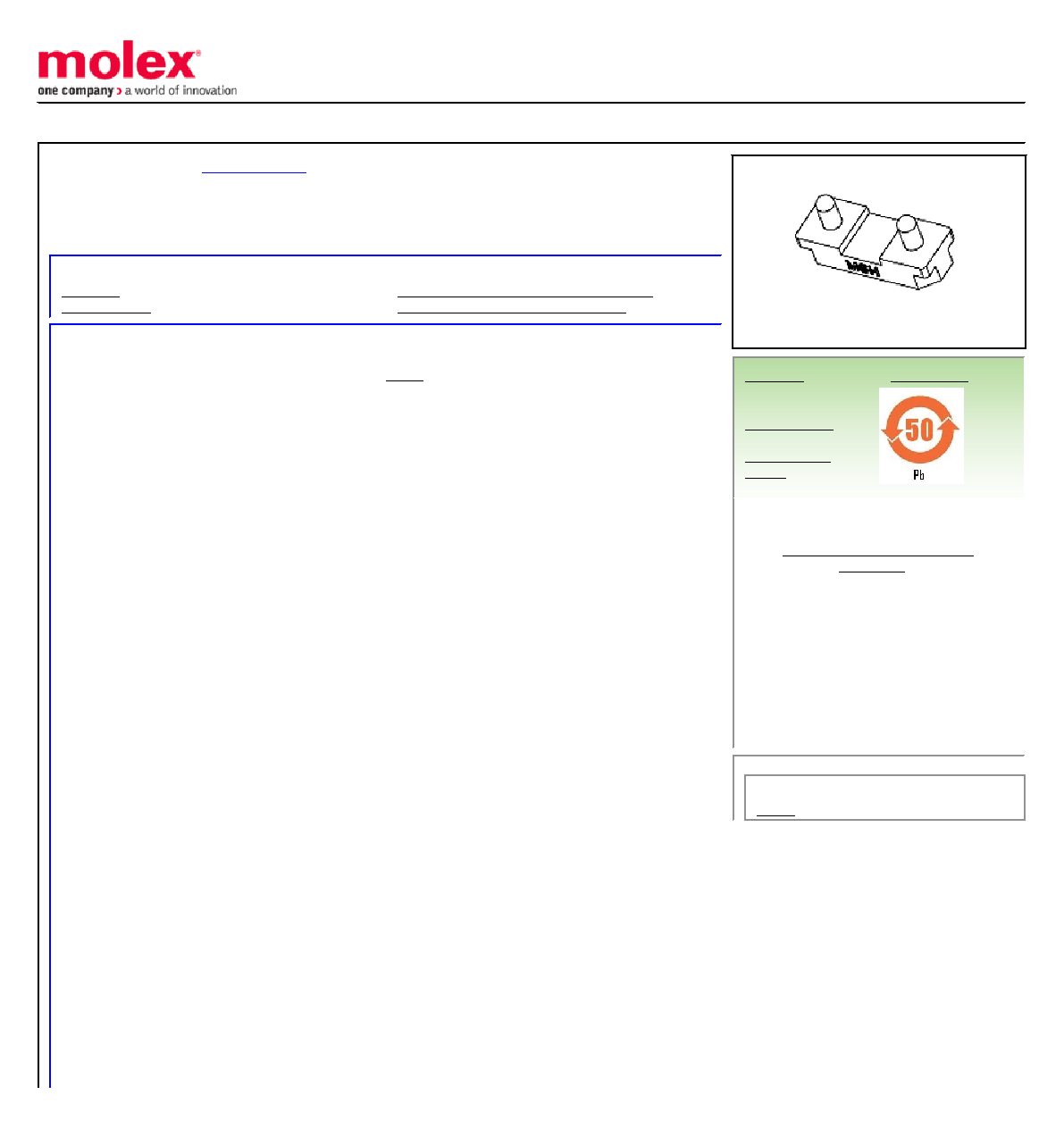

Series image - Reference only
RoHS Compliant by
Exemption
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Duration at Max.
Process Temperature
(seconds)
48
Lead-free Process
Capability
Reflow Capable (SMT
only)
Max. Cycles at Max.
Process Temperature
1
Process Temperature
max. C
250
Search Parts in this Series
47496 Series
