| 型號： | 0480370001 |
| 廠商： | MOLEX INC |
| 元件分類： | 電信和以太網連接器 |
| 英文描述： | 4 CONTACT(S), MALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, PLUG |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 30K |
| 代理商： | 0480370001 |

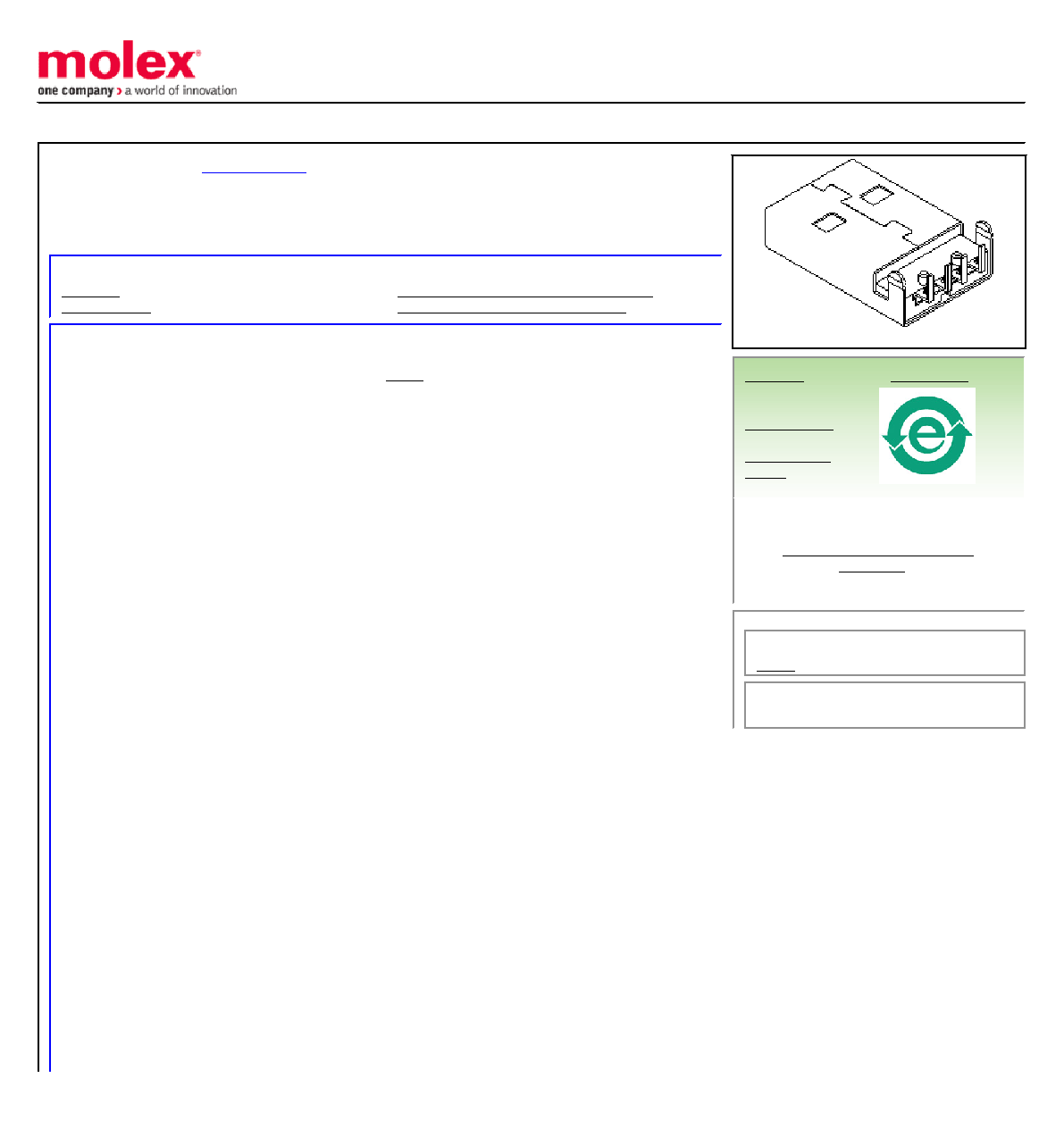

This document was generated on 11/18/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
Universal Serial Bus (USB) Shielded I/O Plug, Type A, Right Angle, Through Hole,
0.76m (30") Gold (Au) Plating, PCB Thickness 1.20mm (.047") to 1.60mm (.063"),
Lead Free
Documents:
General
Product Family
I/O Connectors
Series
Application
Wire-to-Board
Component Type
Plug
Product Name
USB
Type
A
Physical
Boot Color
N/A
Circuits (Loaded)
4
Circuits (maximum)
4
Gender
Plug
Keying to Mating Part
Yes
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Number of Rows
1
Orientation
Right Angle
PC Tail Length (in)
0.094 In
PC Tail Length (mm)
2.40 mm
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
0.045 In
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.20 mm
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Panel Mount
Yes
Pitch - Mating Interface (in)
0.078 In
Pitch - Mating Interface (in)
0.098 In
Pitch - Mating Interface (mm)
2.00 mm
Pitch - Mating Interface (mm)
2.50 mm
Pitch - Term. Interface (in)
0.078 In
Pitch - Term. Interface (in)
0.098 In
Pitch - Term. Interface (mm)
2.00 mm
Pitch - Term. Interface (mm)
2.50 mm
Plating min: Mating (in)
30
Plating min: Mating (m)
0.76
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Ports
1
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-20°C to +85°C
Termination Interface: Style
Through Hole
Waterproof / Dustproof
No
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
48037 Series
Mates With
USB Type A Receptacle
