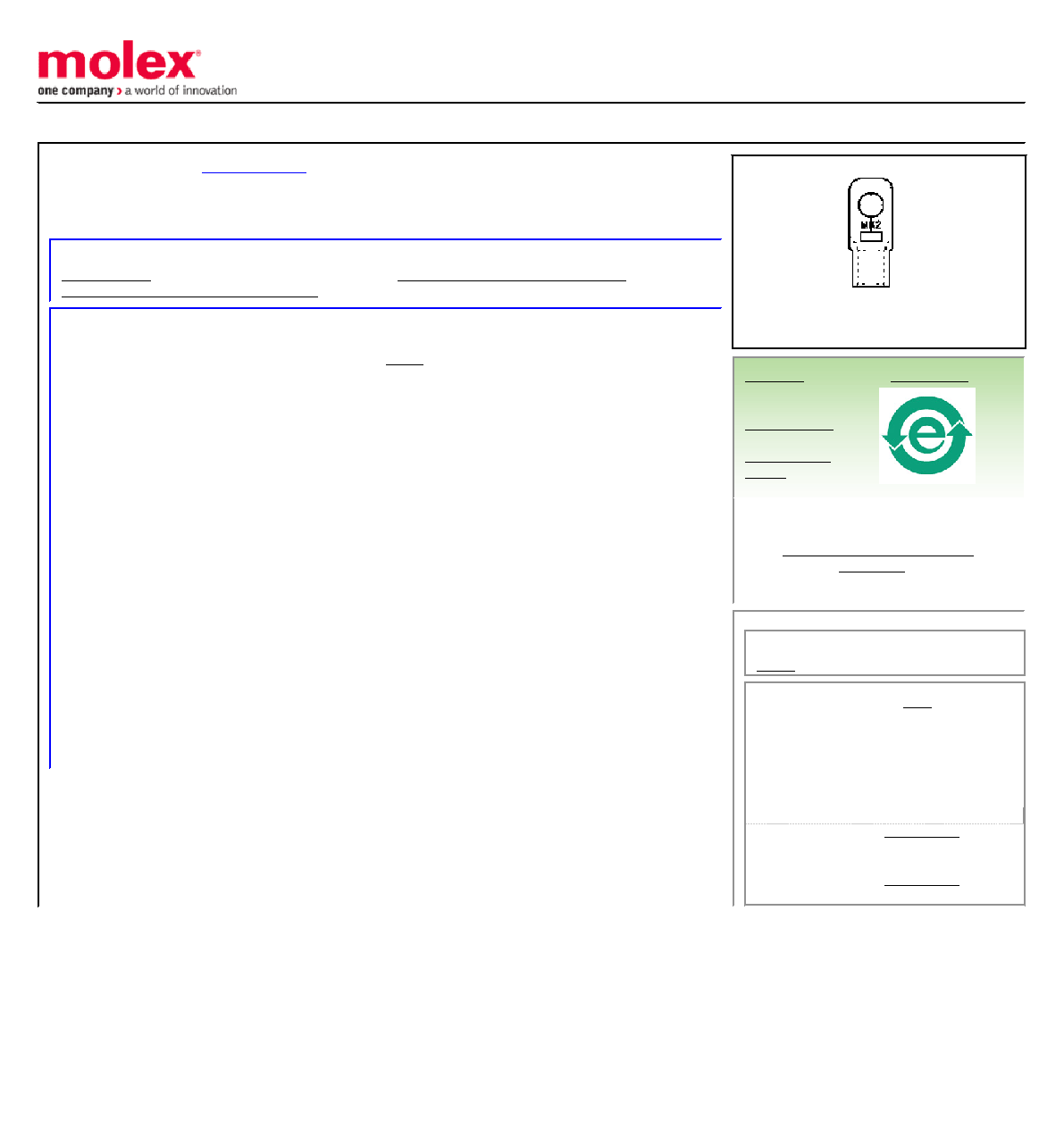

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
Circuit Breaker Terminal for 1/0 AWG, Closed Uninsulated Brazed Barrel, Stud Size
5/16" (M8), Oxygen-Free Copper, Length 46.50mm (1.831")
Documents:
General
Product Family
Ring and Spade Terminals
Series
Mil-Spec
N/A
Product Name
CB (Circuit Breaker)
Type
Rectangular
Physical
Barrel Type
Closed - Brazed
Insulation
None
Material - Plating Mating
Tin
Packaging Type
Bag
Plating min: Mating (in)
40
Plating min: Mating (m)
1
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Stud Size
5/16" (M8)
Termination Interface: Style
Crimp or Compression
Wire Size AWG
1
Wire Size mm
42.42 - 60.57
Electrical
UL
E134962
Material Info
Reference - Drawing Numbers
Product Specification
PS-50449-002
Sales Drawing
SD-50451-7*25
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
50451 Series
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
Battery Type Hand
Crimper For JIS
Terminal
Tool Kit For
57343-9012
This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
