Dimensions are shown in mm (inch)

Dimensions subject to change

127

Assy Insts

RF Coaxial Connectors

Assembly Instructions

AI-762 & AI-763

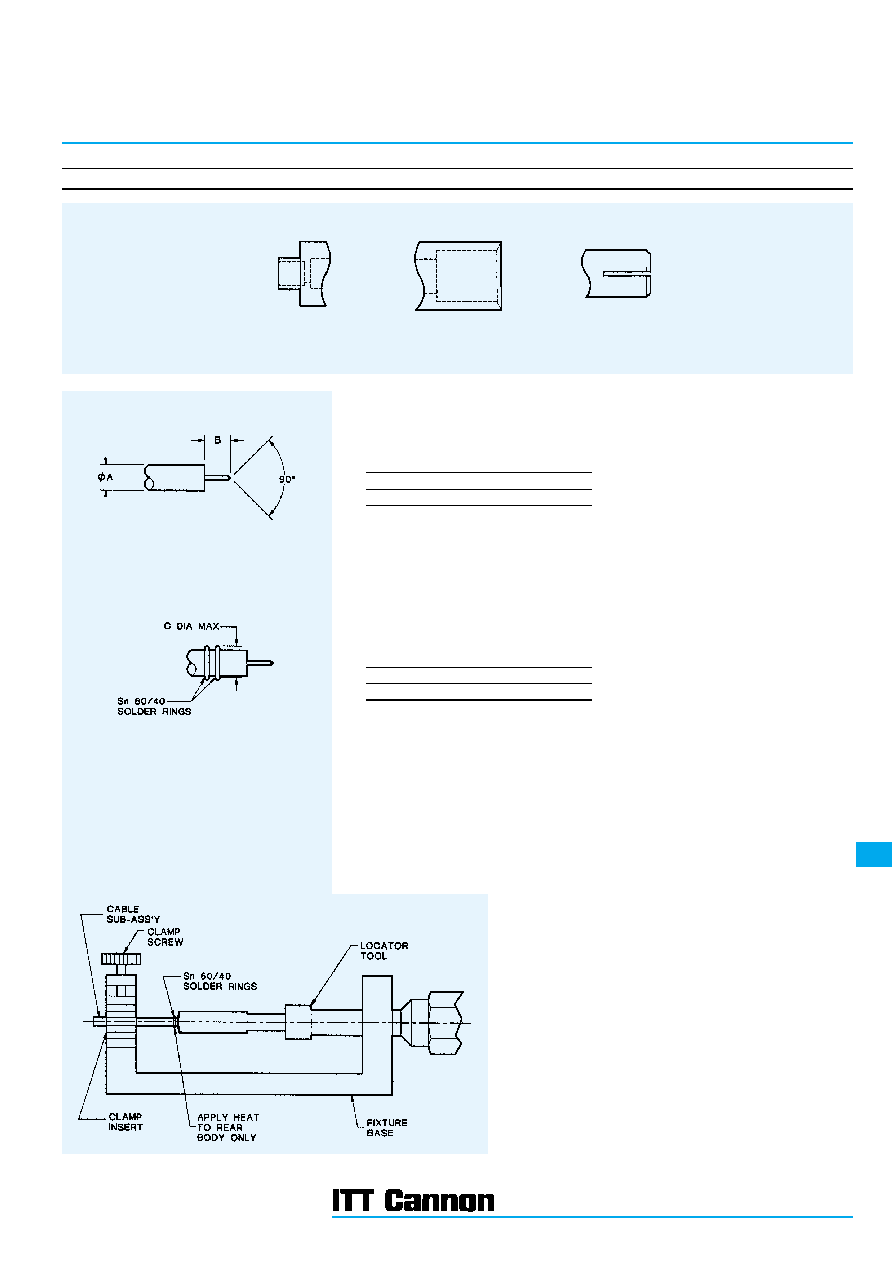

CMM Straight Connectors, Direct Solder Type for Semi-Rigid Cable

1. Trim cable to dimension ‘B’ shown. Being careful not to nick the center conductor.

2. Place two solder rings per table below, over the cable.

3. Place connector in fixture base seated against locator and insert cable into cable entry end of

connector until cable seats firmly. Tighten Clamp screw to secure cable. Tighten locator tool firmly

against connector interface (plug) or front of connector (jack). Slide solder rings against rear body

as shown. Apply sufficient heat to rear body only using an appropriate heat source (solder tongs

with variable control) for solder to flow but using minimum heat cycle.

BODY CABLE ENTRY

PLUG

JACK

Cable Dia. A

1,20 (.047)

2,04 (.080)

Cable Dia.

‘C’ Dia. max

Solder Wire Dia.

1,20 (.047)

1,78 (.070)

0,26 (.010)
