Dimensions are shown in mm (inch)
Dimensions subject to change
124
RF Coaxial Connectors

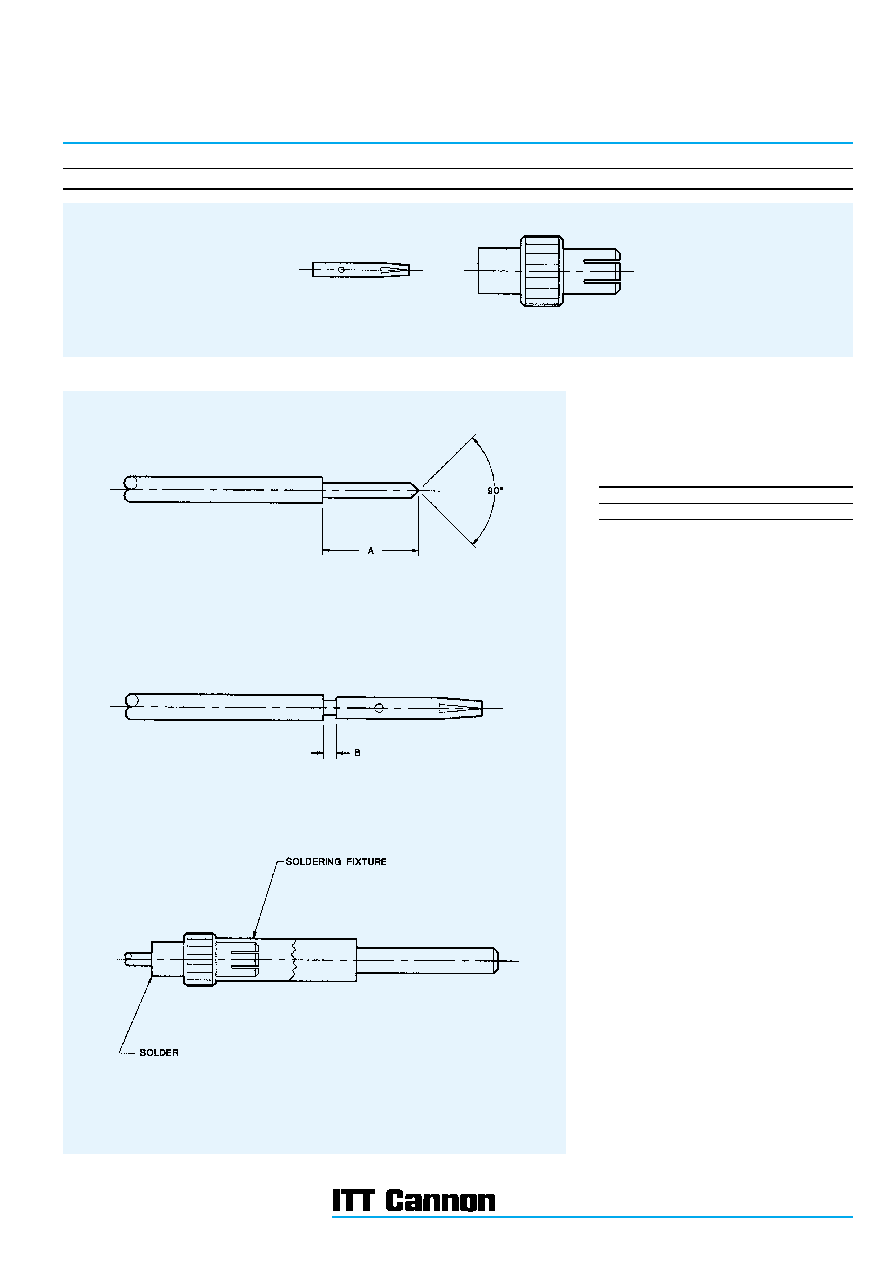

Assembly Instructions
AI-632
SSIS Straight Jack Connectors, Direct Solder Type for Semi-Rigid Cable
1. Trim cable to dimension shown. Being careful not
to nick center conductor.
2. Solder contact to center conductor, maintaining ‘B’
dimension. Remove excess solder from outside of
contact.
3. Insert
body
and
insulator
sub-assembly
completely into soldering fixture (050-000-0930).
Insert cable assembly into rear of sub-assembly
with the contact butting against the soldering
fixture. Apply soft solder to rear of sub-assembly
and heat to make solder connection. Remove
assembly from fixture.
CONTACT
BODY ASSEMBLY
AB
2,29 (.090)
0,25
± 0,025 (.010 ± .001)
