Dimensions are shown in mm (inch)

Dimensions subject to change

121

Assy Insts

RF Coaxial Connectors

Assembly Instructions

AI-480

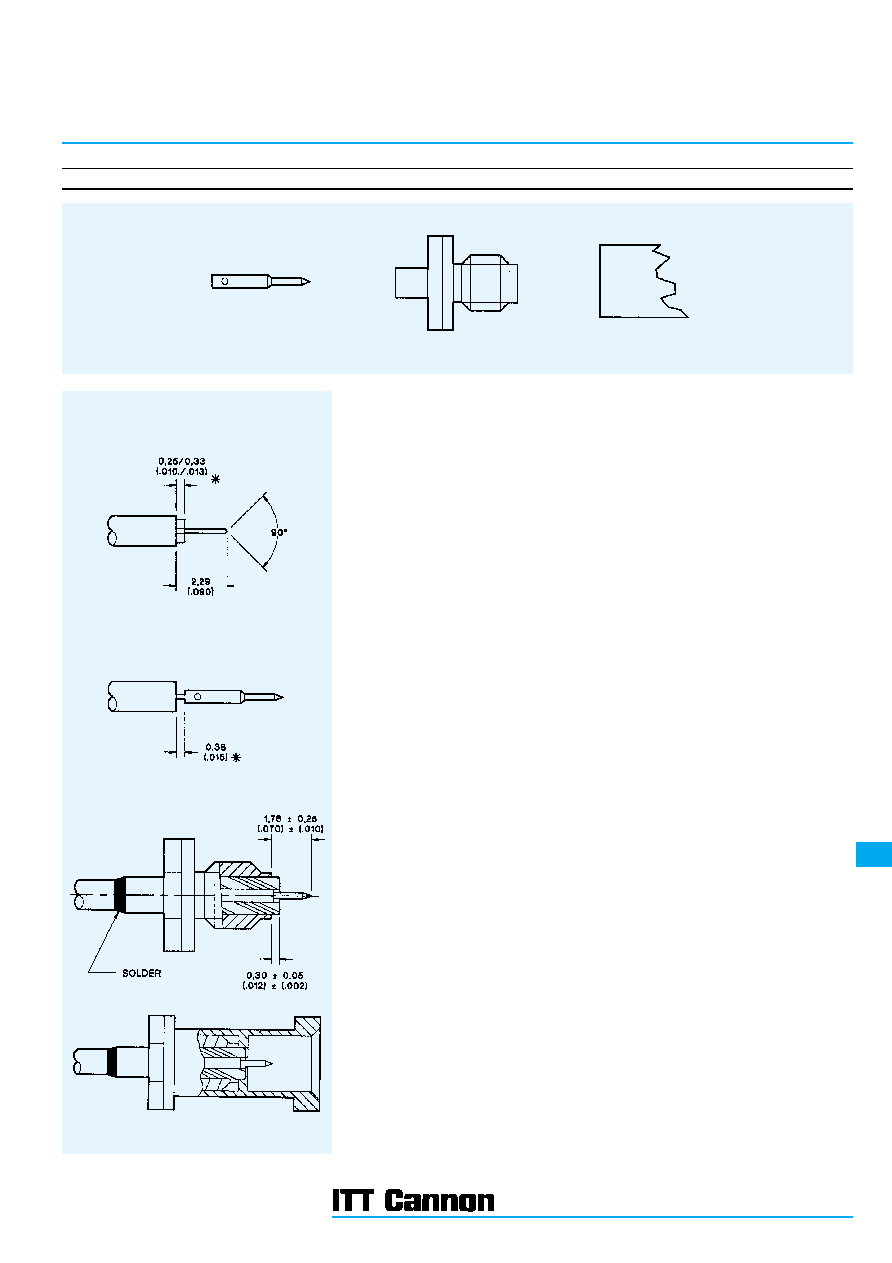

SSIS Straight Plug Connectors, Direct Solder Type for Semi-Rigid Cable

1. Trim cable to dimensions shown, being careful not to nick center conductor. Tin center conductor

(DO NOT OVER TIN).

* Trim dielectric as shown for Belden Conformable cable only.

2. Using a 0,38 (.015) spacer, solder contact to center conductor.

* Use 0,13 (.005) spacer on Belden Conformable cable only.

3. Slide cable into rear of body. Holding securely in this position, solder body to cable.

4. Insert into rear of bushing and tighten with a torque of 0,21 Nm (30 in. ozs.)

CONTACT

BODY

BUSHING
