參數資料
| 型號： | 0520303029 |
| 廠商： | MOLEX INC |
| 元件分類： | SMT連接器& FFC/FPC |
| 英文描述： | 30 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SOLDER, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 28K |
| 代理商： | 0520303029 |

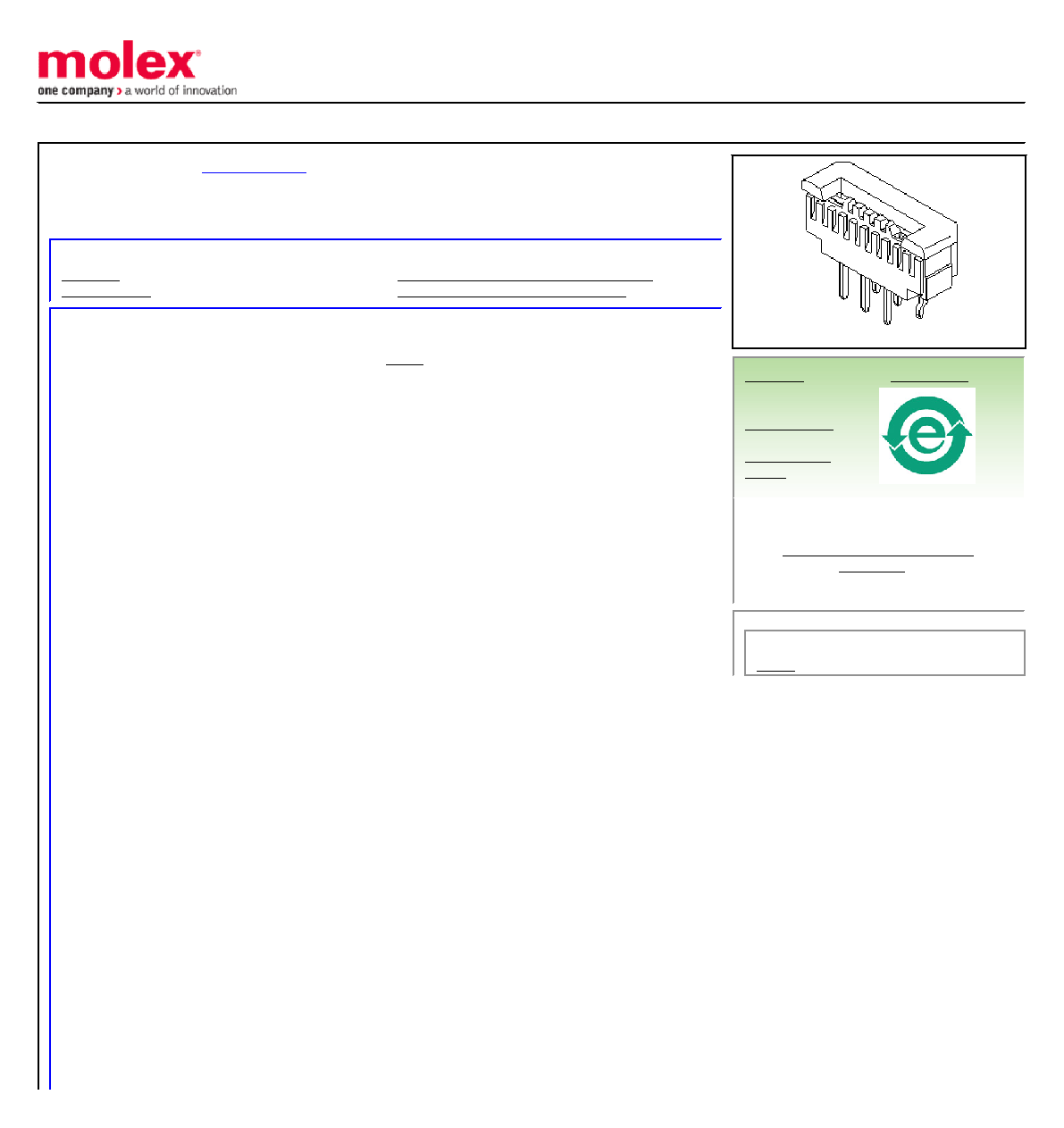

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
1.00mm (.039") Pitch FFC/FPC Connector, Through-Hole, Vertical, ZIF Receptacle, 30
Circuits, Lead-free
Documents:
General
Product Family
FFC/FPC Connectors
Series
Product Name
N/A
Physical
Circuits (Loaded)
30
Contact Position
N/A
Durability (mating cycles max)
30
Entry Angle
Vertical
Mated Height (in)
0.205 In
Mated Height (mm)
5.20 mm
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin-Bismuth
Material - Plating Termination
Tin-Bismuth
Material - Resin
Nylon
Material - Resin
Polyester
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.126 In
PC Tail Length (mm)
3.20 mm
PCB Retention
Yes
PCB Thickness Recommended (in)
0.063 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.039 In
Pitch - Mating Interface (mm)
1.00 mm
Polarized to PCB
No
Stackable
No
Temperature Range - Operating
-20°C to +80°C
Termination Interface: Style
Through Hole
Wire/Cable Type
FFC/FPC
Electrical
Current - Maximum
1A
Voltage - Maximum
50V
Material Info
Reference - Drawing Numbers
Product Specification
PS-52030-004
Product Specification
RPS-52030-003
Product Specification
RPS-52030-004
Product Specification
RPS-52030-005
Product Specification
RPS-52030-006
Product Specification
RPS-52030-017
Product Specification
RPS-52030-018
Product Specification
RPS-52030-019
Product Specification
RPS-52030-020
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52030 Series
