| 型號： | 0520441645 |
| 廠商： | MOLEX INC |
| 元件分類： | SMT連接器& FFC/FPC |
| 英文描述： | 16 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, RECEPTACLE |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 29K |
| 代理商： | 0520441645 |

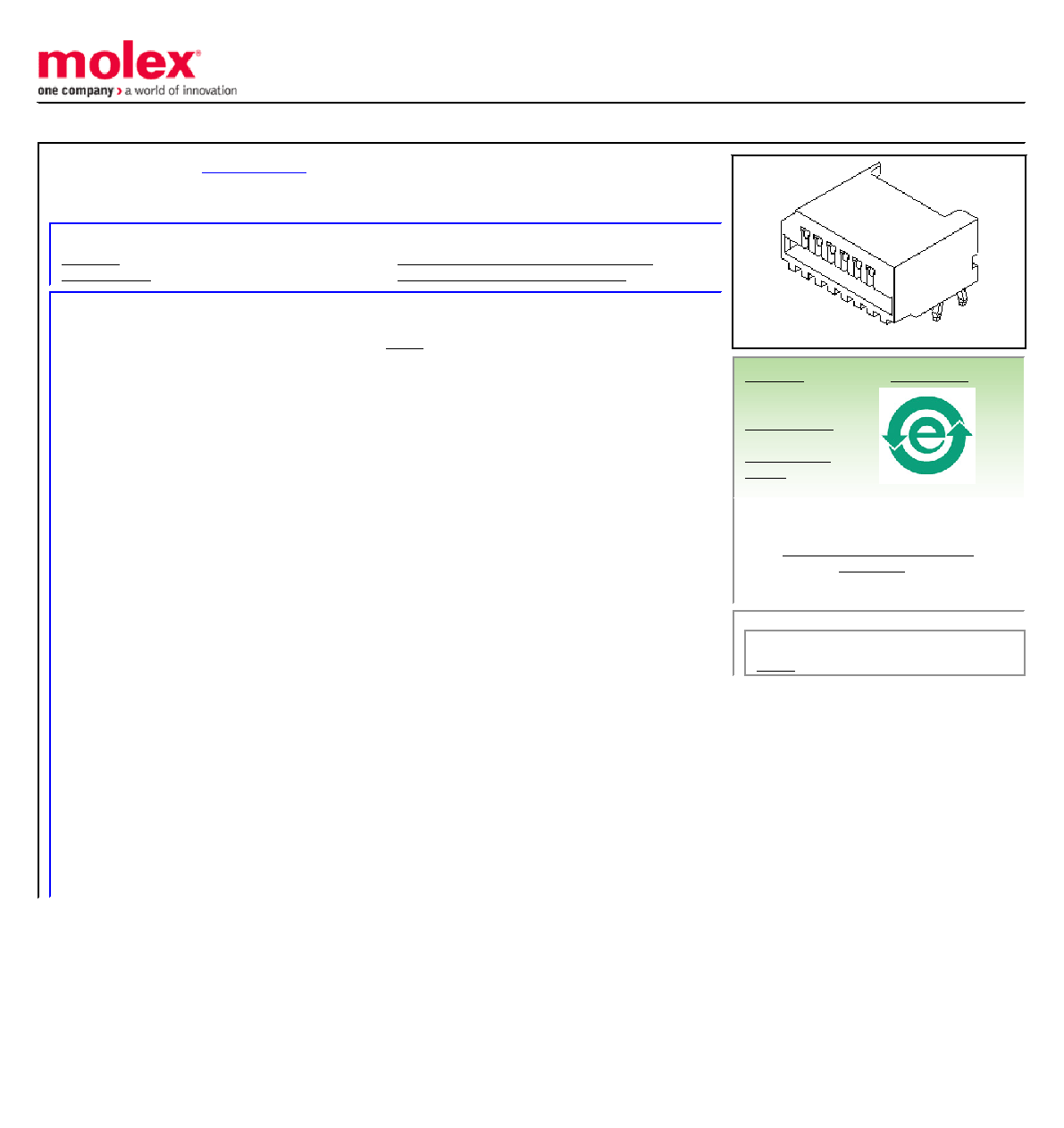

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
1.25mm (.049") Right Angle, Non-ZIF, Top Contact Style Receptacle, 16 Circuits
Documents:
General
Product Family
FFC/FPC Connectors
Series
Product Name
N/A
Physical
Circuits (Loaded)
16
Contact Position
Top
Entry Angle
90° Angle
Flammability
94V-0
Mated Height (in)
0.201 In
Mated Height (mm)
5.10 mm
Number of Rows
1
Orientation
Right Angle
PC Tail Length (in)
0.138 In
PC Tail Length (mm)
3.50 mm
PCB Retention
None
Packaging Type
Tray
Pitch - Mating Interface (in)
0.049 In
Pitch - Mating Interface (mm)
1.25 mm
Polarized to PCB
Yes
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +85°C
Termination Interface: Style
Through Hole
Wire/Cable Type
FFC/FPC
Electrical
Current - Maximum
0.5A
Current - Maximum
1A
UL
E29179
Voltage - Maximum
200V
Material Info
Reference - Drawing Numbers
Product Specification
PS-52044-002
Sales Drawing
SD-52044-**45
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52044 Series
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
