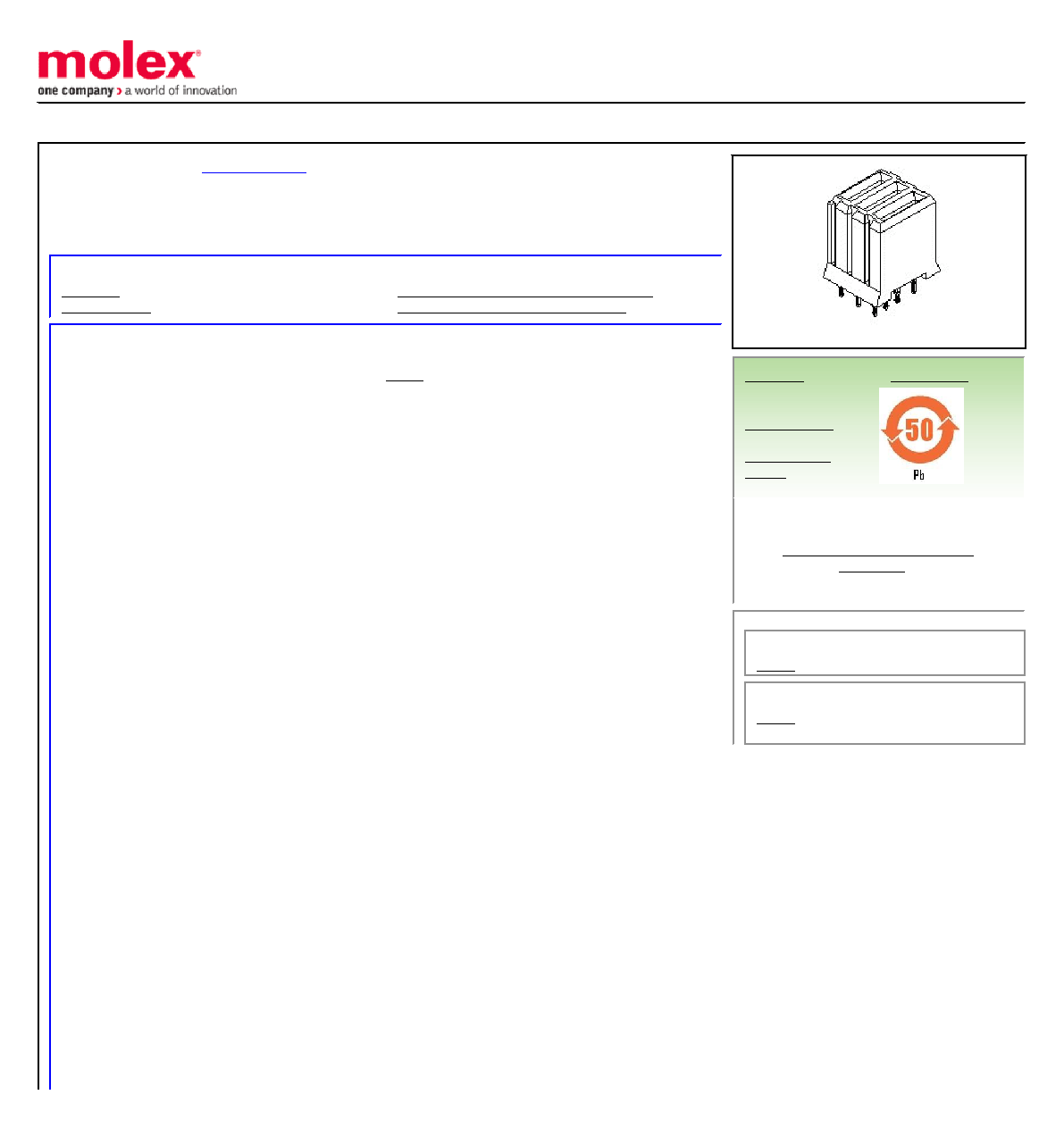

This document was generated on 11/30/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
3.00mm (.012") Pitch MZP Hard Metric Board-to-Board PCB Receptacle, Power
Type, Vertical, 3 Circuits
Documents:
General
Product Family
Backplane Connectors
Series
Application
Backplane
Component Type
PCB Receptacle
Overview
MZP™
Product Name
MZP
Style
N/A
Physical
Circuits (Loaded)
3
Circuits (maximum)
3
Color - Resin
Natural
Durability (mating cycles max)
125
First Mate / Last Break
No
Guide to Mating Part
No
Keying to Mating Part
None
Material - Plating Mating
Gold
Material - Plating Termination
Tin-Lead
Material - Resin
High Temperature Thermoplastic
Number of Columns
N/A
Number of Pairs
Open Pin Field
Number of Rows
4
Orientation
Vertical
PC Tail Length (in)
0.146 In
PC Tail Length (mm)
3.70 mm
PCB Retention
Yes
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.118 In
Pitch - Mating Interface (mm)
3.00 mm
Plating min: Mating (in)
50.8
Plating min: Mating (m)
1.27
Plating min: Termination (in)
20
Plating min: Termination (m)
0.5
Polarized to PCB
Yes
Temperature Range - Operating
-55°C to +125°C
Termination Interface: Style
Through Hole - Compliant Pin
Electrical
Current - Maximum
7.8A
Data Rate
622.0 Mbps
Voltage - Maximum
500V
Material Info
Reference - Drawing Numbers
Series image - Reference only
RoHS Compliant by
Exemption
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54745 Series
Mates With
55573 MZP Hard Metric Board-to-Board
PCB Plug
