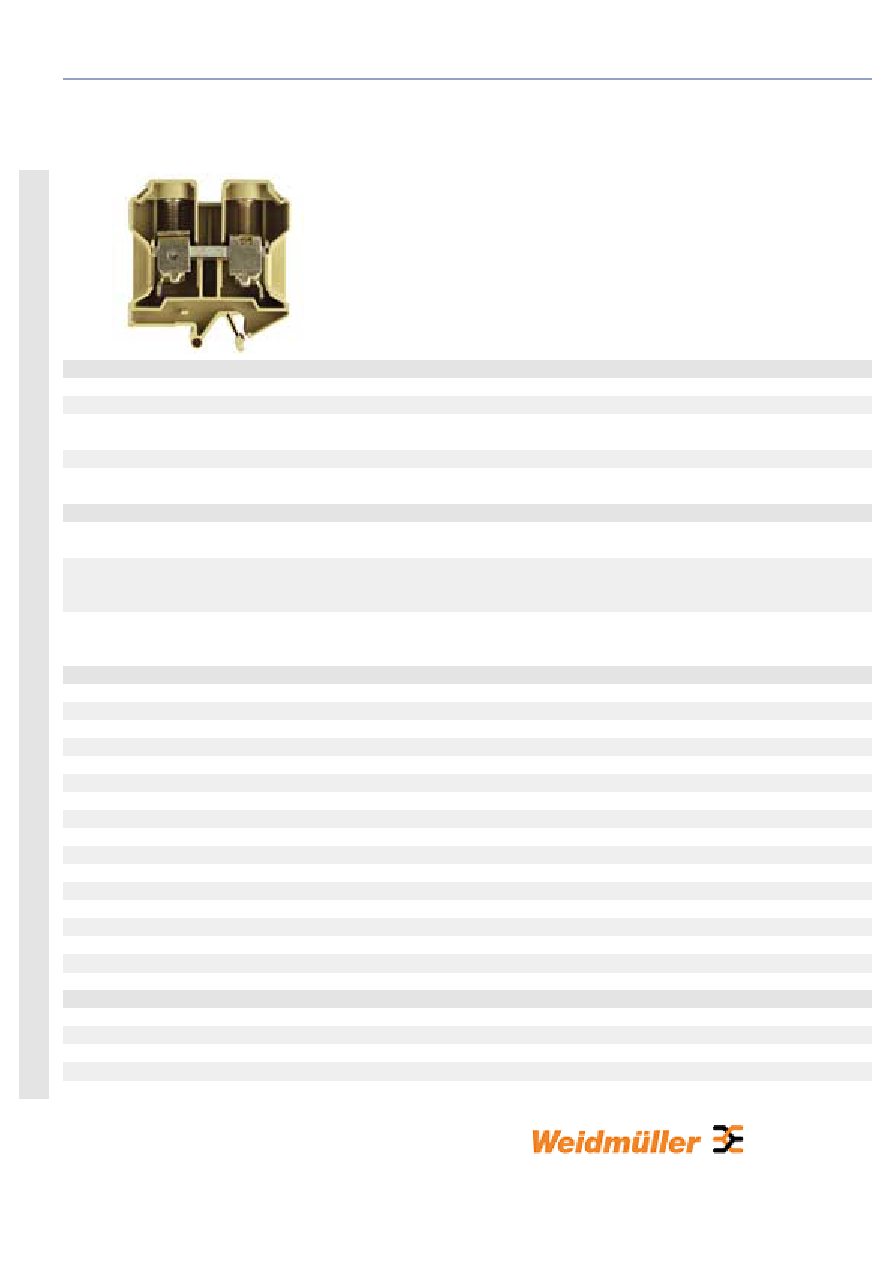

Product catalogue | Terminals | Screwing technology | SAK-series modular terminals | TS 32 | Polyamide PA 6.6 |
Modular feed-through terminals | 35 mm
- 1 -
General ordering data
Order No.
0550660000
Part designation
SAK 35N
Version
Feed-through terminal, 35 mm, Screw
connection, PA 66, beige, TS 32
EAN
4008190165925
Qty.
20 pc(s).
Product notes
Note, ordering data
It is possible to use twin ferrules with identical
rated voltages (LAB 13090).
Note, technical data
The tightening torque is 4.5 Nm for 16 - 50 mm
and AWG 6 - 2/7 stranded conductors. Twin wire
end ferrules ZH 2.5 - ZH 16 can be used.
Note, accessories
If QIs are aligned side by side, then a TW/AP must
be used.
Additional technical data
Colour of insulating material
beige
Connection direction
on side
End plate required
Yes
Explosion-tested version "Ex e"
No
Installation advice
TS 32
Insulating material
PA 66
Levels cross-connected internally
No
No. of identical terminals
1
No. of levels
1
No. of terminal strips per level
2
Open sides
right
Operating temperature range
- 50 °C, + 100 °C
Type of connection
Screwed
Type of mounting
Clamped
UL 94 flammability rating of insulation material
V2
Version
Feed-through terminal
CSA rating data
Voltage (CSA)
600 V
CSA current
120 A
Min. cross-section (CSA)
AWG 12
Max. cross-section (CSA)
AWG 2
