This document was generated on 11/04/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.54mm (.100") Pitch QF-50 Flat Ribbon Cable Header, Dual Row, Right Angle,
Shrouded Header with Eject Levers, 14 Circuits, Lead-free
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Overview
QF-50™
Product Name
QF-50
Physical
Breakaway
No
Circuits (Loaded)
14
Circuits (maximum)
14
Color - Resin
Black
Durability (mating cycles max)
500
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Material - Resin
Polyester
Number of Rows
2
Orientation
Right Angle
PC Tail Length (in)
0.118 In
PC Tail Length (mm)
3.00 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.100 In
Pitch - Mating Interface (mm)
2.54 mm
Plating min: Mating (in)
12
Plating min: Mating (m)
0.3
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Polarized to Mating Part
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-40°C to +85°C
Termination Interface: Style
Through Hole
Electrical
Current - Maximum
1A
Voltage - Maximum
300V

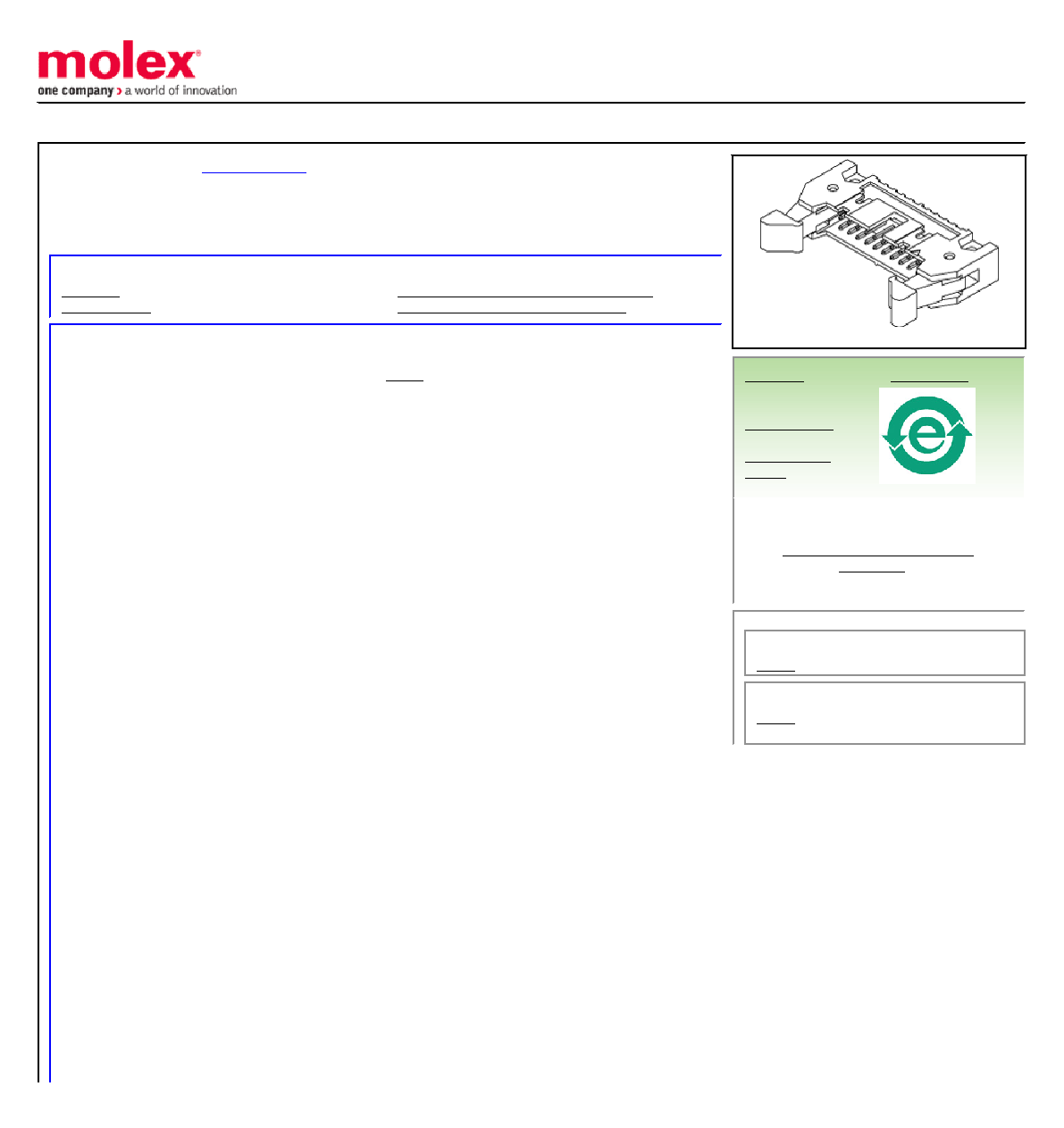

Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55638 Series
Mates With
54559 QF-50 Flat Cable Receptacle
Housing
