參數資料
| 型號： | 0557590570 |
| 廠商： | MOLEX INC |
| 元件分類： | 接線盒 |
| 英文描述： | 16 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 33K |
| 代理商： | 0557590570 |

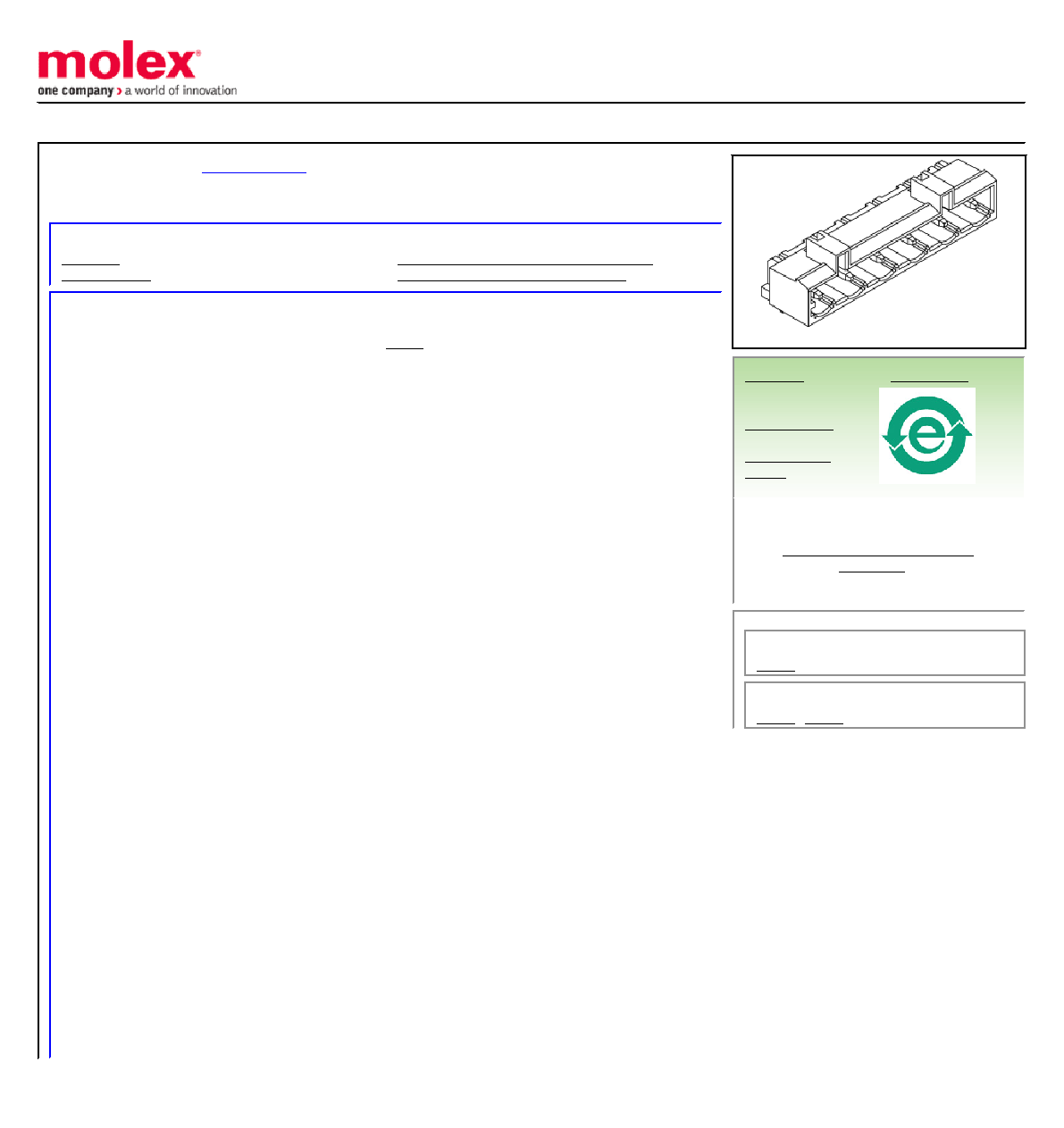

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
7.50mm (.295") Pitch MTC Right Angle PCB Header, 5 Circuits Version, White Color
Documents:
General
Product Family
Terminal Blocks
Series
Application
Wire-to-Board
Component Type
PCB Header
Product Name
MTC
Type
Euro Block
Physical
Circuits (Loaded)
5
Color - Resin
Natural
Entry Angle
N/A
Flammability
94V-0
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Nylon
Number of Rows
1
Orientation
Right Angle
PC Tail Length (in)
0.149 In
PC Tail Length (mm)
3.80 mm
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Panel Mount
No
Pitch - Mating Interface (in)
0.295 In
Pitch - Mating Interface (mm)
7.50 mm
Plating min: Mating (in)
120
Plating min: Mating (m)
3
Plating min: Termination (in)
120
Plating min: Termination (m)
3
Polarized to Mating Part
Yes
Shrouded
Closed Ends
Stackable
No
Temperature Range - Operating
-30°C to +85°C
Termination Interface: Style
Through Hole
Wire Size AWG
N/A
Electrical
CSA
LR19980
Current - Maximum
16A
UL
E29179
Voltage - Maximum
400V
Material Info
Reference - Drawing Numbers
Product Specification
PS-51241-005
Sales Drawing
SD-55759-004
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55759 Series
Mates With
