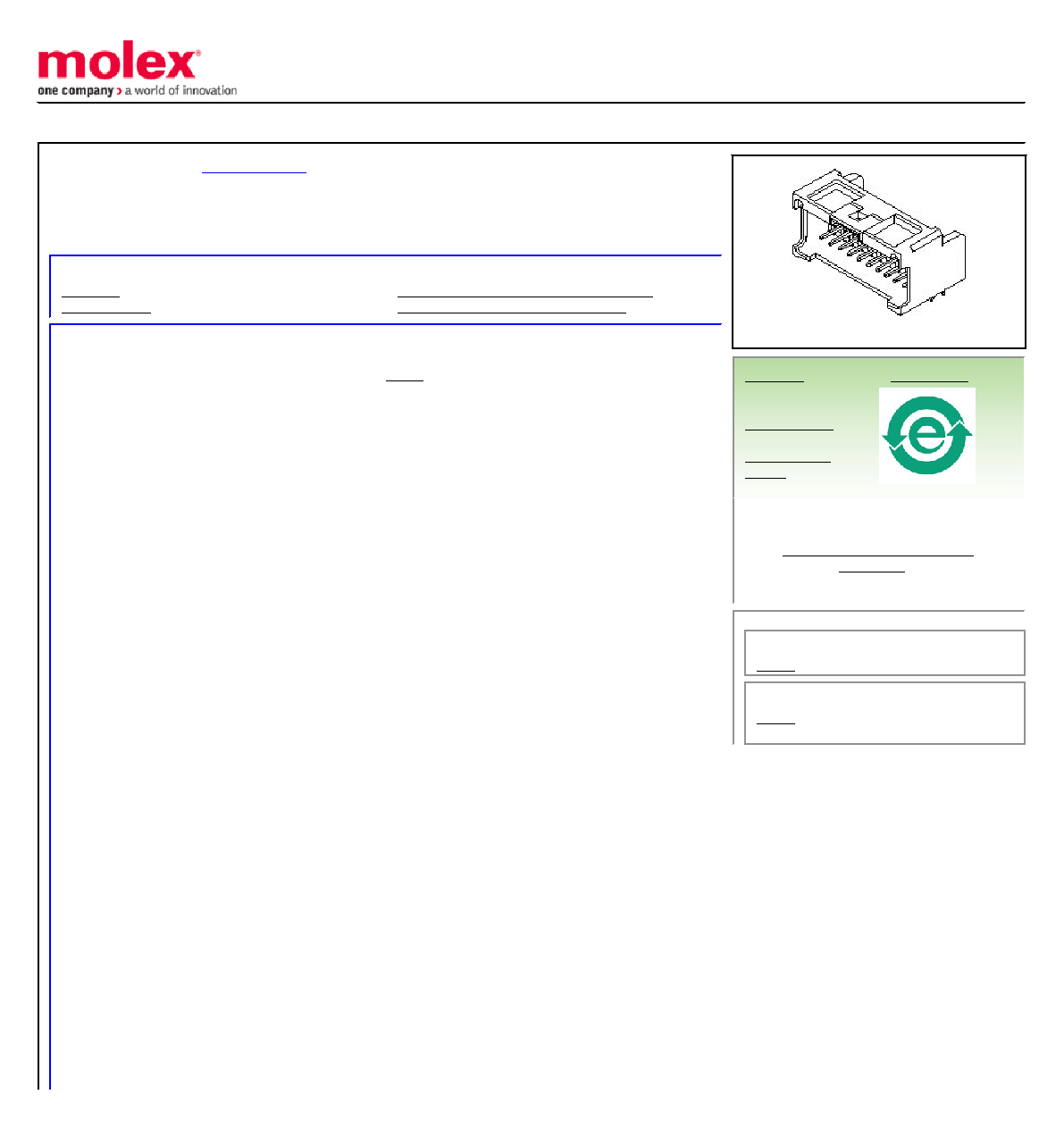

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.00mm (.079") Pitch MicroClasp Wire-to-Board Header, Dual Row, Right Angle, 36
Circuits
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Overview
MicroClasp™
Product Name
MicroClasp
Physical
Breakaway
No
Circuits (Loaded)
36
Circuits (maximum)
36
Color - Resin
Natural
Durability (mating cycles max)
30
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Polyester
Number of Rows
2
Orientation
Right Angle
PC Tail Length (in)
0.126 In
PC Tail Length (mm)
3.20 mm
PCB Locator
No
PCB Retention
Yes
PCB Thickness Recommended (in)
0.045 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Tray
Pitch - Mating Interface (in)
0.079 In
Pitch - Mating Interface (mm)
2.00 mm
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
-25°C to +85°C
Termination Interface: Style
Through Hole
Electrical
Current - Maximum
3A
Voltage - Maximum
250V
Material Info
Reference - Drawing Numbers
Product Specification
PS-51353-003
Product Specification
RPS-51353-008
Product Specification
RPS-51353-009
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55959 Series
Mates With
51353 MicroClasp Wire-to-Board
Receptacle Housing
