參數資料
| 型號： | 0561949128 |
| 廠商： | MOLEX INC |
| 元件分類： | 終端 |
| 英文描述： | TIN (40) FINISH, WIRE TERMINAL |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 31K |
| 代理商： | 0561949128 |

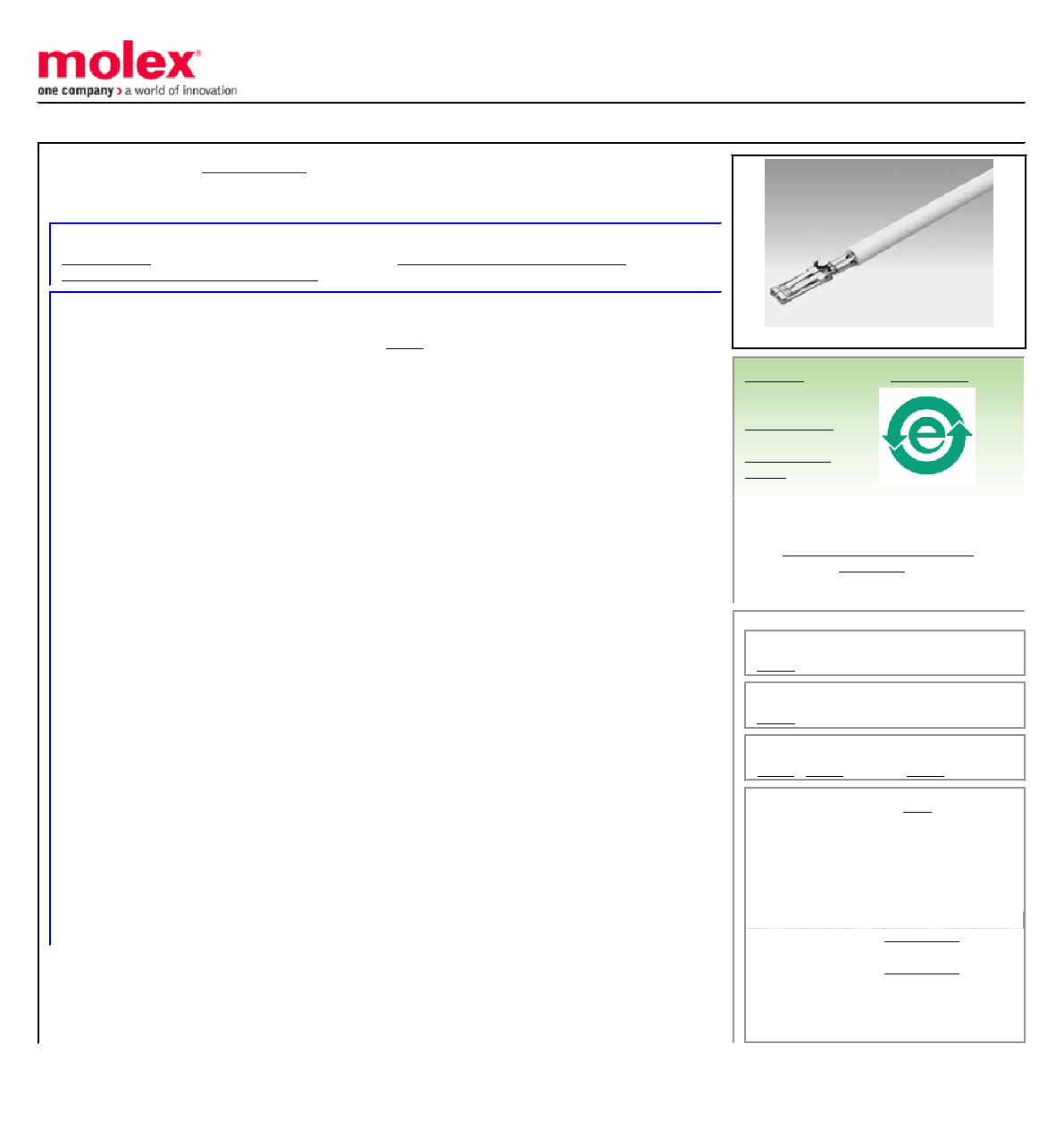

This document was generated on 11/06/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
CRC Shielded Rectangular I/O Receptacle Terminal, Power, Lead-free, Loose
Documents:
General
Product Family
I/O Connectors
Series
Application
Panel-Mount
Application
Wire-to-Wire
Component Type
Terminal
Product Name
CRC
Type
N/A
Physical
Circuits (Loaded)
N/A
Gender
Receptacle
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Orientation
Vertical
Packaging Type
Bag
Panel Mount
N/A
Pitch - Mating Interface (in)
0.000 In
Pitch - Mating Interface (mm)
0.00 mm
Plating min: Mating (in)
10
Plating min: Mating (m)
0.25
Plating min: Termination (in)
40
Plating min: Termination (m)
1
Polarized to Mating Part
N/A
Temperature Range - Operating
-40°C to +105°C
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
3.80mm (.150") max.
Wire Size AWG
14
Wire Size AWG
16
Wire Size AWG
18
Electrical
Current - Maximum
15A
Voltage - Maximum
250V
Material Info
Reference - Drawing Numbers
Product Specification
PS-51300-005
Sales Drawing
SD-56194-003
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
56194 Series
Mates With
56193 Plug Terminal
Use With
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool for
Crimp Terminals
Hand Tool for CRC
(Compact Robot
Connector) Power
Crimp Sockets,
14-18 AWG
