| 型號： | 0579649702 |
| 廠商： | MOLEX INC |
| 元件分類： | 終端 |
| 英文描述： | 0.5 mm2, BRASS, TIN FINISH, WIRE TERMINAL |
| 封裝： | HALOGEN FREE AND ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大小： | 32K |
| 代理商： | 0579649702 |
This document was generated on 11/06/2009

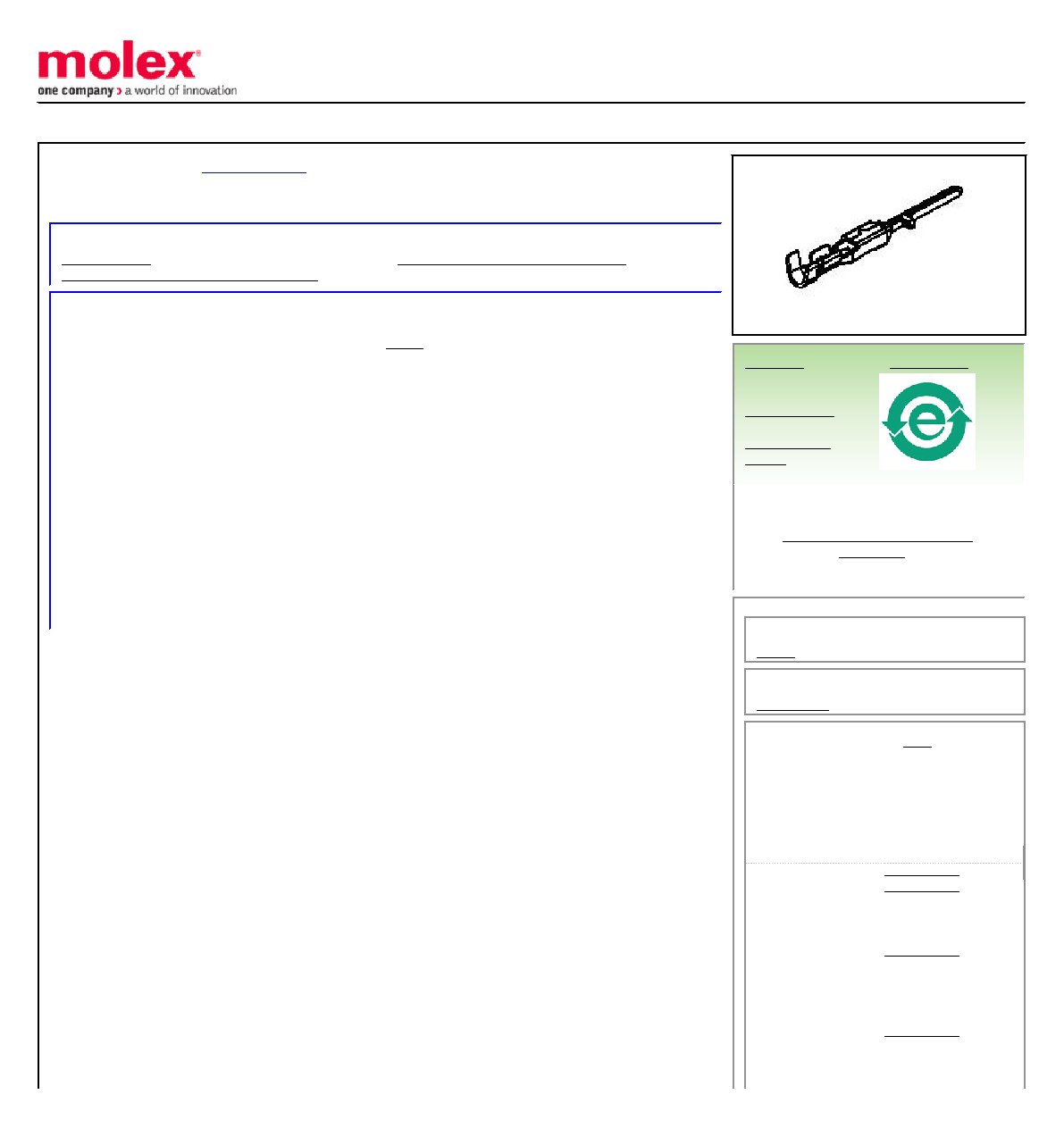

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
1.52mm (.060") OBD-;II Male Terminal for AVS(CAVS) 0.3-0.5
Documents:
General
Product Family
Crimp Terminals
Series
Product Name
OBD-II
Physical
Gender
Male
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Packaging Type
Reel
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
1.40-2.30mm(.055-.091")
Wire Size AWG
N/A
Wire Size mm
AVS (CAVS) 0.3 TO 0.5
Material Info
Reference - Drawing Numbers
Product Specification
PS-68503-001
Sales Drawing
SD-57964-002
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
57964 Series
Use With
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
Fine Adjust
Applicator for
1.52mm (.060")
Female Terminal
T2 Terminator for
OBD II 1.52mm
(.060") Crimp
Terminal for 20-22
AWG
Hand Crimp
Tool for OBD II
1.52mm (.060")
Crimp Terminal,
