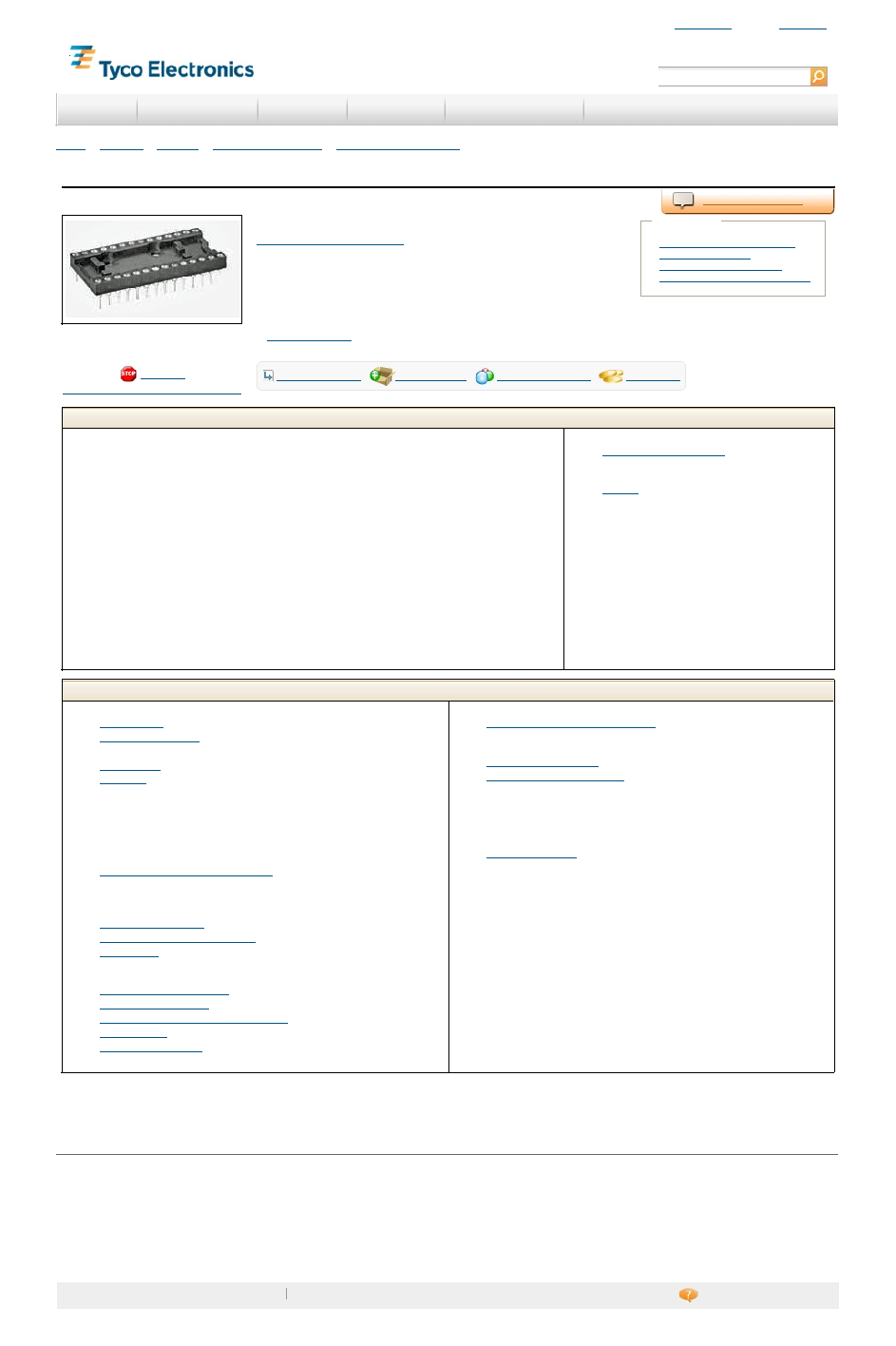

1-345836-4 Product Details
1-345836-4
T E I nternal N umber: 1 -3 4 5 8 3 6 -4
DIP Sockets
Product Highlights:
l
Socket Style = Standard
l
Through Hole Contact Termination Type
l
2.54 mm Centerline
l
Row-to-Row Spacing = 10.16 mm
l
24 Positions
Quick Links
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Related Products:
l
Product Features (Please use the Product Drawing for all design activity)
Product Type Features:
l
Socket Style = Standard
l
Number of Positions = 24
l
Profile = Standard
l
Frame Style = Closed
l
Leg Style = Wire Wrap
Electrical Characteristics:
l
Insulation Resistance (M?) = 10,000
l
Contact Resistance (m?) = 30
Termination Related Features:
l
Termination Post Length (mm [in]) = 6.60 [0.260]
l
Solder Tail Contact Plating = Tin-Lead over Nickel
Body Related Features:
l
Centerline (mm [in]) = 2.54 [0.100]
l
Row-to-Row Spacing (mm [in]) = 10.16 [0.400]
l
Mount Style = Vertical
Contact Related Features:
l
Contact Termination Type = Through Hole
l
Contact Base Material = Beryllium Copper
l
Contact Plating, Mating Area, Material = Gold (30)
l
Contact Style = Screw Machine
l
Mating Contact Type = Inner Spring
Configuration Related Features:
l
Height Above PC Board (mm [in]) = 2.80 [0.110]
Industry Standards:
l
RoHS/ELV Compliance = Not ELV/RoHS compliant
l
Lead Free Solder Processes = Wave solder capable to 240?C
Conditions for Usage:
l
Temperature Range (?C) = 105
Packaging Related Features:
l
Packaging Method = Tube
Other:
l
Brand = AMP
