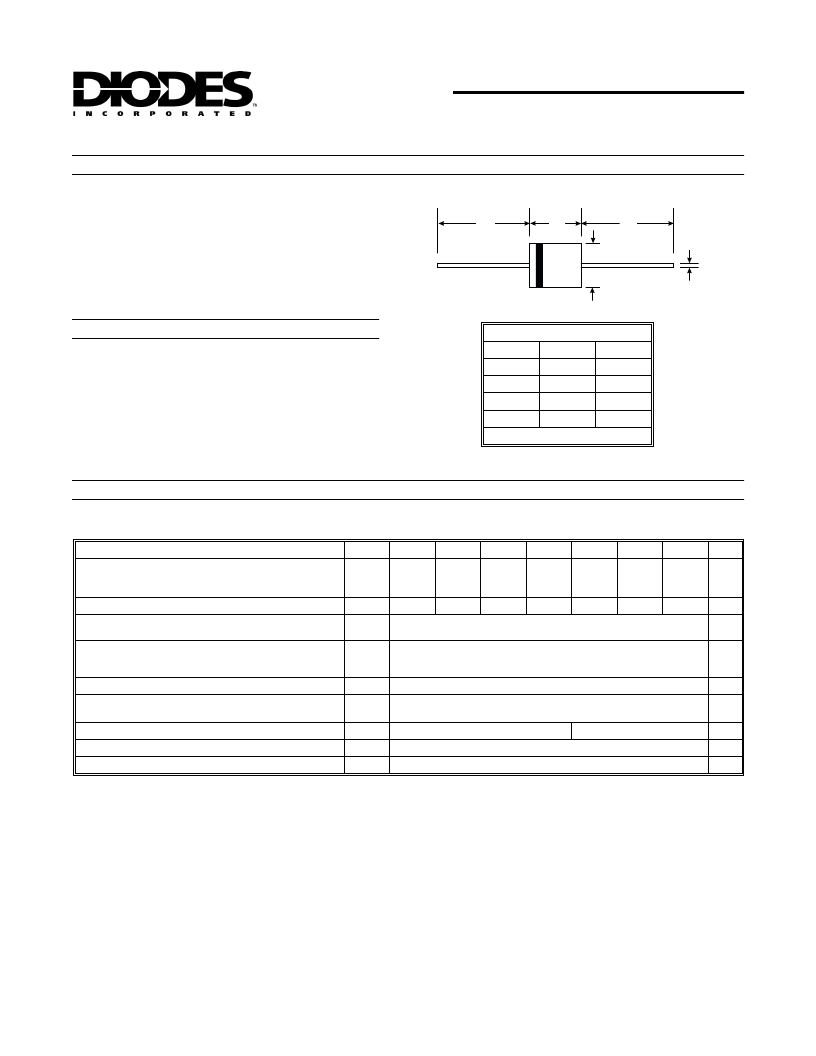

DS28010 Rev. B-2
1 of 2
10A01-10A07
10A01 - 10A07
10A RECTIFIER
Features
A
A
B
C
D
R-6
Dim
Min
Max
A
25.40
—
B
8.60
9.10
C
1.20
1.30
D
8.60
9.10
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
Diffused Junction
High Current Capability and Low Forward
Voltage Drop
Surge Overload Rating to 600A Peak
Low Reverse Leakage Current
Plastic Material - UL Flammability
Classification 94V-0
Mechanical Data
Case: Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 2.1 grams (approx)
Marking: Type Number
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Symbol
10A01
10A02
10A03
10A04
10A05
10A06
10A07
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
50
100
200
400
600
800
1000
V
RMS Reverse Voltage
V
R(RMS)
35
70
140
280
420
560
700
V
Average Rectified Output Current
(Note 1)
@ T
A
= 50°C
I
O
10
A
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load
(JEDEC Method)
I
FSM
600
A
Forward Voltage
@ I
F
= 10A
V
FM
1.0
V
10Peak Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25°C
@ T
A
= 100°C
I
RM
10
100
μA
Typical Junction Capacitance (Note 2)
C
j
150
80
pF
Typical Thermal Resistance Junction to Ambient
R
JA
10
K/W
Operating and Storage Temperature Range
T
j,
T
STG
-65 to +150
°C
Notes:
1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
