Surface Mount Fuse
Marked
DOCUMENT: SCD26134
PCN: D17193
REV LETTER: C
REV DATE: NOVEMBER 18, 2005
PAGE NO.: 1 OF 1
PRODUCT: 1206SFF100FM/63
Specification Status: Released

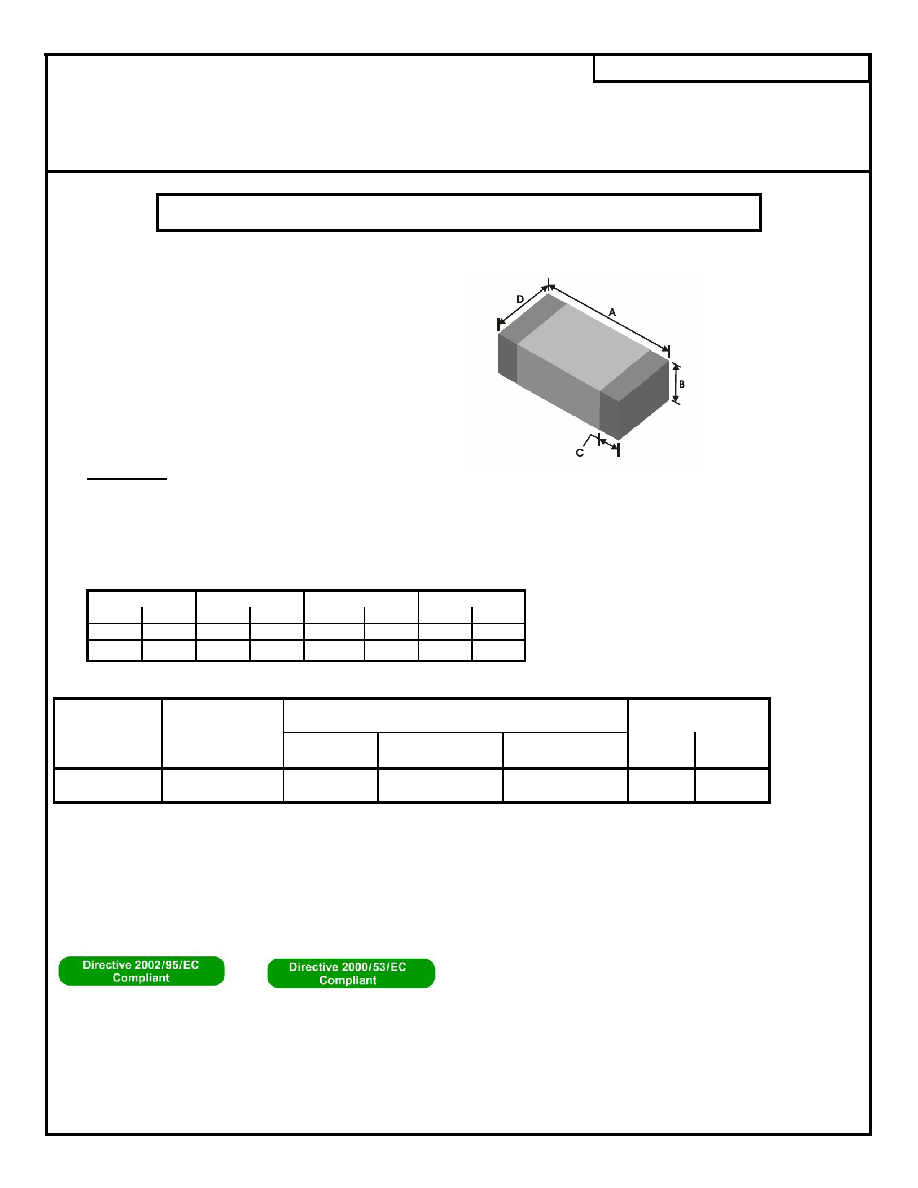

TABLE I. DIMENSIONS:
A
B
C
D
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
mm:
3.00
3.40
0.90
1.30
0.26
0.76
1.40
1.80
in:
(0.118) (0.134) (0.035) (0.051) (0.010) (0.030) (0.055) (0.071)
TABLE II. PERFORMANCE RATINGS @ 25°C (unless otherwise noted):
RATED
NOMINAL COLD
CLEAR TIME
OPERATING
TEMPERATURE (°C)
CURRENT (A)
DCR ()*
100% of rated
current
250% of rated
current
400% of rated
current
MIN
MAX
1.0
0.220
4 hours min
5 seconds max
0.05 seconds max
-55
125
* Measured at 10% of rated current and 25°C
Agency Recognition:
UL, File E197536
Precedence:
This specification takes precedence over documents referenced herein.
Effectivity:
Reference documents shall be the issue in effect on the date of invitation for bid.
Materials Information
ROHS Compliant
ELV Compliant
2005 Tyco Electronics Corporation. All rights reserved.
Max Electrical Rating at 25°C
Max Voltage: 63VDC
Max Interrupt Current: 50A
Termination Material: Silver, Nickel, Tin
Fuse Element: Silver
Body Material: Glass Ceramic
Marking:
E
E
Part Identification
Indicates 1A device
