Tyco / Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866

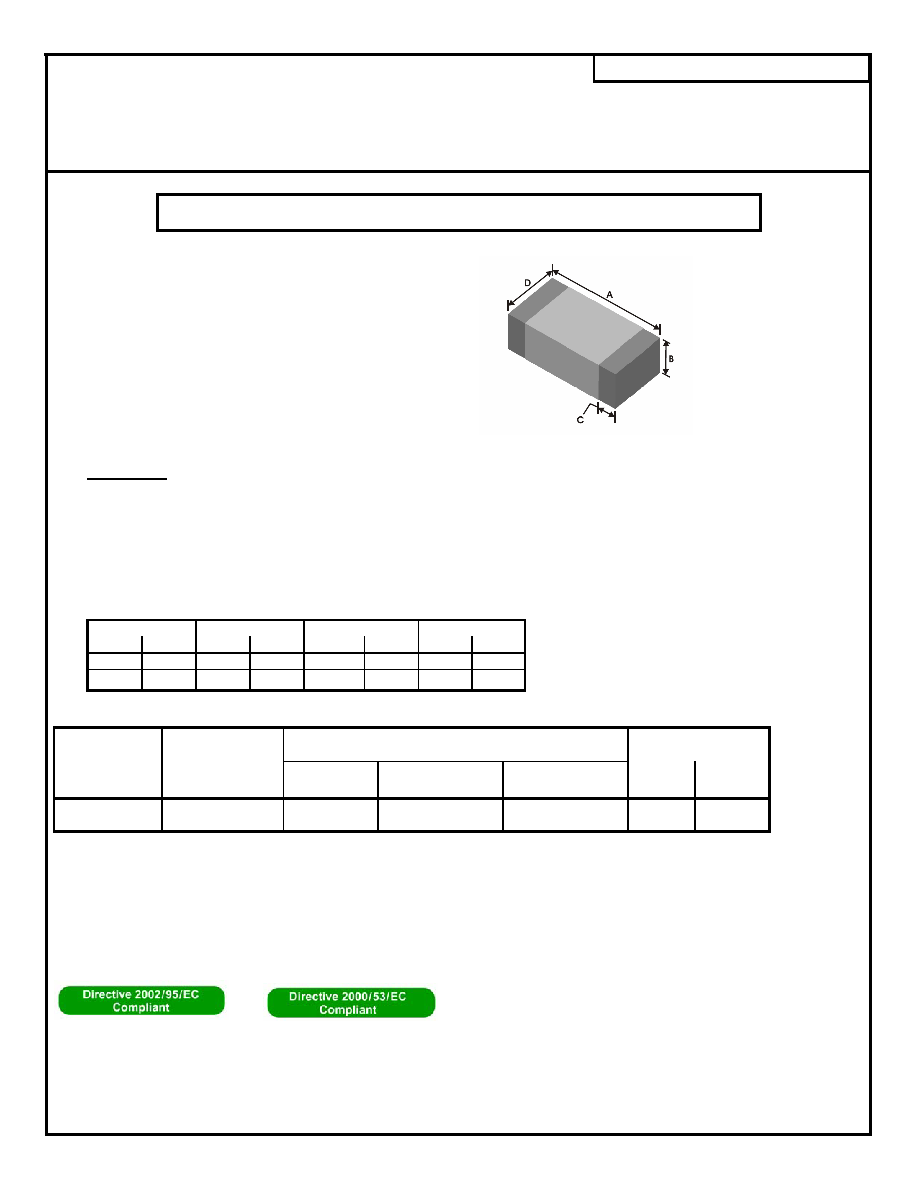

Surface Mount Fuse
Marked
DOCUMENT: SCD26144
PCN: D90664
REV LETTER: C
REV DATE: NOVEMBER 18, 2005
PAGE NO.: 1 OF 1
PRODUCT: 1206SFF800FM/24
Specification Status: Released
TABLE I. DIMENSIONS:
A
B
C
D
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
mm:
3.00
3.40
0.90
1.30
0.26
0.76
1.40
1.80
in:
(0.118) (0.134) (0.035) (0.051) (0.010) (0.030) (0.055) (0.071)
TABLE II. PERFORMANCE RATINGS @ 25°C (unless otherwise noted):
RATED
NOMINAL COLD
CLEAR TIME
OPERATING
TEMPERATURE (°C)
CURRENT (A)
DCR ()*
100% of rated
current
250% of rated
current
400% of rated
current
MIN
MAX
8.0
0.008
4 hours min
5 seconds max
0.05 seconds max
-55
125
* Measured at 10% of rated current and 25
°C
Agency Recognition:
UL, File E197536
Precedence:
This specification takes precedence over documents referenced herein.
Effectivity:
Reference documents shall be the issue in effect on the date of invitation for bid.
Materials Information
ROHS Compliant
ELV Compliant
2005 Tyco Electronics Corporation. All rights reserved.
Max Electrical Rating at 25°C
Max Voltage: 24VDC
Max Interrupt Current: 45A
Termination Material: Silver, Nickel, Tin
Fuse Element: Silver
Body Material: Glass Ceramic
Marking:
R
R
Part Identification
Indicates 8A device
