| 型號： | 1206SFS550FM/24 |
| 元件分類： | 保險絲 |
| 英文描述： | SLOW BLOW ELECTRIC FUSE, 5.5A, 24VDC, SURFACE MOUNT |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 74K |
| 代理商： | 1206SFS550FM/24 |
Tyco / Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866

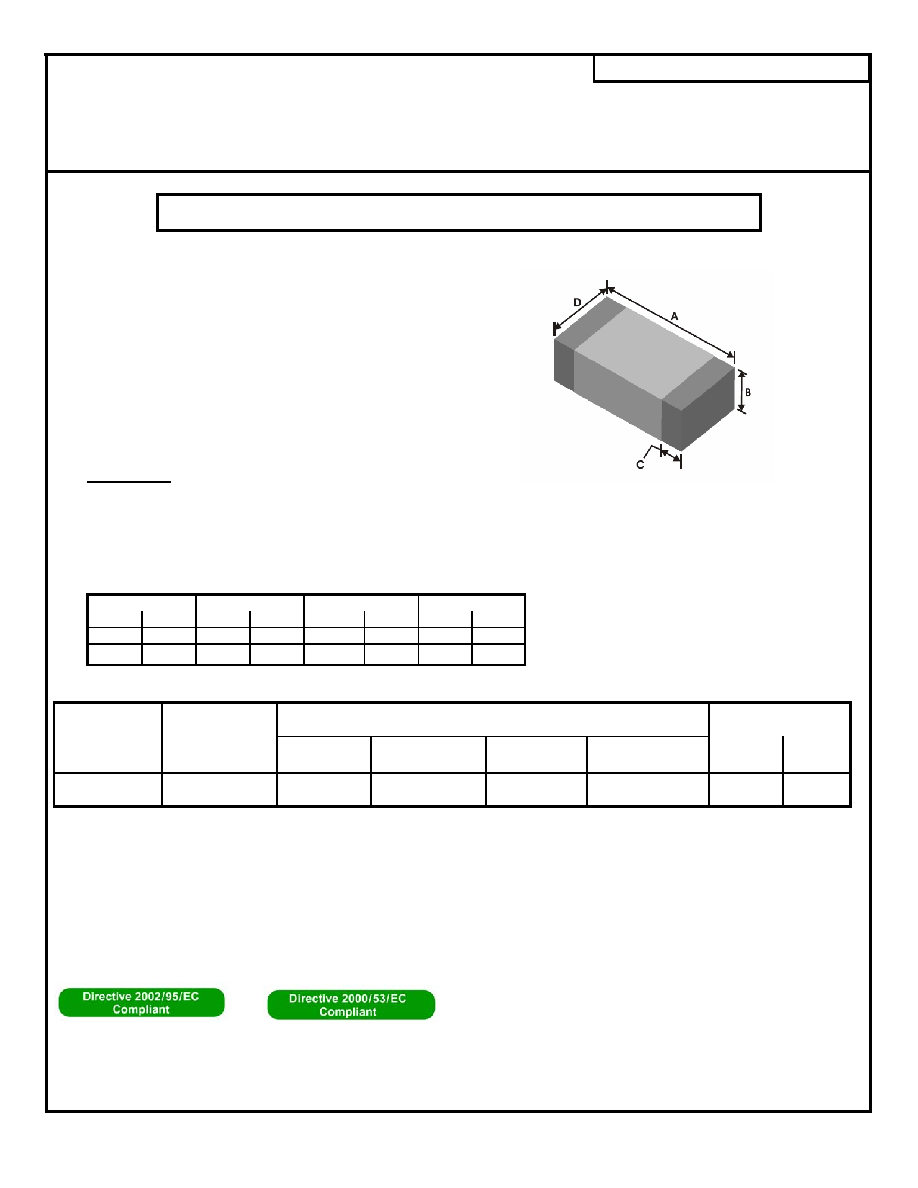

Surface Mount Fuse
Slow Blow, Marked
DOCUMENT: SCD 26351
PCN: RF0163-000
REV LETTER:A
REV DATE: AUGUST 29, 2005
PAGE NO.: 1 OF 1
PRODUCT: 1206SFS550FM/24
Specification Status: Released
TABLE I. DIMENSIONS:
A
B
C
D
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
mm:
3.00
3.40
0.77
1.17
0.26
0.76
1.40
1.80
in:
(0.118) (0.134) (0.030) (0.046) (0.010) (0.030) (0.055) (0.071)
TABLE II. PERFORMANCE RATINGS @ 25°C (unless otherwise noted):
RATED
NOMINAL COLD
CLEAR TIME
@
OPERATING
TEMPERATURE (°C)
CURRENT (A)
DCR ()*
100% of rated
current
200% of rated
current
300% of rated
current
800% of rated
current
MIN
MAX
5.5
0.014
4 hours min
120 seconds max 3 seconds max 0.05 seconds max
-55
125
* Measured at 10% of rated current and 25°C
Agency Recognition:
UL E197536
Precedence:
This specification takes precedence over documents referenced herein.
Effectivity:
Reference documents shall be the issue in effect on the date of invitation for bid.
Materials Information
ROHS Compliant
ELV Compliant
2005 Tyco Electronics Corporation. All rights reserved.
Max Electrical Rating at 25°C
Max Voltage: 24VDC
Max Interrupt Current: 50A
Termination Material: Silver, Nickel, Tin
Fuse Element: Silver
Body Material: Glass Ceramic
Marking:
U
Part Identification
Indicates 5.5A device
U
