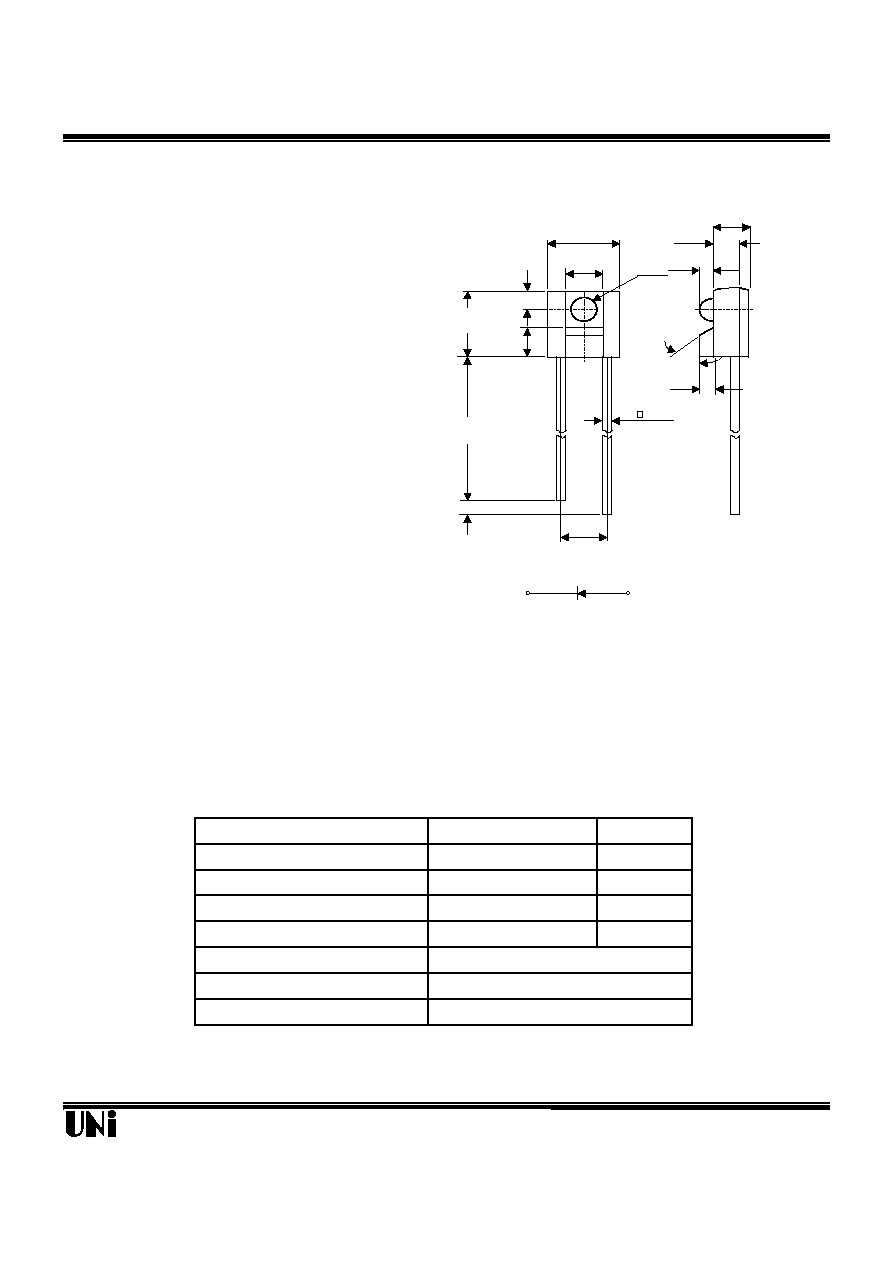

GaAs SIDE LOOK PACKAGE
INFRARED EMITTING DIODE
MIE-144G1
Description
Package Dimensions
The MIE-144G1 is a GaAs infrared emitting diode
molded in clear , lensed side looking package .
The MIE-144G1 provides a broad range of
intensity selection .
Features
l
Selected to specific on-line intensity and
radiant intensity ranges
l
Low cost , plastic side looking package
l
Mechanically and spectrally matched to
The MID-14422 of phototransistor .
Absolute Maximum Ratings
@ TA=25
oC
Parameter
Maximum Rating
Unit
Power Dissipation
75
mW
Peak Forward Current
1
A
Continuos Forward Current
50
mA
Reverse Voltage
5
V
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
02/04/2002
260
oC for 5 seconds
-55
oC to +100oC
-55
oC to +100oC
Unity Opto Technology Co., Ltd.
Notes :
1. All dimensions are in millimeters.(inches).
2. Protruded resin under flange is 1.5 mm (0.059") max.
3. Lead spacing is measured where the leads emerge from the package.
Unit: mm( inches
)
C
A
1.50
(.059)
1.10
(.043)
0.75
(.030)
60°
0.80
(.032)
14.30MIN.
(.563)
4.12
(.162)
(SEE NOTE 3)
1.80
(.071)
1.80
(.071)
4.00±0.08
(.156±.003)
1.22
(.048)
φ 1.50
(.059)
2-
0.5TYP.
(.020)
2.54±0.08
(.100±.003)
1.66±0.08
(.065±.003)
1.0MIN.
(.039)
