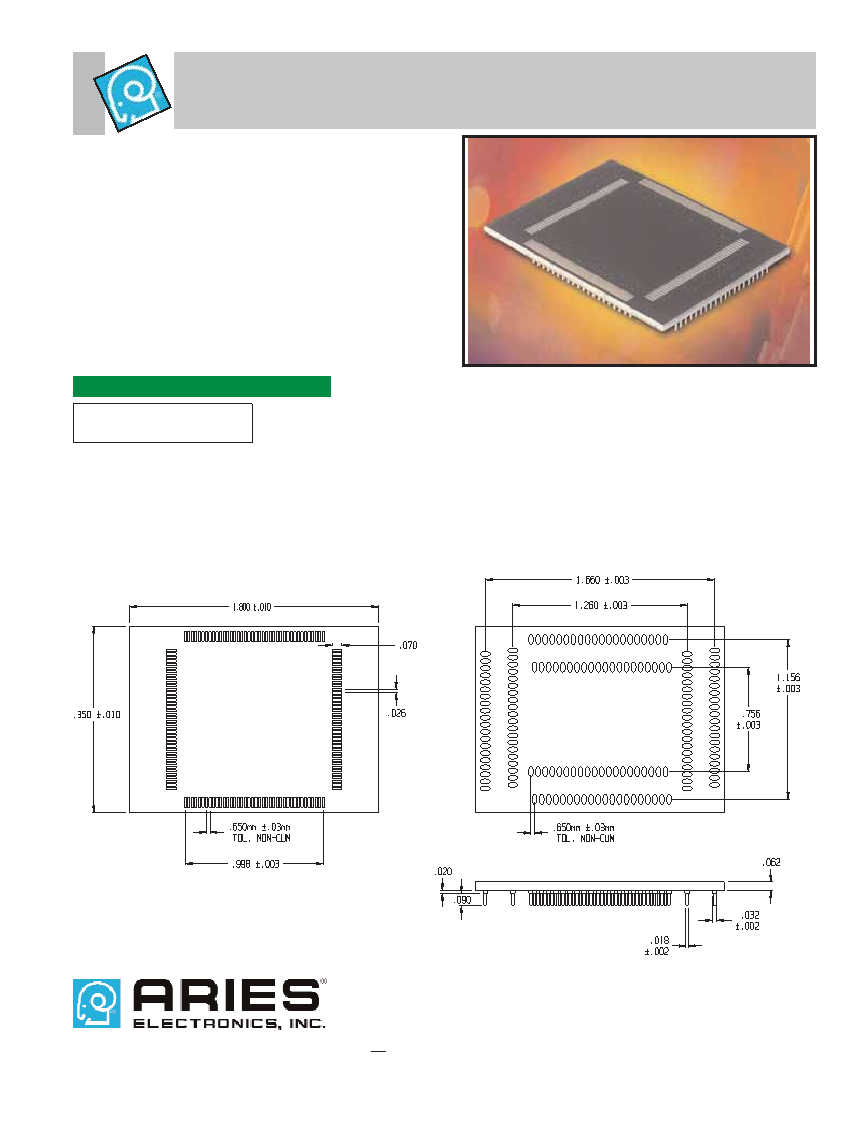

160-306045-10
160 PIN QFP TO 160 PIN QFP THRU HOLE SOCKET PCB FOOTPRINT
Note: Aries specializes in custom design and production. In addition to the stan-
dard products shown on this page, special materials, platings, sizes, and configu-
rations can be furnished, depending on quantities. Aries reserves the right to
change product specifications without notice.
FEATURES:
A cost effective means of replacing unreliable 160 QFP
socket without changing your PCB Layout.
Converts to all soldered connections.
GENERAL SPECIFICATIONS:
Board material is .062 thick FR-4 with 1 oz Copper traces,
both sides.
Pins are Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
Pin plating is 200
μ [5.08μm] min. 93/7 Tin/Lead per MIL-P-
81728 over 100
μ [2.54μm] min. Nickel per QQ-N-290.
Operating temperature = 221°F [105°C].
MOUNTING CONSIDERATIONS:
Suggest PCB hole size = .028 ±.003 [.71 ± .08]. dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
All tolerances ± .005 [.13]
unless otherwise specified
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
http://www.arieselec.com info@arieselec.com
abc
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18098
Rev. A
